CALL TOLL FREE 1-800-DR-OWNER 27
Removing and Replacing the Belts
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE, STOP THE ENGINE AND DISCONNECT THE
SPARK PLUG WIRE(S).
USE ONLY DR BELTS ON YOUR MACHINE. THEY HAVE BEEN THOROUGHLY TESTED AND PROVEN FOR
MANY HOURS OF USE.
To Replace the Blade Belt
1. Remove the black belt guard by unscrewing
the black knob, lifting the cover, and pulling up
and back to remove it.
2. Release the belt tension lever (Figure 15).
3. Remove the belt from the pulley (Figure 16),
and then drop it from the engine pulley below
the machine.
4. To mount the belt, follow the above
procedure in reverse.

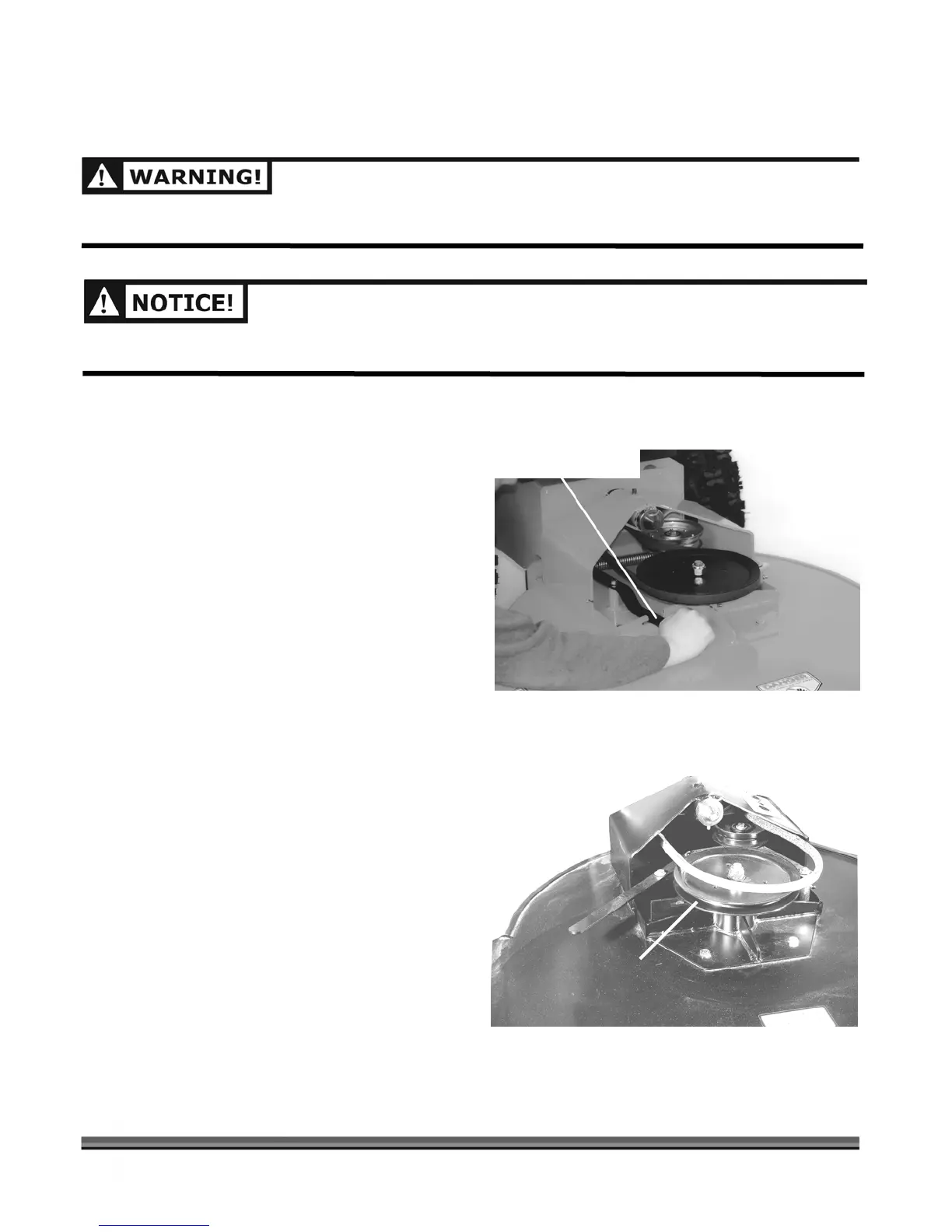

Figure 15
Belt Tension Lever
Belt Removed
Figure 16
