26 DR

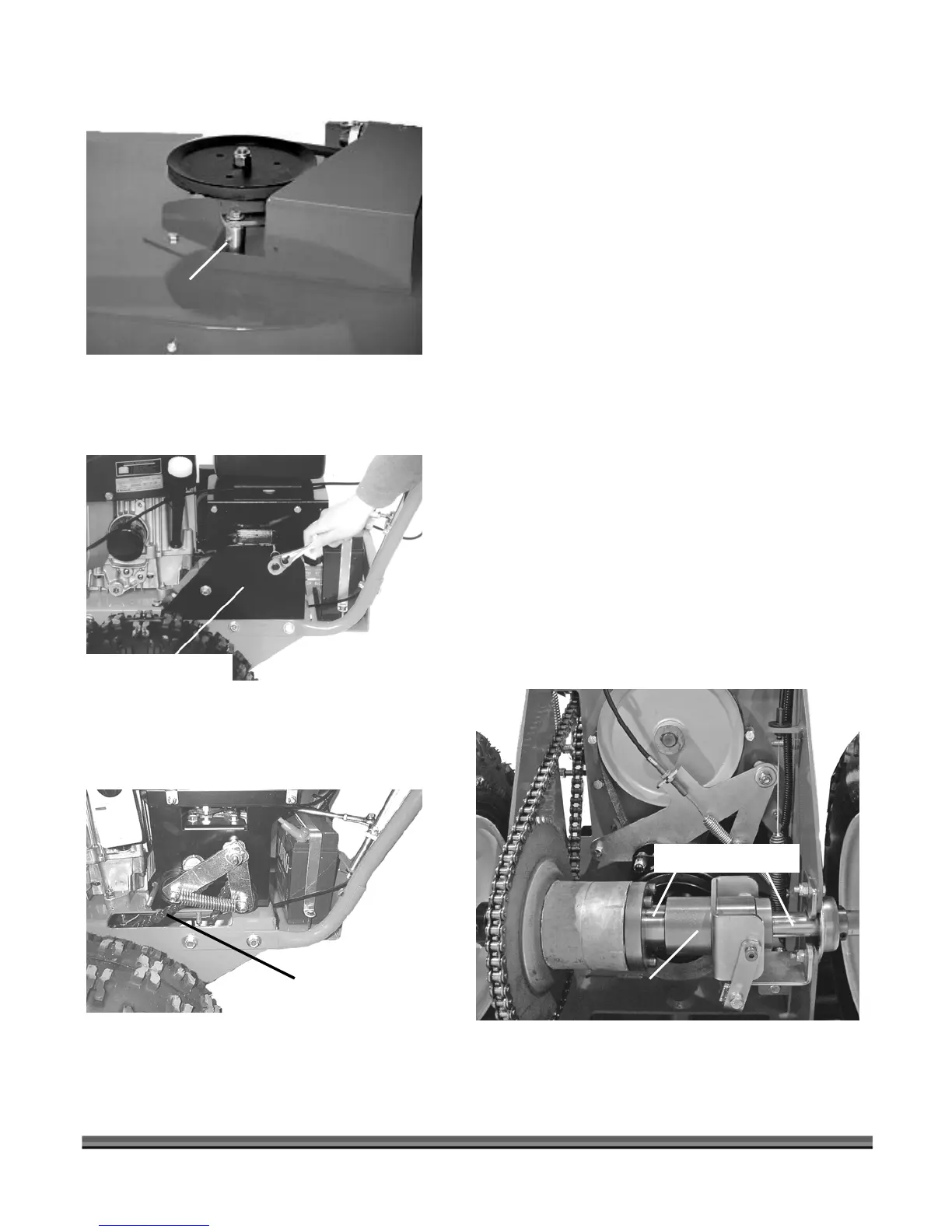

FIELD and BRUSH MOWER

Figure 11

Figure 13

Figure 12

Lubricate Chain

1. There is one grease fitting below the black Belt Guard

that needs lubrication (Figure 11):

• The Belt Idler Arm should have 1-2 pumps of

grease every 25 operating hours.

NOTE: Over greasing will cause grease to leak out of the

seals onto the mower drive belt. Unless

instructed otherwise, pump only until you feel

slight resistance (1-2 pumps).

2. The Drive Chain should be lubricated with FLUID

FILM

lubricant or SAE 30 oil every 25 operating

hours—more often if the machine is operated in

extremely dusty or wet conditions. Remove the

Chain Cover, lubricate the Chain and replace the

cover (Figures 12 and 13).

3. Place the Differential Lock In/Out Lever in the OUT

position.

4. Clean the Lock In/Out Sleeve Shaft of any

accumulated grass and debris with a cloth and

lubricate the Shaft using FLUID FILM

lubricant

or SAE 30 oil (Figure 14).

5. Move the Differential Lock In/Out Lever back and

forth a few times to distribute the lubricant on the

Lock In/Out Sleeve Shaft.

Belt Idler Arm Grease Fitting

Remove Chain Cover

Figure 14

Lubricate Shaft here

Lock In/Out Sleeve
