CALL TOLL FREE 1-800-DR-OWNER 29

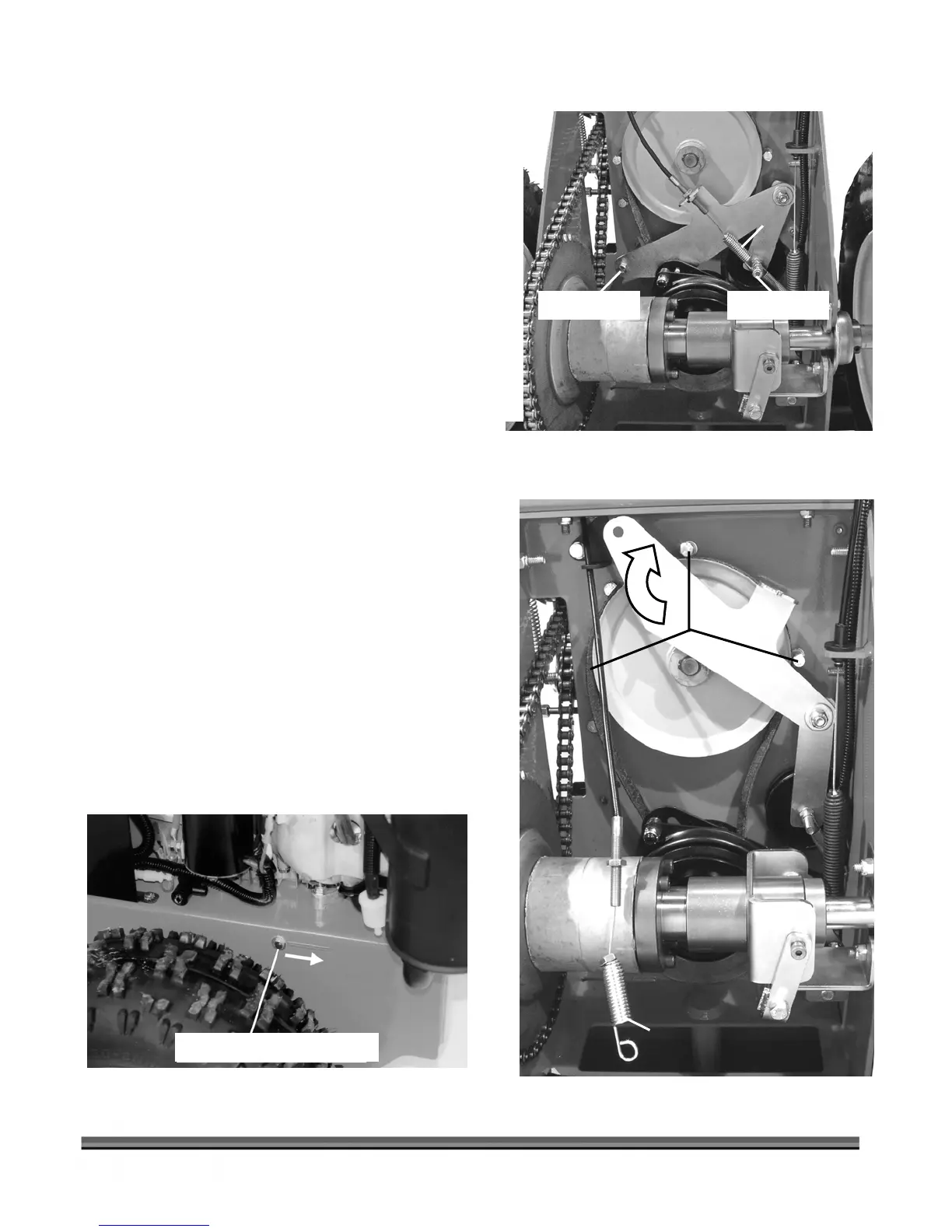

Figure 20
Loosen Bolt and Slide Back
3 Belt Guides
Spring
Remove Nut
5. Remove the Bolt on the Clutch Bracket and the
Nut on the Clutch Drive Spring (Figure 18).
6. Remove the Clutch Drive Spring
(Figure 19).
7. Lift and swing the Clutch Bracket out of the way
(Figure 19).
8. Remove the three (3) Belt Guides (Figure 19).
9. Loosen the belt Retainer Bolts on the outside of
the frame (one on each side) and slide the
retainer back (Figure 20).
10. Remove the Belt.
11. To mount the new Belt, reverse the above
procedure.
Remove Bolt
Figure 18
Figure 19
Clutch Drive Spring Removed
Clutch
Bracket
