20 Quick reference guide | Atlan SW 2.0n

Operating concept

3.1.3 Therapy bar

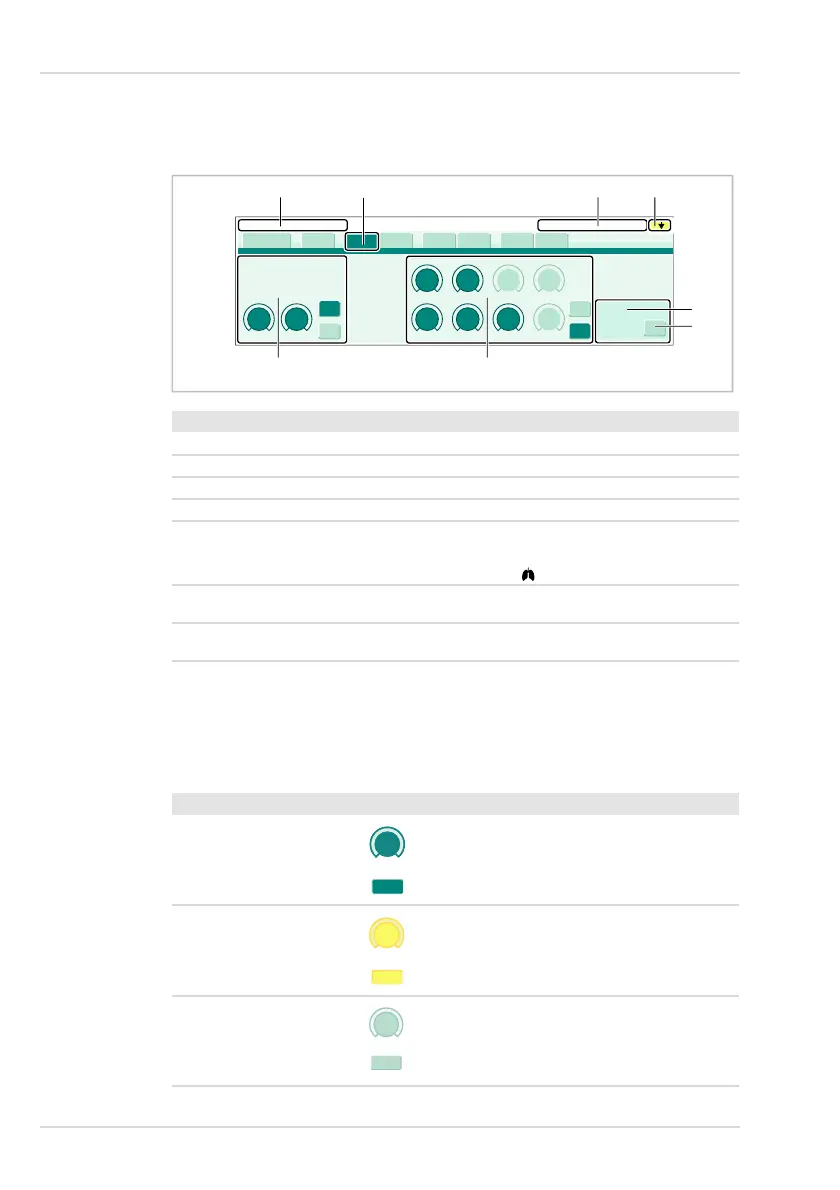

The following illustration shows the expanded therapy bar for the electronically controlled

gas mixer:

3.2 Color concept

3.2.1 Colors of the control elements

Colors denote the availability of functions and settings.

3.2.1.1 Therapy controls and buttons

34752

No. Designation

1 Name of active ventilation mode

2 Tabs

3 Notification field

4 Buttons to expand and collapse the therapy bar

5 Field with additional information:

– More values

– Spontaneous breathing activity of the patient

6 Therapy controls for ventilation parameters and buttons for synchronizing the

breaths

7 With electronically controlled gas mixer:

Therapy controls and buttons for fresh-gas delivery

2341

Color Example Meaning

Dark green Available element:

function activated

Yellow Selected element:

not yet confirmed with rotary

knob

Light green Available element:

function not activated
