Preparation
Assembly

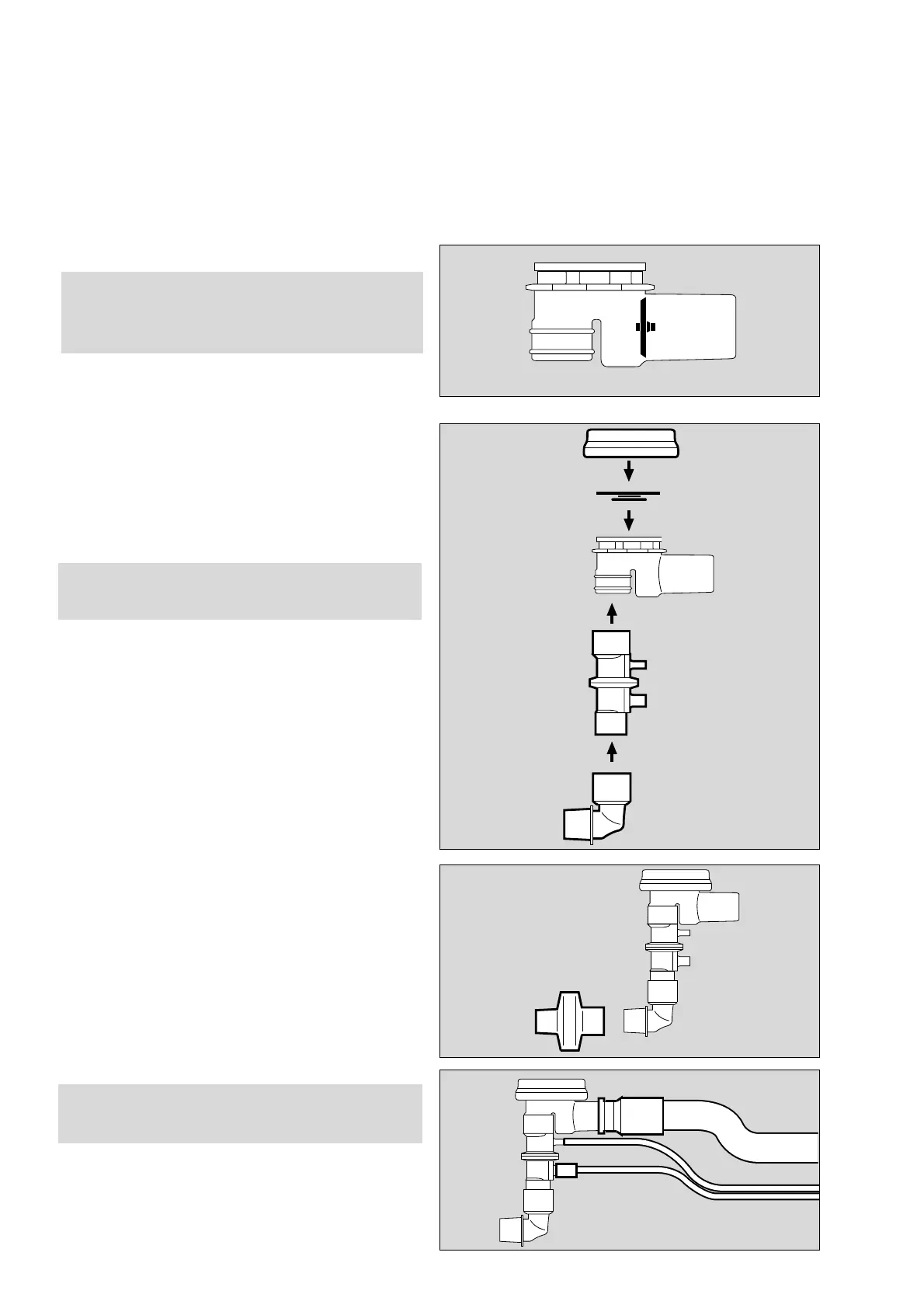

Attaching the breathing valve
1 The rubber disc in the housing should not be
removed, damaged or bent, otherwise impaired
valve operation will occur, putting the patient
at risk.
2 Place diaphragm in breathing valve – ensure that it is
inserted correctly.
3 Fit cover and turn approx. 90° clockwise = lock.
4 Plug flow sensor into breathing valve; note preferred
position (groove).
5 Push angled connector onto flow valve.
The angled connector must always be used,
otherwise the flow measurement may be
inaccurate!
When using a bacterial filter
● Always connect the bacterial filter to the angled
connector.
6 Connect ventilation hose to breathing valve.
Do not use electrically conductive hoses, as these
can endanger both the ventilator and the assistant
during defibrillation!
7 Connect flow measuring hoses to sockets on flow
sensor – note different diameters.
Preparation
Assembly
20
3
2
4
5
6
7
1
01929033020290330212903302229033
