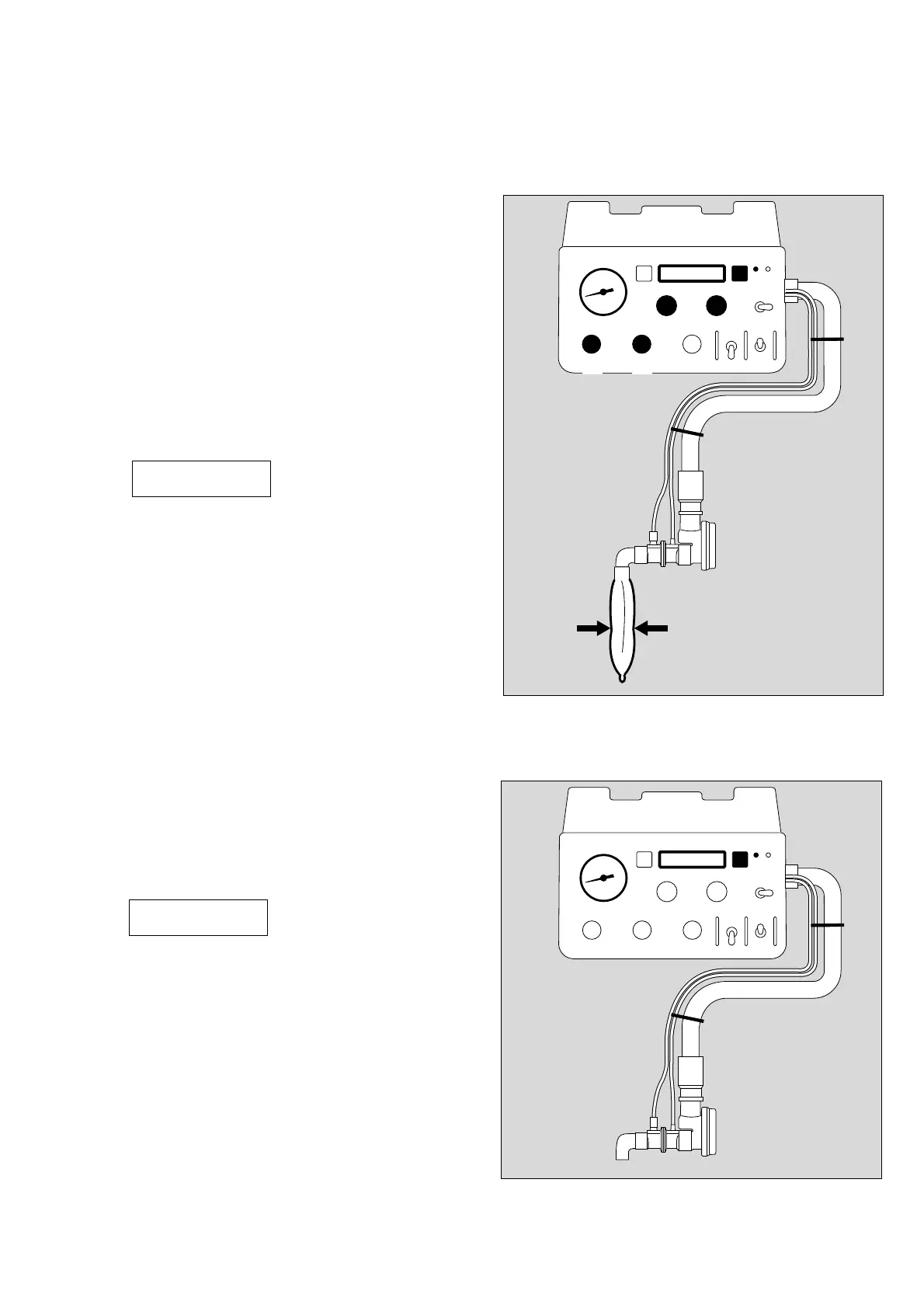

Checking »Paw high« alarm
1 Set »VT« knob to 0.5 L.
2 Set »Freq.« knob to 12 1/min.
3 Set »TI : TE« knob to 1 : 2.
4 Set »Pmax« knob to 40 mbar.
● Keep test lung compressed and watch pressure
gauge:
● At an airway pressure of 36 to 40 mbar, the ventilator
should switch over to expiration and the test lung
deflates.
5 The red alarm indicator flashes and the following
message appears on the display:
The intermittent tone sounds.
● Release test lung.
● The intermittent tone ceases.
6 Press »g Reset« to clear the display.
Checking »Paw low« alarm
Use the same settings as above.
● Disconnect test lung from breathing valve.
5 The red alarm indicator flashes after approx.
20 seconds and the following message appears on
the display:
The intermittent tone sounds.
● Reconnect test lung.
● The intermittent tone ceases after approx. 25 seconds.
6 Press »g Reset« to clear the display.
31
Checking readiness for operation
Checking "Paw high" alarm
Checking "Paw low" alarm
Paw high
Paw low
