Dräger PIR 7200

40
Accessories
USB PC Adapter PIR 7000
(Part no. 68 11 663)

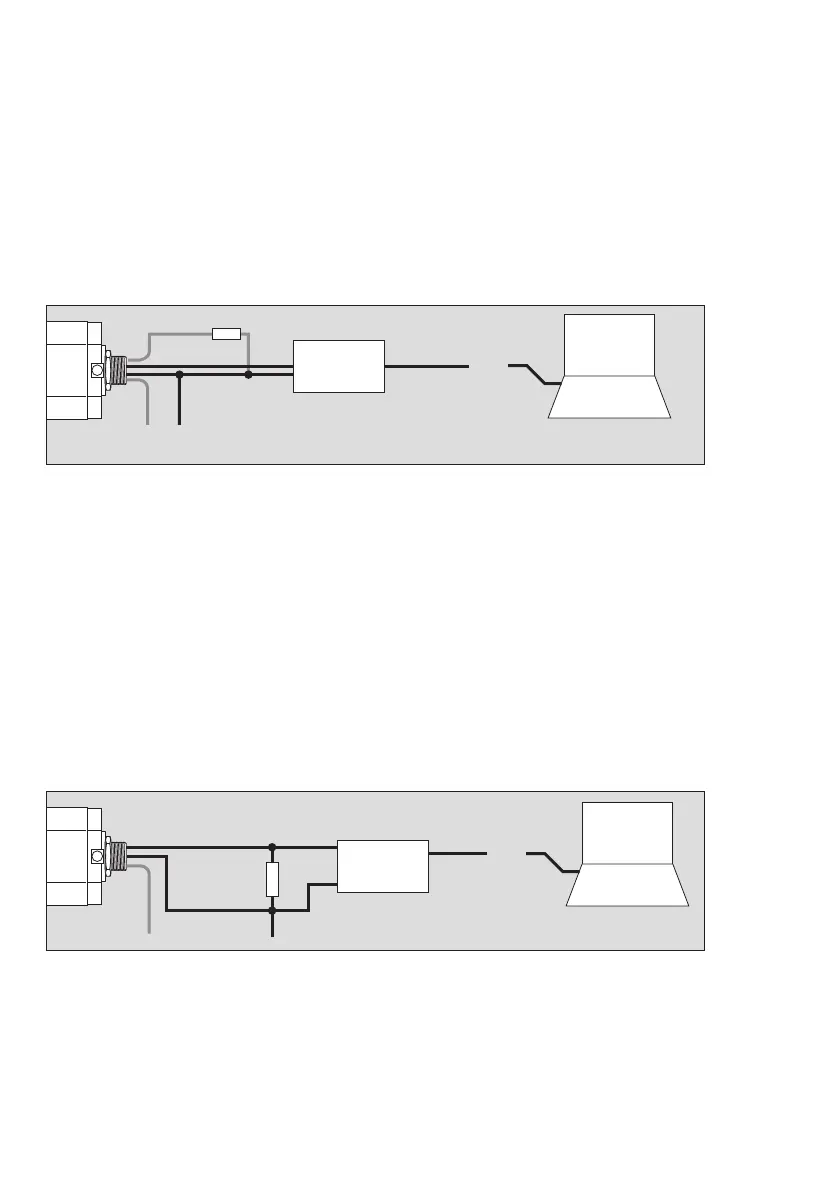

Connection diagram:
R
S
: 230 to 500 Ω
HART
®
Modem
Connection diagram:
R
S
: 230 to 500 Ω
— USB PC adapter PIR 7000 for communication of the gas transmitter with Dräger
CC Vision GDS software.
— Maximum distance between USB-PC adapter connection and Dräger PIR 7000 /7200:
25 m (82 feet).
— HART
®
modem for communication of the gas transmitter with Dräger CC-Vision GDS
software. Any conventional HART
®
modem is suitable (contact Dräger Safety for further
information).
Only for devices with integrated HART
®
interface.
02723886_01_en.eps
white
red
black
+ –
9 ... 30 V
USB
USB PC-adapter PIR 7000
PC
R
S
brown
02823886_01_en.eps
4 ... 20 mA
+ 13 ... 30 V –
R
S
COM
HART
®
modem PIR 7000
PC
brown
red
black
