Dräger PSS BG 4 plus

Draetger BG4 Iso Training 3/12

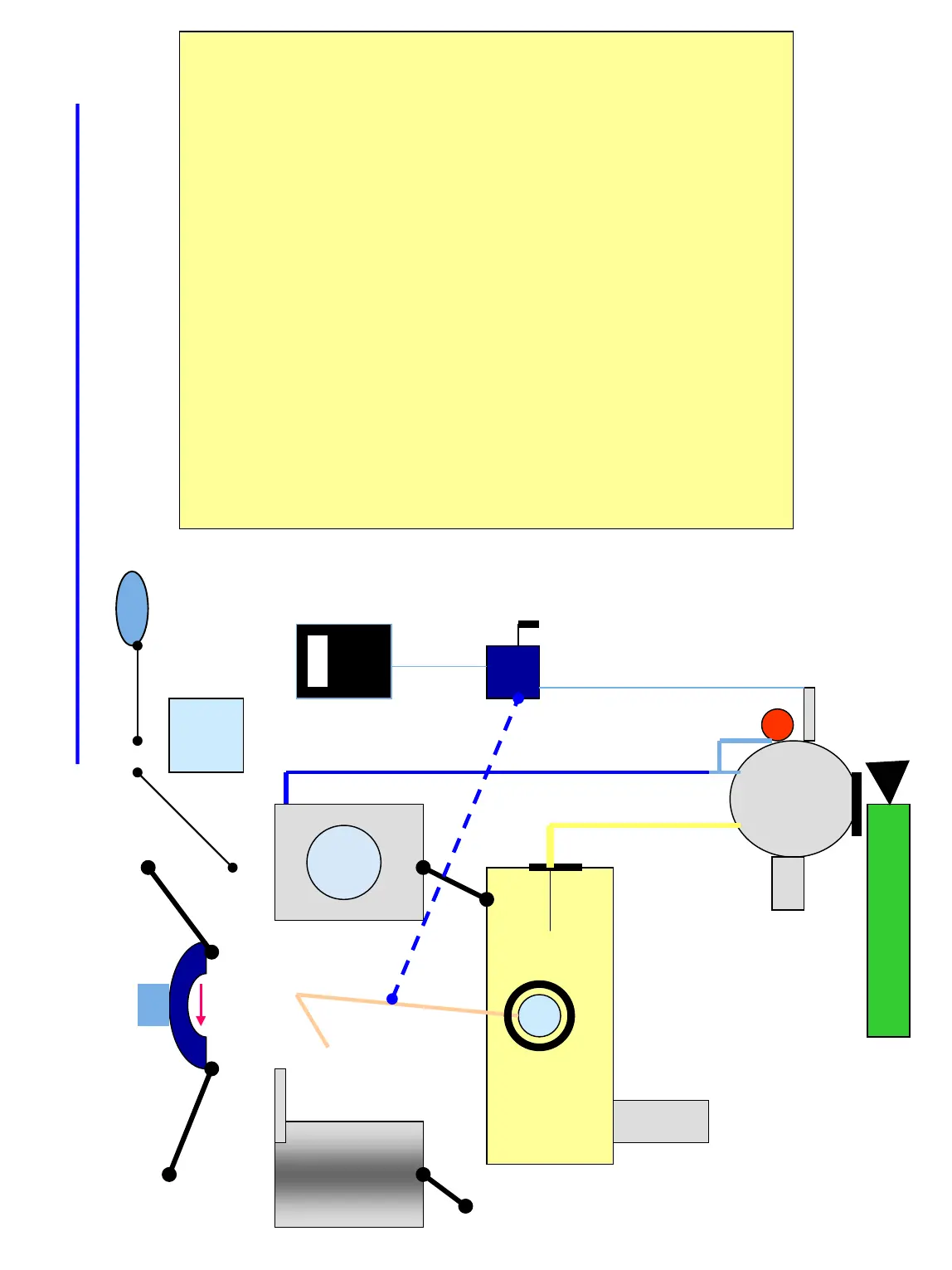

PSS BG4 – Low Pressure Leak Isolation
CO2 SCRUBBER
COOLER
PRESSURE
REDUCER
with BYPASS
BREATHING BAG
OXYGEN
MINIMUM
VALVE
DRAIN
VALVE
RELIEF
VALVE
MP
RELIEF
VALVE
CONNECTOR PIECE
SENTINEL
M E D P R E S S U R E
SWITCH BOX
WITH FILTER
PRESSURE
TRANSDUCER
C O N S T A N T D O S A G E
 Leave test set up as in Fig 3  Disconnect CO2 Scrubber from
Breathing Bag and plug
bag
opening. (X)
 Refer to Fig 4  TEST  PASS – Check/Clean
CO2 Scrubber
 FAIL – Continue wi
th isolation
testing
T
T
O
mbar
POSITIVE PRESSURE APPLIED
CONNECTOR PLUG
FROM KIT
x
CONNECTOR
CAP
Fig 4
Page 85
