LSE01 LoRaWAN Soil Moisture & EC Sensor User Manual 19 / 30
2.7.6 KR920-923 (KR920)
Default channel:
922.1 - SF7BW125 to SF12BW125
922.3 - SF7BW125 to SF12BW125
922.5 - SF7BW125 to SF12BW125
Uplink: (OTAA mode, channel added by JoinAccept message)
922.1 - SF7BW125 to SF12BW125
922.3 - SF7BW125 to SF12BW125
922.5 - SF7BW125 to SF12BW125
922.7 - SF7BW125 to SF12BW125
922.9 - SF7BW125 to SF12BW125
923.1 - SF7BW125 to SF12BW125
923.3 - SF7BW125 to SF12BW125
Downlink:
Uplink channels 1-7(RX1)
921.9 - SF12BW125 (RX2 downlink only; SF12BW125 might be changed to SF9BW125)
2.7.7 IN865-867 (IN865)
Uplink:
865.0625 - SF7BW125 to SF12BW125
865.4025 - SF7BW125 to SF12BW125
865.9850 - SF7BW125 to SF12BW125
Downlink:
Uplink channels 1-3 (RX1)
866.550 - SF10BW125 (RX2)
2.8 LED Indicator
The LSE01 has an internal LED which is to show the status of different state.
➢ Blink once when device power on.
➢ Solid ON for 5 seconds once device successful Join the network.
➢ Blink once when device transmit a packet.

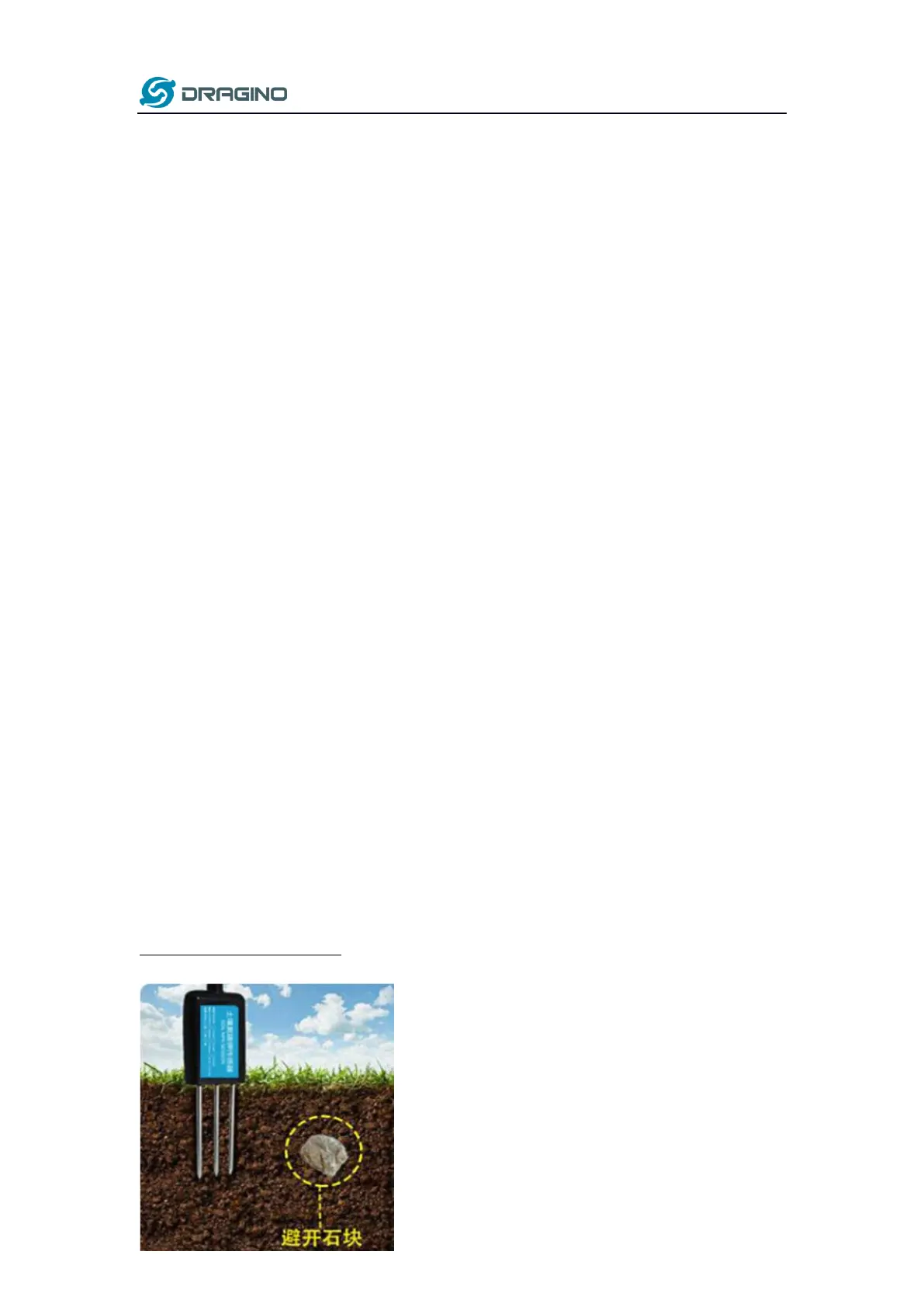

2.9 Installation in Soil
Measurement the soil surface
Choose the proper measuring position. Avoid the
probe to touch rocks or hard things. Split the
surface soil according to the measured deep.
Keep the measured as original density. Vertical
insert the probe into the soil to be measured.
Make sure not shake when inserting.
