User Manual for LoRaWAN End Nodes - RS485-LN – RS485 to LoRaWAN Converter User Manual

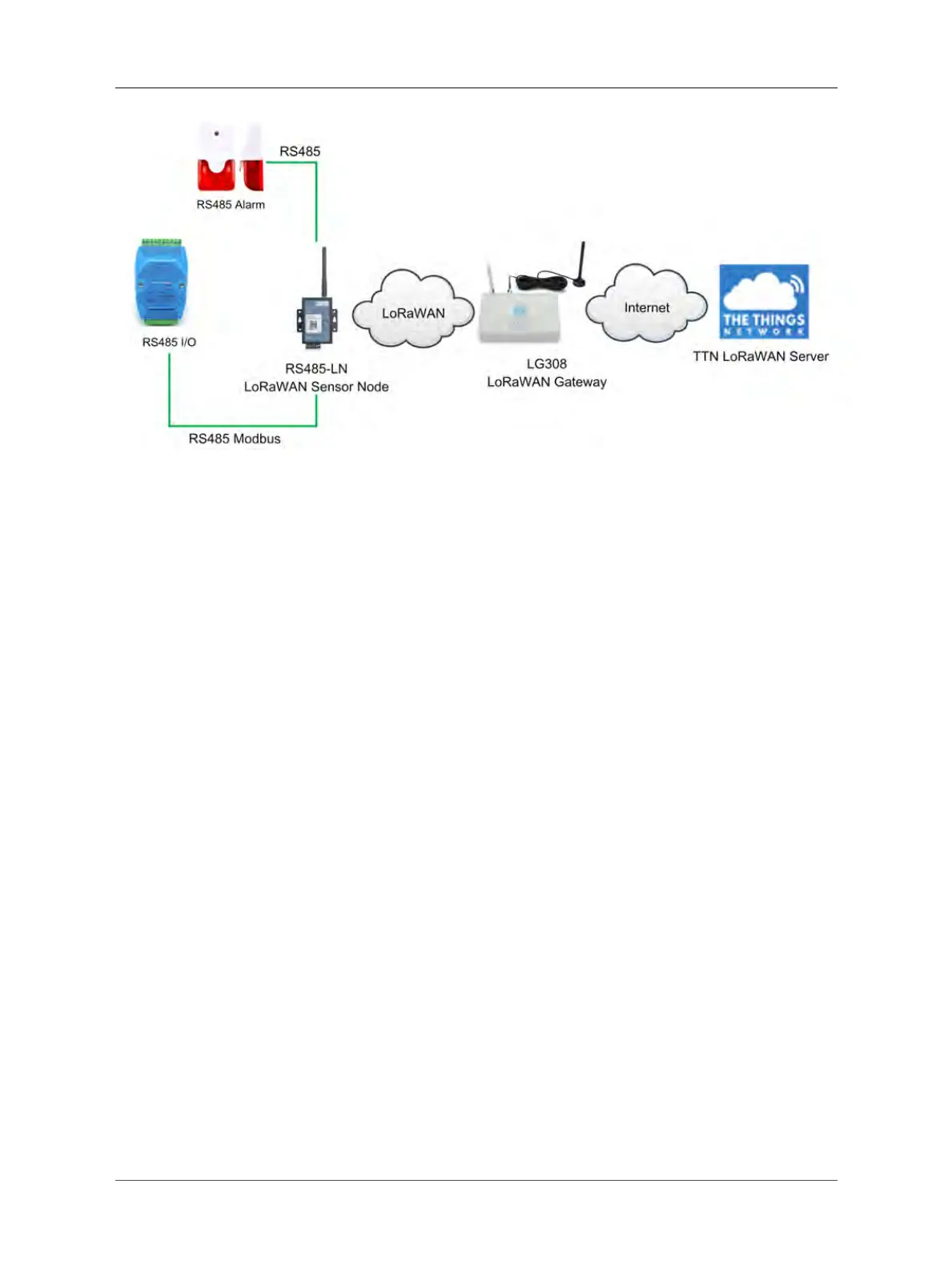

The RS485-LN in this example connected to two RS485 devices for demonstration, user can connect to other
RS485 devices via the same method. The connection is as below:
485A+ and 485B- of the sensor are connected to RS485A and RA485B of RS485-LN respectively.
Page 8 / 38 - last modified by Bei Jinggeng on 2022/07/08 16:50
