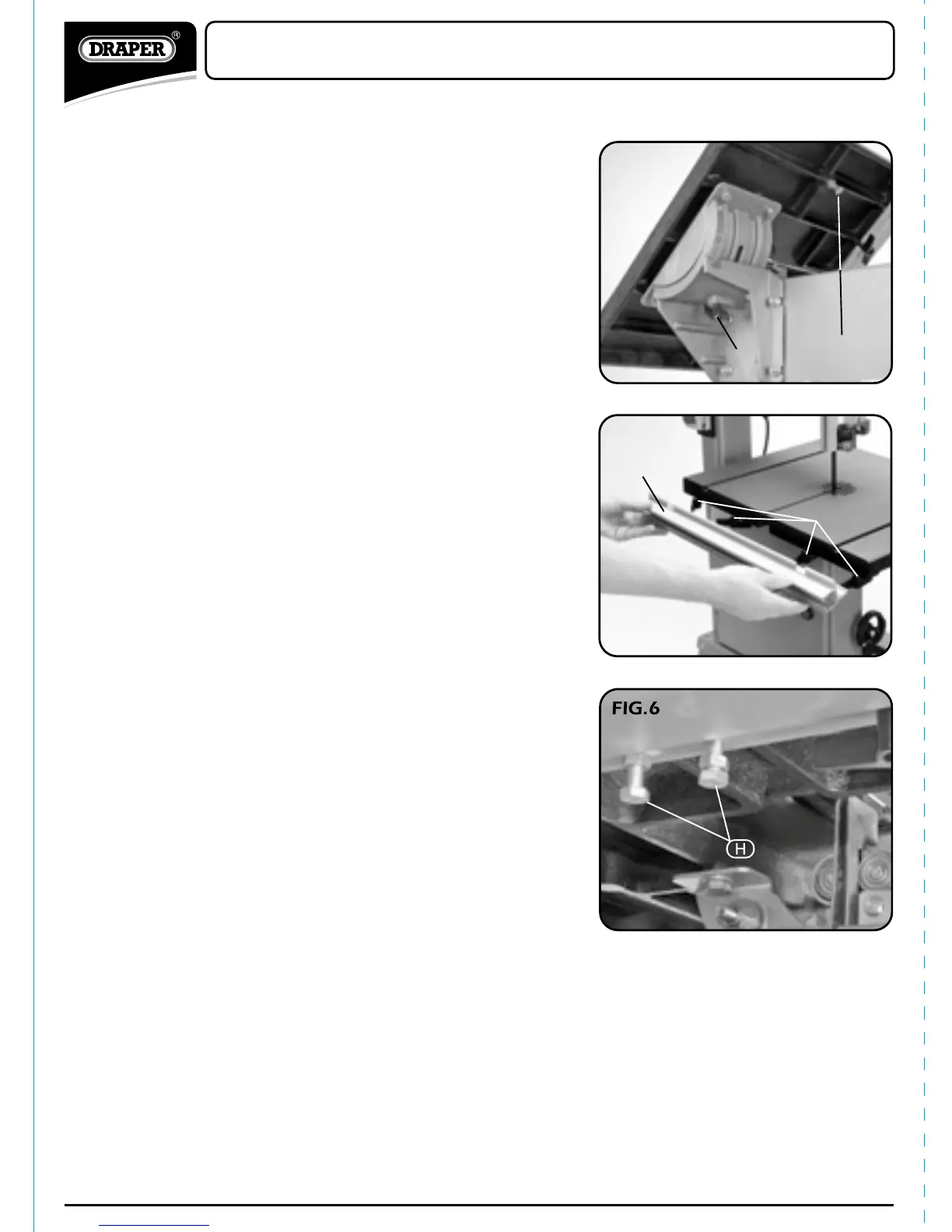

- GRADUATED SCALE (Fig5-6.):
Place the measuring scale )on the front edge of
the table and tighten in place with the four knobs *,
located on the underside of the table.
- LEVELLING THE TABLE (Fig4.):
The saw table can be tilted up to 45º. To tilt, loosen
the knob 'on the cradle. A stop (on the
underside of the table rests on the lower wheel housing
when the table is at 90º with the blade. Loosen the lock
nut and turn the bolt in or out, as required, to change
angle against the sawband.
)
FIG.5
FIG.4
ASSEMBLY
*
(
'
✗
BS315 only
NOTE: With a straight edge, check both halves of the
table remain level across the blade slot. If necessary
adjust the two bolts + on the under side of the rip
fence rail to bring it level again. When adjustment is
complete tighten the lock nuts to prevent movement.
- 9 -
