- NOTE: Remove the plug from the socket before
carrying out adjustment, servicing or maintenance.
WARNING: Risk of injury ! Seek assistance.

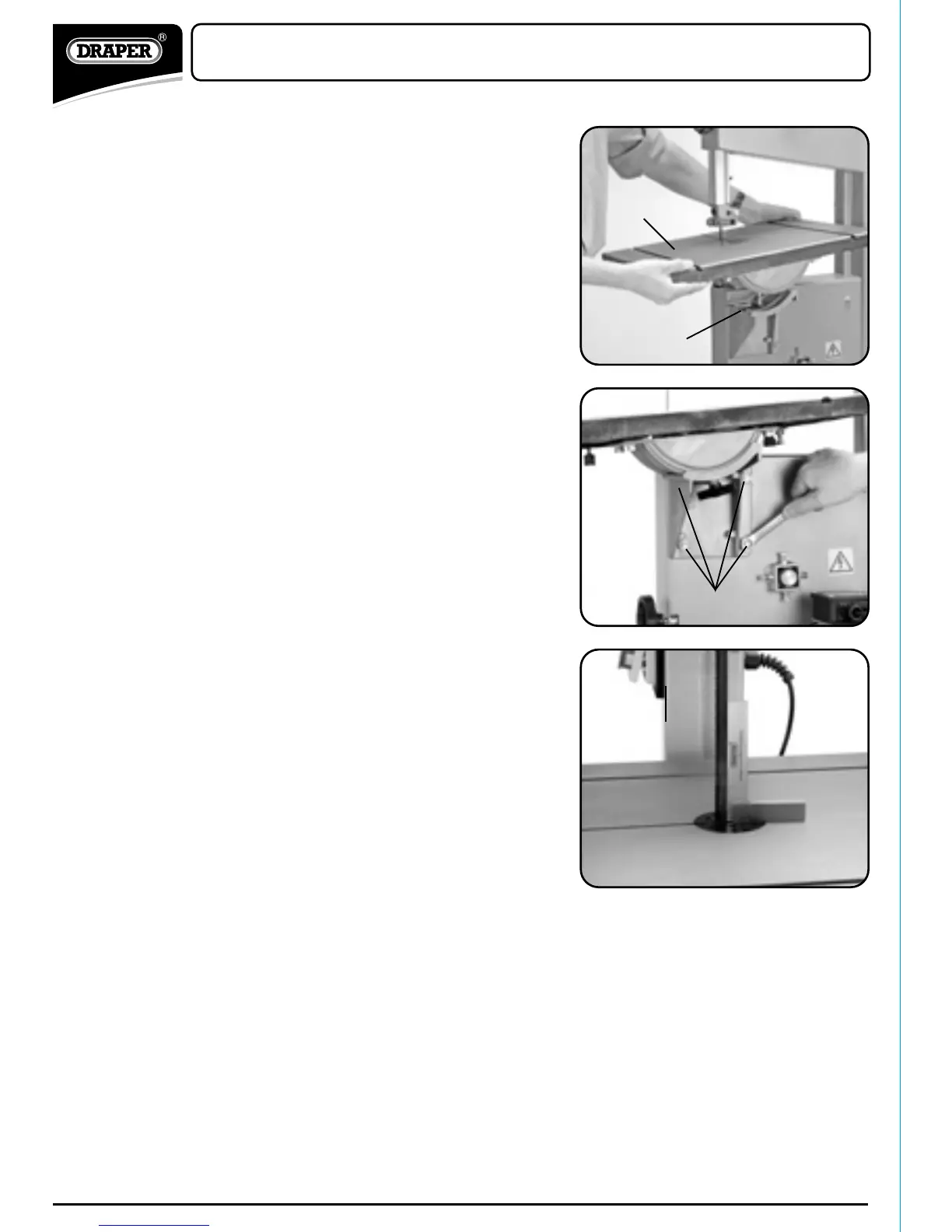

- INSTALLING THE TABLE (Fig1.):
NOTE: It may be necessary to remove the graduated
rip fence rail before attempting to fit the table.
Place the table $on to the cradle %and align the
hole underneath to line up with cradle. Secure using
the four hexagon head screws. Secure using the four
hexagon head screws and washers provided.
$
%
FIG.1
ASSEMBLY
- SQUARING UP THE TABLE (Fig2-3.):
With the blade guardin the highest position, place an
engineers square on the table resting it against the back
of the blade to check the alignment. If it is square no
adjustment is required. To adjust, loosen off the four
fastening bolts & that hold the lower support of the
cradle. Align the table using the engineers square,
tighten all four bolts.
NOTE: Ensure the saw band is central to the table and
the insert.
FIG.3
FIG.2
&
