D-1000B Heater Operations & Maintenance
8. ILLUSTRATED PARTS BREAKDOWN

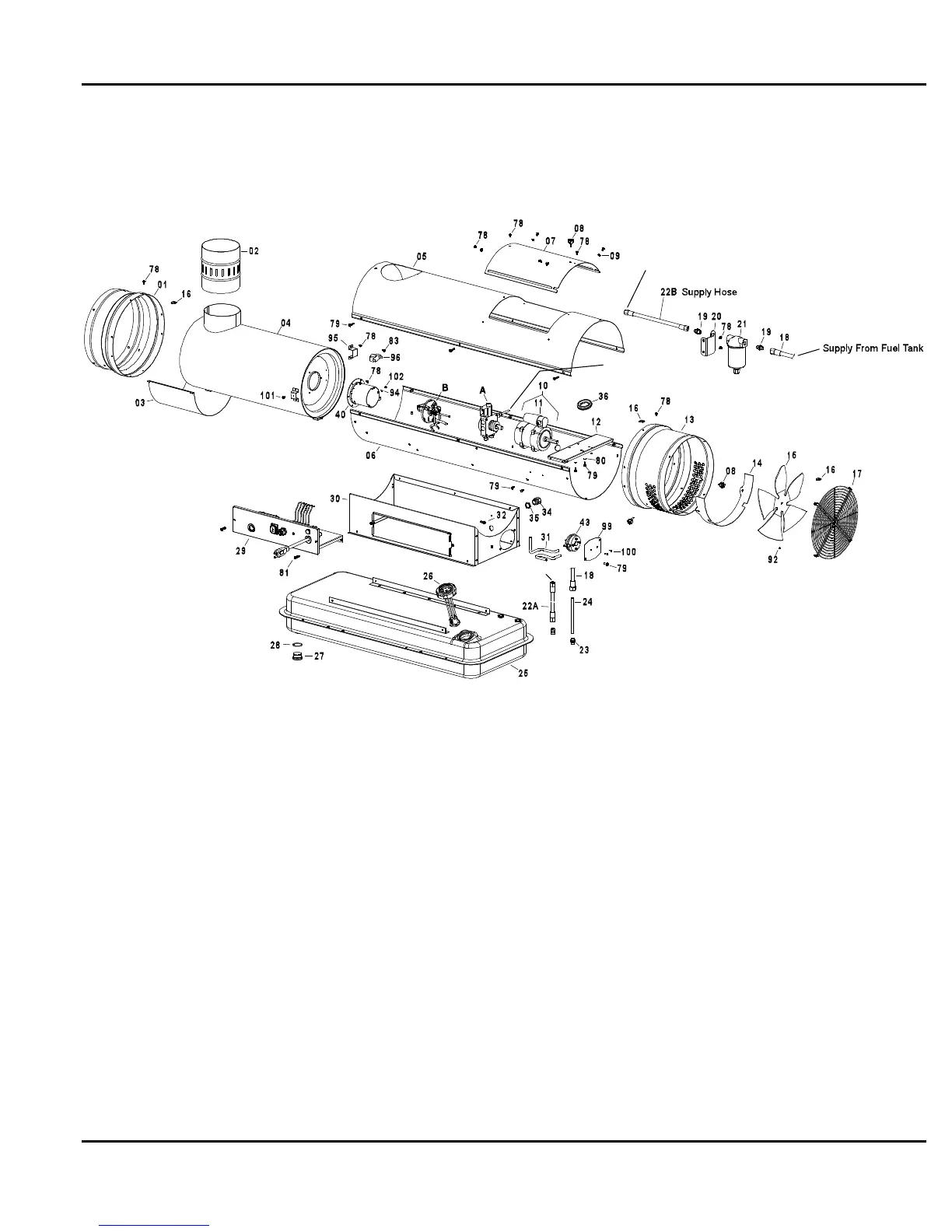

8.1 D-1000B Heater Exploded Detail
To Fue l Pump
Return From Fuel
Pump to Tank
From Fuel Pump
to Burner Head
Figure 8-1 - D-1000B Heater Detail
ILLUSTRATED PARTS BREAKDOWN 8-1 DHS SYSTEMS LLC
