D-1000B Heater Operations & Maintenance
8.7 Heater Sub-Assembly, Skid Body and Heater
2
3
4
5
5
6
7
8
1

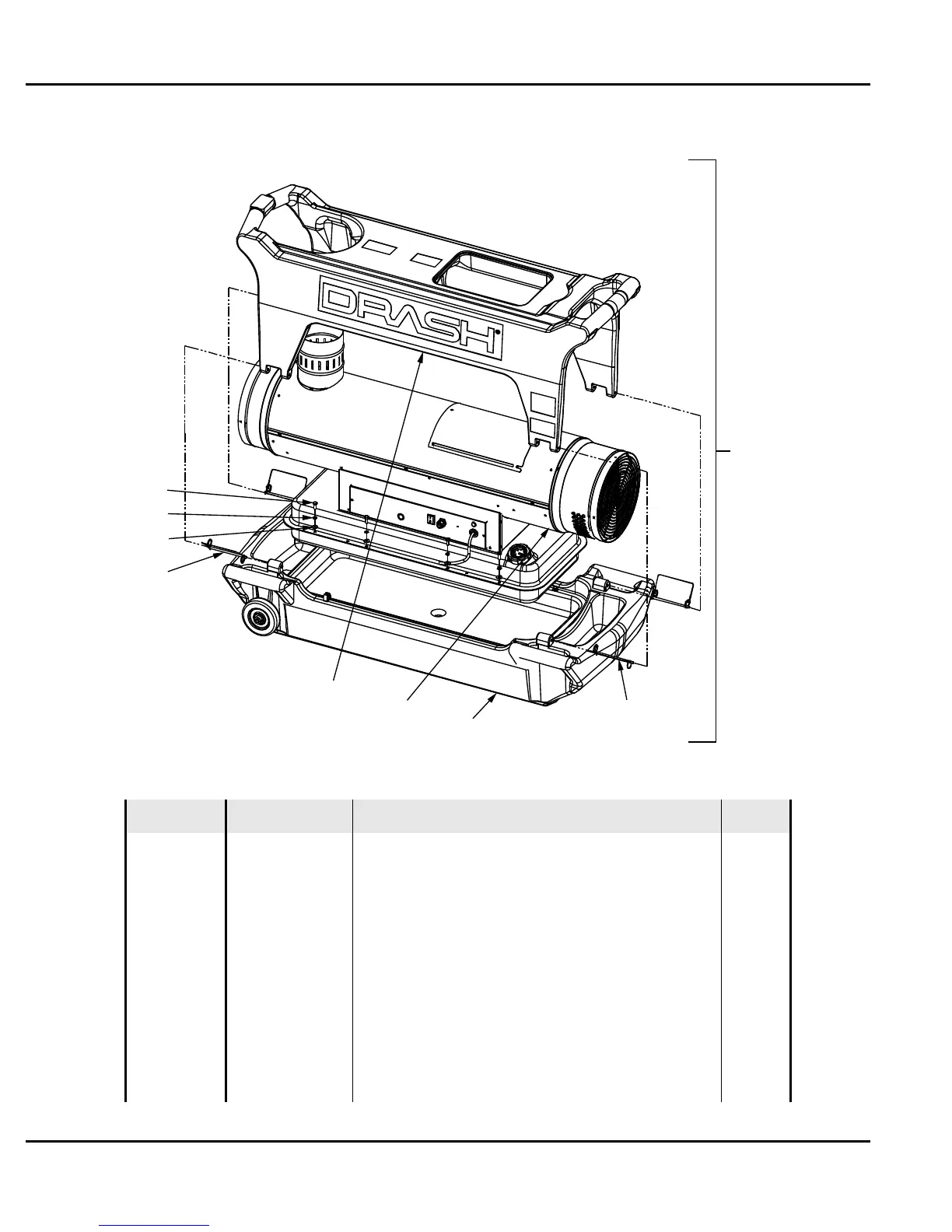

Figure 8-7 – Heater, Skid Body and Heater Sub-Assembly Detail
ITEM DHS PN DHS PART DESCRIPTION Qty.
1 1002814 Heater, D-1000B, BTU 100,000 1
2 1002815 Skid Body Assembly, Heater, D-1000B 1
3 1002774 Heater, D-1000B, BM2 1
4 1002777 Cover, Top, Heater D-1000B 1
5 1002806 Pin, Quick Release, 6”L 4
6 RD300145 Washer, Flat, ¼”, 18-8 SS 8
7 RD300495 Washer, Lock, ¼”, 18-8 SS 8
8 RD300150 Bolt, Hex Hd, ¼”-20 x ¾”L, 18-8 SS 8
ILLUSTRATED PARTS BREAKDOWN 8-10 DHS SYSTEMS LLC
