D-1000B Heater Operations & Maintenance
8.8 Skid Body Assembly, Heater D-1000B
1
2
3
4
5
6
7

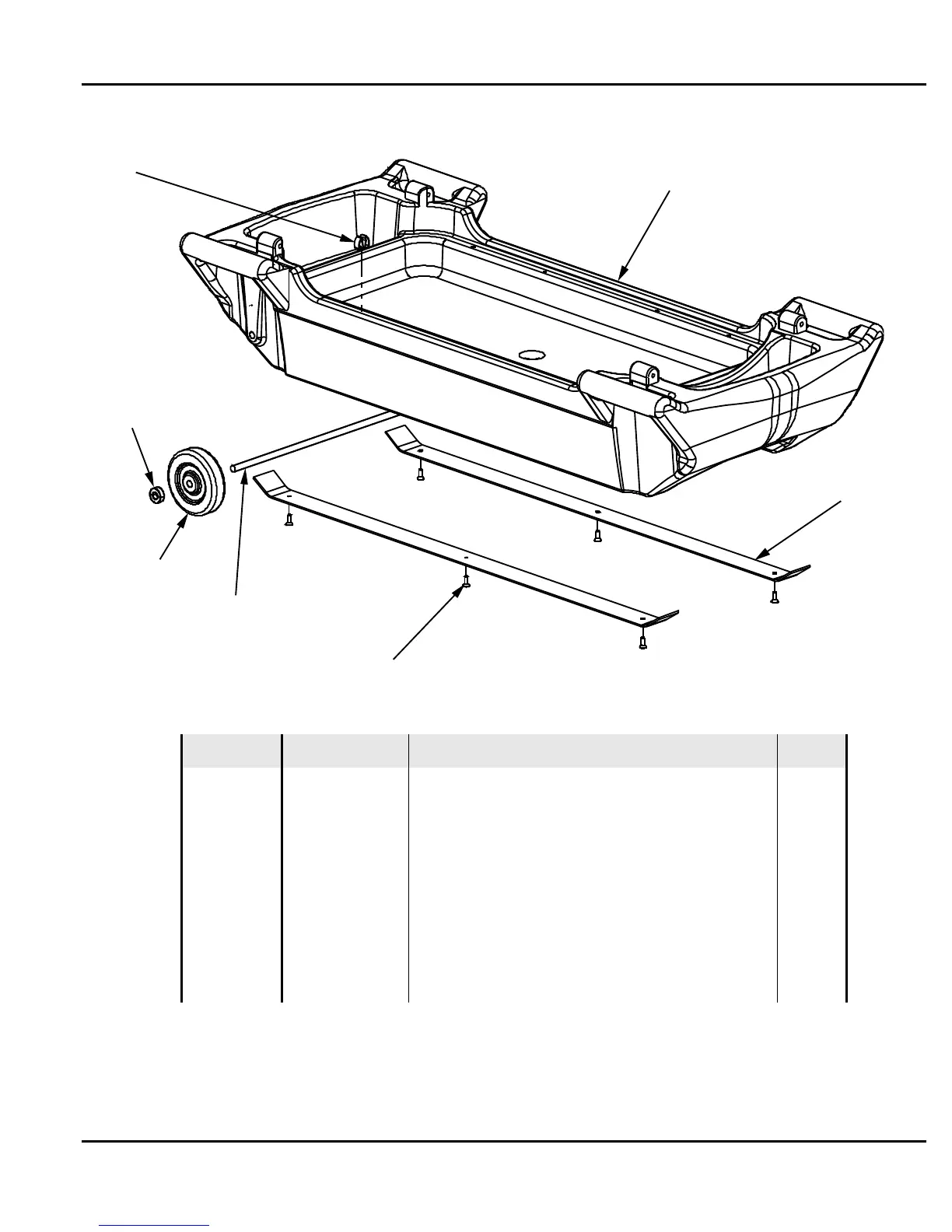

Figure 8-8 – Skid-Body Assembly Detail
ITEM DHS PN DHS PART DESCRIPTION Qty.
1 1002778 Base, Heater D-1000B, Plastic 1
2 1002807 Strip, Wear, Alum, 2 “ Wide x 42.5” Long 2
3 1004781 Screw, Cap Flat Hd, ¼”-20 x ¾”L, 18-8 SS 6
4 1002808 Rod, Carbon Steel, ½”OD x 20-1/2”L 1
5 H100088 Wheel, 0.5”dia 2
6 1004785 Collar, Shaft, ½”, 1-1/8”dia, Clamp-On 2
7 T230909 Clip, Spring Vinyl Coating 1
ILLUSTRATED PARTS BREAKDOWN 8-11 DHS SYSTEMS LLC
