Drash D-1000B - Control Panel Assembly Exploded View

D-1000B Heater Operations & Maintenance
8.5 Control Panel Assembly Exploded View
85
86
87
47
46
85
44
45
41
54
88
53
49
97
98
58
57
56
55
85
77

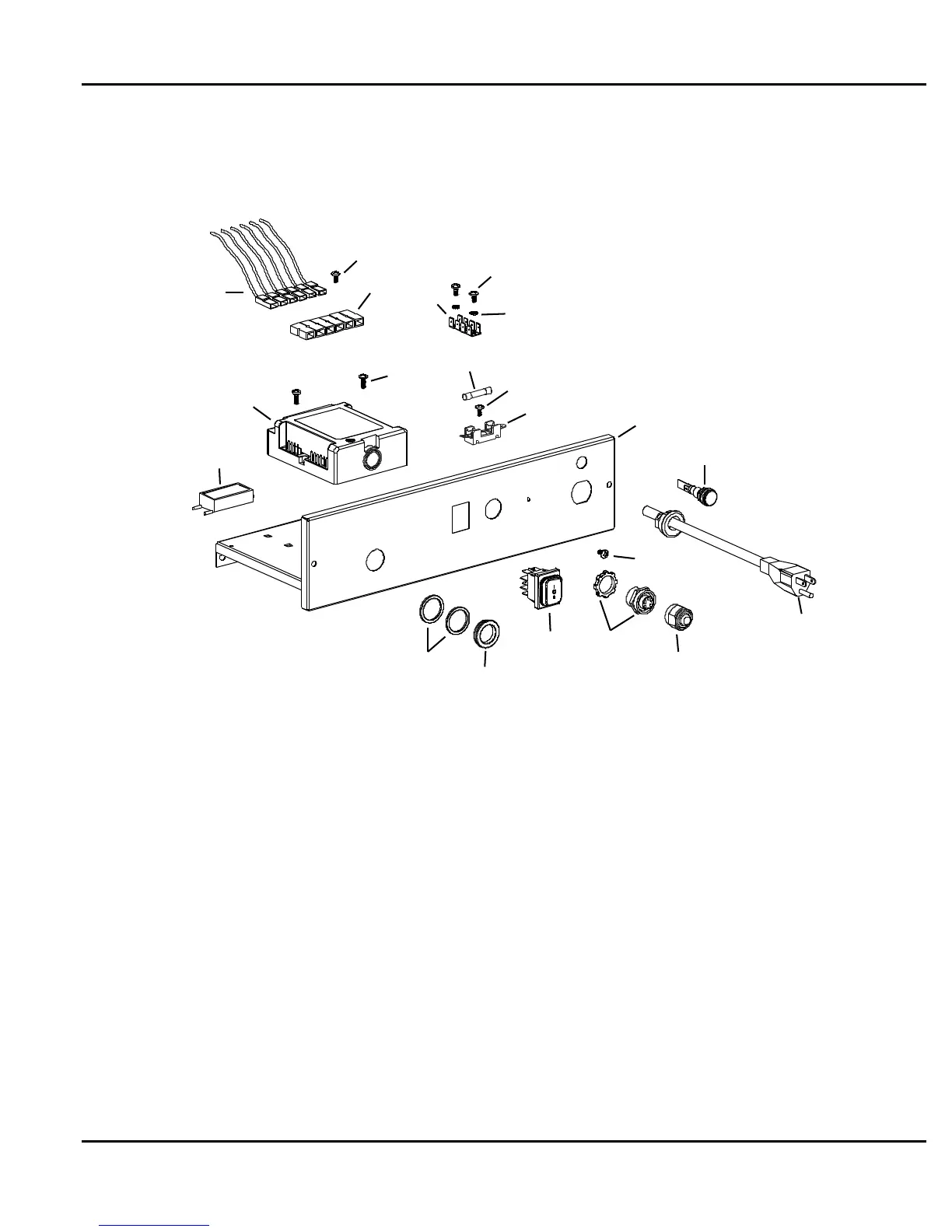

Figure 8-5 – Control Panel Assembly Detail
ILLUSTRATED PARTS BREAKDOWN 8-5 DHS SYSTEMS LLC
