Drash D-1000B - Burner Head and Nozzle Assembly Exploded View

D-1000B Heater Operations & Maintenance
8.2 Burner Head and Nozzle Assembly Exploded View
To Ground Terminal Board
91
94
40
103
91
61
63
85
64
62
65
66
93
60
59

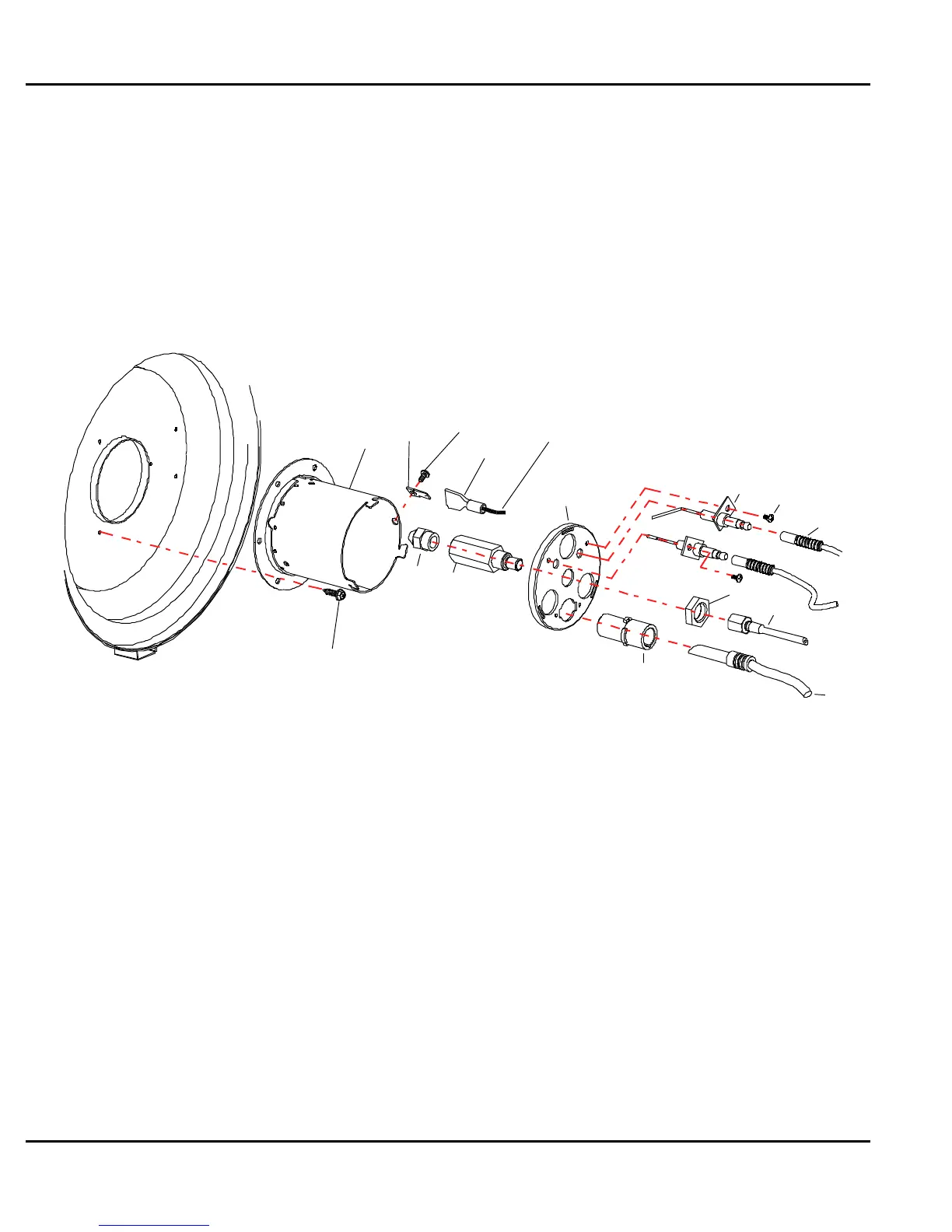

Figure 8-2 – Burner Head and Nozzle Assembly Detail
