Draytek Vigor130 User Manual

Vigor130 Series User’s Guide
4
1
1
.
.
3
3
H
H
a
a
r
r
d
d
w
w
a
a
r
r
e
e
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
This section will guide you to install the modem through hardware connection and configure
the modem’s settings through web browser.
Before starting to configure the modem, you have to connect your devices correctly.

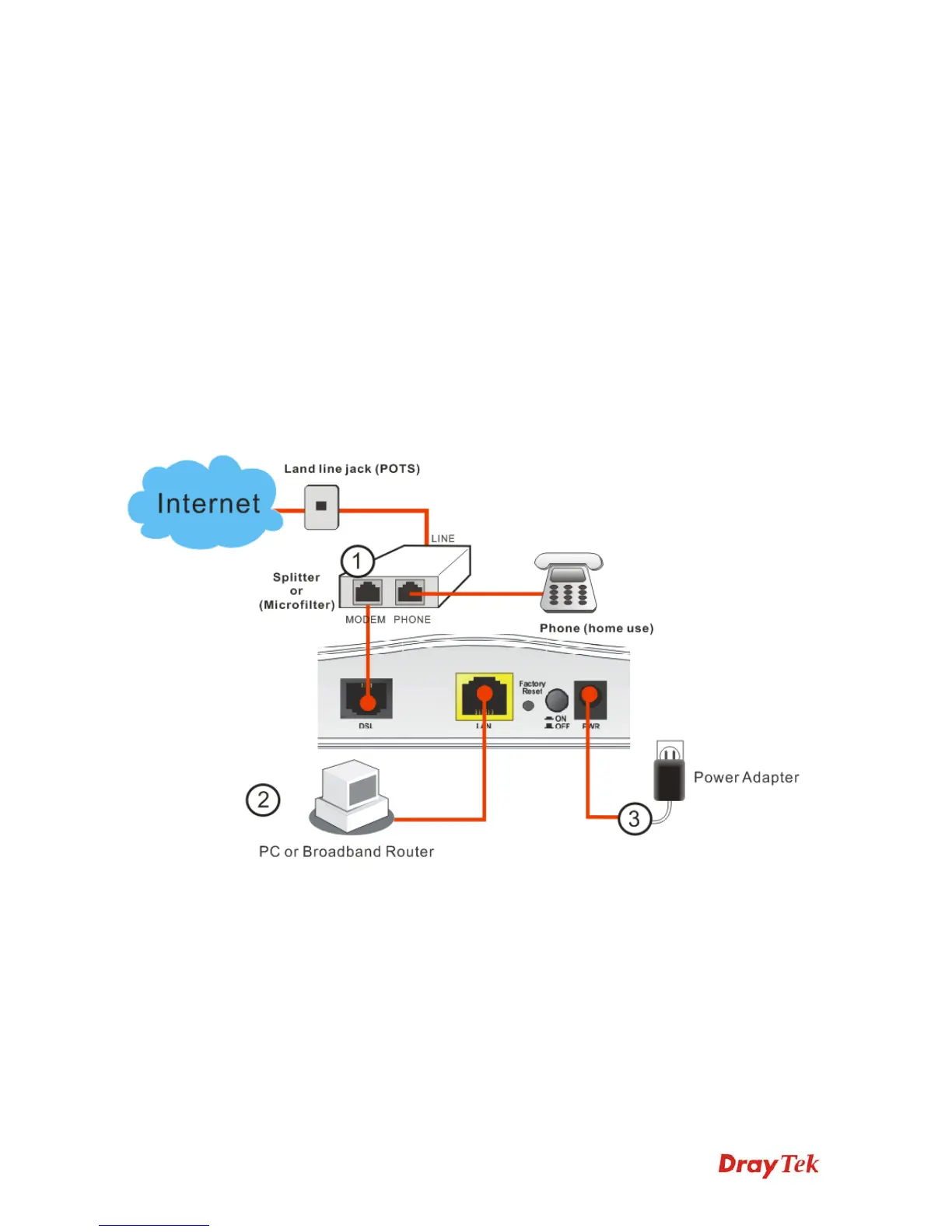

1. Connect the DSL interface to the MODEM port of external splitter with a DSL line
cable.
2. Connect the LAN port to your computer with a RJ-45 cable.
3. Connect one end of the power adapter to the Power port of this device. Connect the
other end to the wall outlet of electricity.
4. Power on the modem.
5. Check the POWER, ACT, LAN, DSL and INTERNET LEDs to assure network
connections.
(For the detailed information of LED status, please refer to section 1.2.)

Draytek Vigor130 Specifications

General

Brand	Draytek
Model	Vigor130
Category	Modem
Language	English
