Detailed explanation (for IPv6) is shown below:
Item Description
LAN Status
IP Address- Displays the IPv6 address of the LAN
interface..
TX Packets-Displays the total transmitted packets at the
LAN interface.
RX Packets-Displays the total received packets at the LAN
interface.
TX Bytes - Displays the speed of transmitted octets at the
LAN interface.
RX Bytes - Displays the speed of received octets at the
LAN interface.
WAN IPv6 Status
Enable – No in red means such interface is available but
not enabled. Yes in green means such interface is enabled.
No in red means such interface is not available.
Mode - Displays the type of WAN connection (e.g., TSPC).
Up Time - Displays the total uptime of the interface.
IP - Displays the IP address of the WAN interface.
Gateway IP - Displays the IP address of the default
gateway.
Note: The words in green mean that the WAN connection of that interface (WAN1) is
ready for accessing Internet; the words in red mean that the WAN connection of that
interface (WAN1) is not ready for accessing Internet.
2
2
.
.
5
5
.
.
2
2
V
V
i
i
r
r
t
t
u
u
a
a
l
l
W
W
A
A
N
N

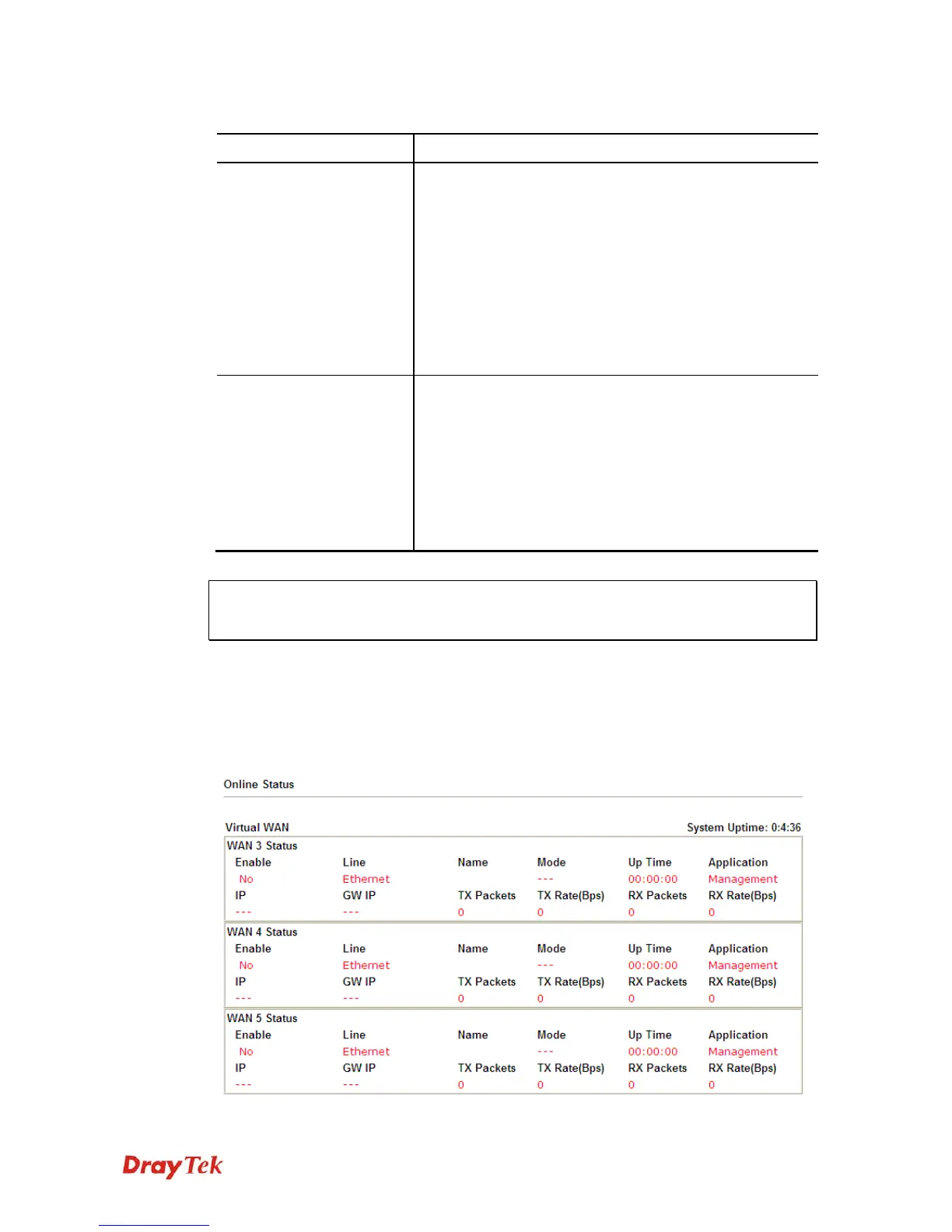

Such page displays the virtual WAN connection information.
Virtual WAN are used by TR-069 management, VoIP service and so on.
The Application field will list the purpose of such WAN connection.
