Tools Needed
Parts Needed
ASCEND Shower Door Manual Ver 1 022021 11
© 2021 DreamLine® All Rights Reserved

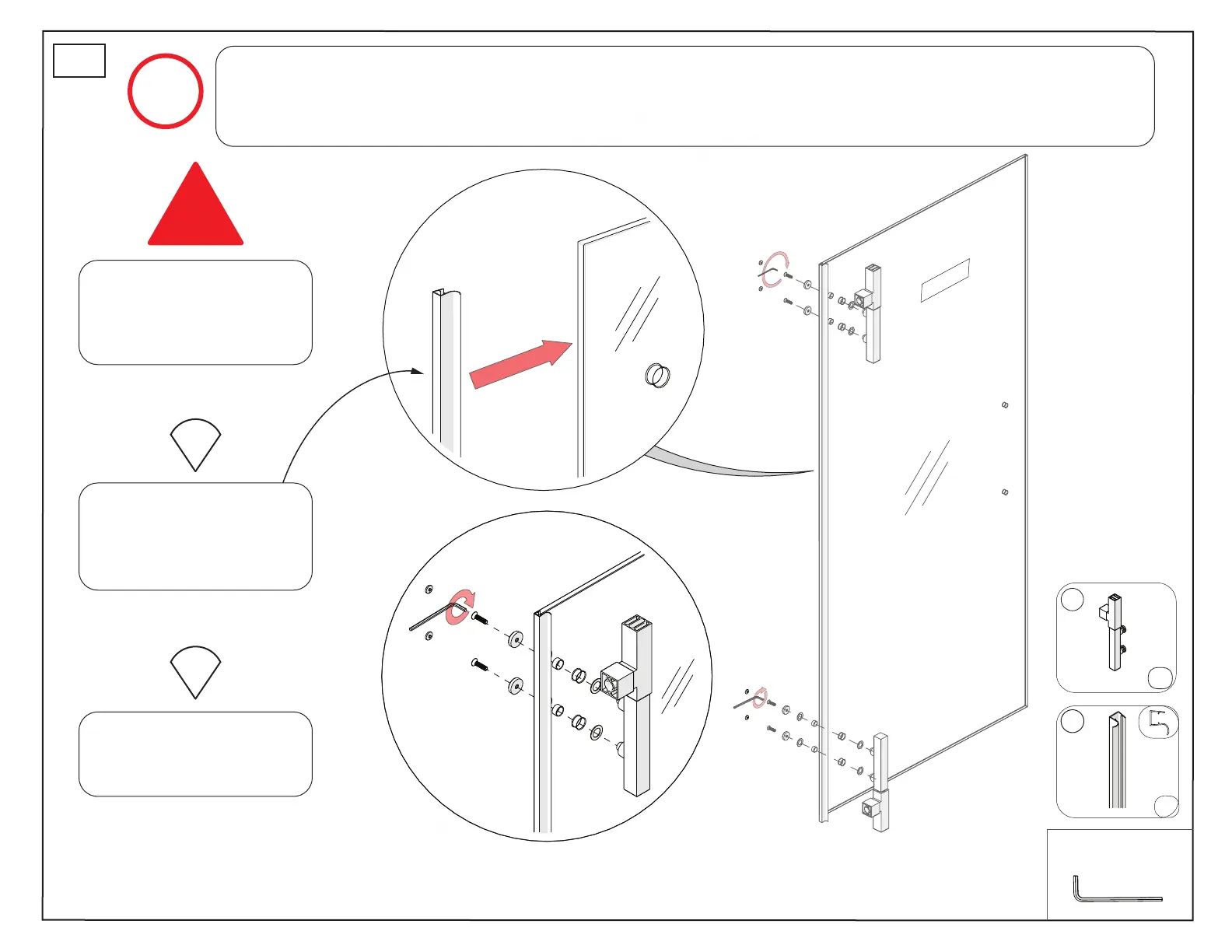

Install the Vertical Vinyl Seal (#10) on the hinge side of the Door Glass (#05). Note the orientation of the
Vertical Vinyl Seal in Fig 4.1 and press it firmly onto the Door Glass. Look for a sticker indicating the Top of
the Door Glass. Install the top and bottom Pivots (#06) to the Door Glass (#05) as shown, making sure they
are tightly secured. Fig 4
NOTE
06
x2
2
1
The Door Glass has a Top
and a Bottom. Look for a
sticker indicating the Top
of the glass.
TIP
TIP
Be sure there are gaskets
on both sides of the glass,
between glass and metal.
Note the position of the
Vertical Vinyl Seal, with
the rounded end facing
the outside of the shower.
Fig 4
10
x1
!
TOP
4
