Tools Needed
Parts Needed
ASCEND Shower Door Manual Ver 1 022021 13
© 2021 DreamLine® All Rights Reserved
Threshold
Block
01
x1

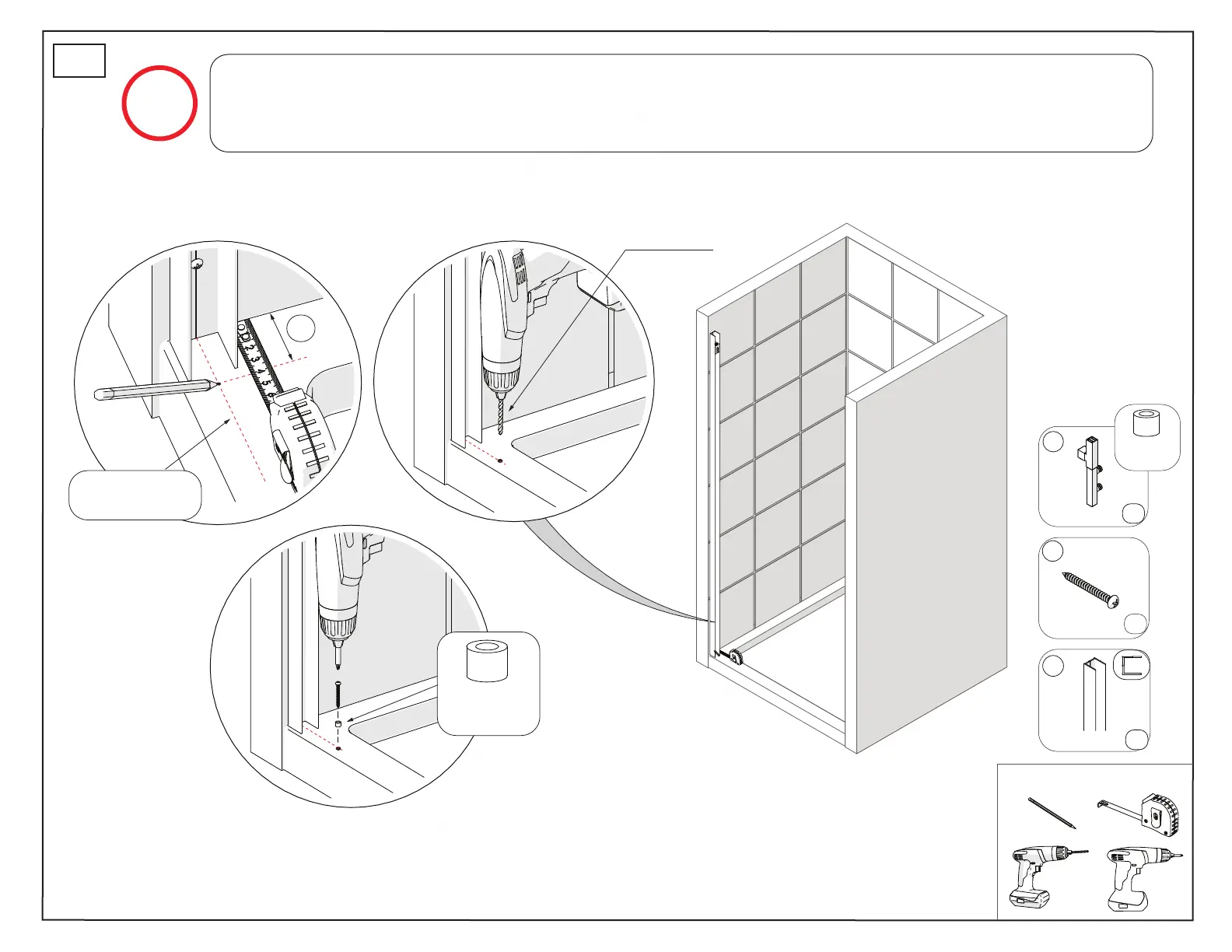

Measure out 4” from the hinge-side wall (next to the Wall Profile), and make a mark on the centerline of the
installed Wall Profile (#01). Fig 6.1. Mark the threshold for drilling. Drill a Ø 1/8” hole at the mark. Install the
ST4.0 x 40mm Screw (#03) with Threshold Block from the bottom Pivot (#06) assembly. The center groove
under the Bottom Pivot will sit on the Threshold Block. Fig 6
NOTE
3
1
03
x7
2
Ø 1/8” Bit
06
x2
Threshold
Block
4”
Centerline of
Wall Profile
Fig 6
6
To Next Page
