Tools Needed
ASCEND Shower Door Manual Ver 1 022021 14
© 2021 DreamLine® All Rights Reserved
NOTE

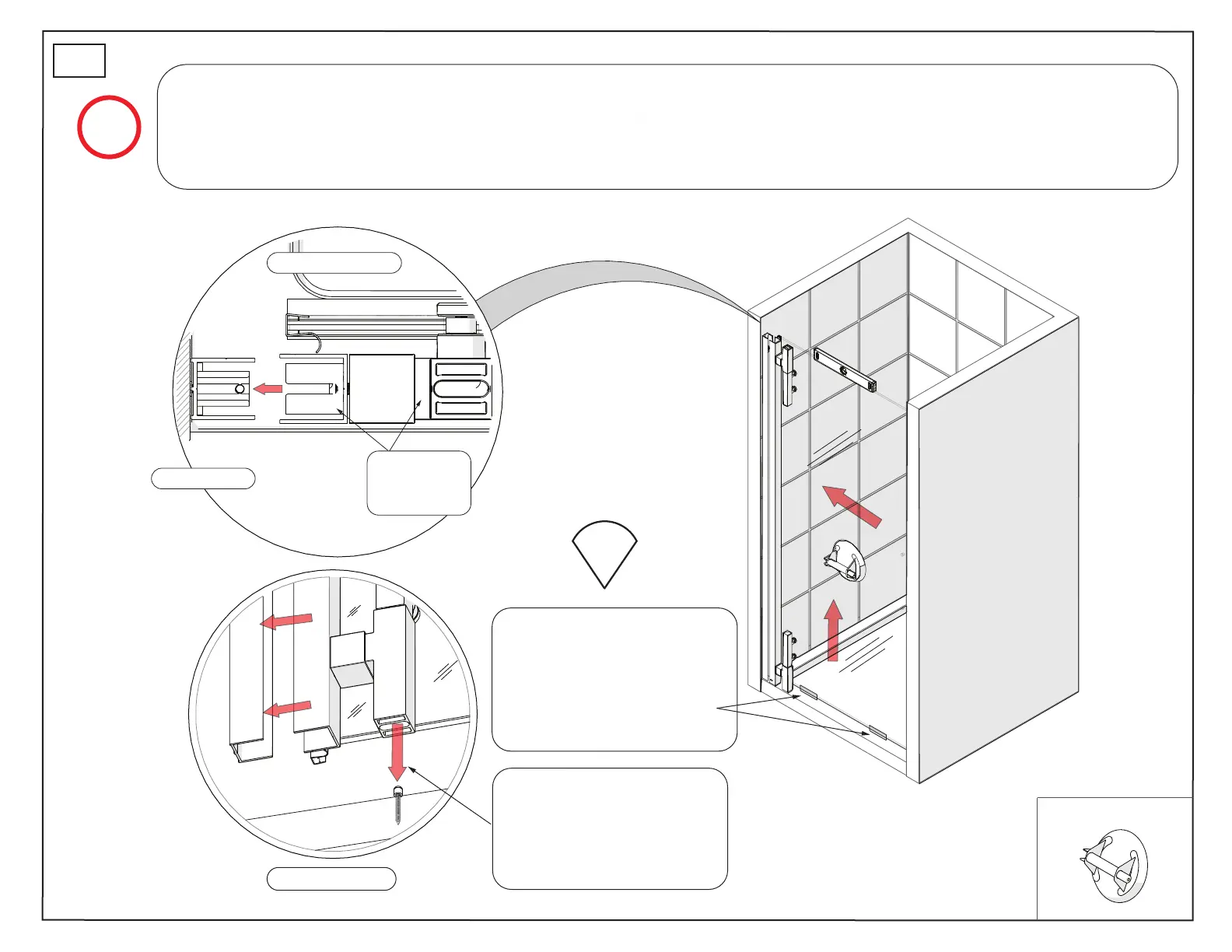

Use a glass suction cup and a helper to carefully lift the Door Assembly into the opening. Slide the Glass Profile (#07)
over the outside of the installed Wall Profile (#01). Be sure the Wall Bracket (#02) and Glass Bracket (#08) inside the
top of both Profiles interlock. The center groove in the Bottom Pivot must also fit over the Threshold Block installed in
Step #6. Use the included 5/8” shims under the door glass. This protects the bottom edge of the glass while keeping the
Door Glass at the correct height. Use a level to adjust the Door Glass until it is level and plumb. Fig 7
The center groove in the
Bottom Pivot must sit on
the Threshold Block,
which is secured to the
threshold.
T
h
r
e
s
h
o
l
d
Wall Profile
Overhead View
Glass Profile
and Door
Assembly
TIP
Use the 5/8” spacers under
the Door Glass during
installation to keep it at the
correct height and protect
the bottom edge of the
glass.
Bottom View
2
1
Fig 7
7
