1. Place the Hex Box™ adjacent to the
Dremel LC40 Laser Cutter on a flat
stable surface adequate to bear the
weight. The maximum distance the Hex
Box™ can be placed from the Dremel
LC40 Laser Cutter is 5 feet.
2. Remove the short silicone tubing
capping the Water Inlet and Water
Outlet on the back of both the Dremel
LC40 Laser Cutter and the Hex Box™.
3. Match the blue and clear water tubes
to the appropriate inlet and outlet
fittings on the Dremel LC40 Laser
Cutter and the Hex Box™, Fig. 8 & 9.
The fittings are labeled with colors to
help identify the appropriate tubes.
Attach Water Hoses
WATER IN
ENTRÉE D’EAU
ENTRADA DE AG
UA
WATER OUT
SORTIE D’EAU
SALIDA DE AGUA
AIR TUBE
TUYAU À AIR
TUBO DE AIRE
Hex Box
12V
W
A
TER OUT
S
ORTIE D’EA
U
S
A
LIDA
DE A
GUA
WAT
ER
IN
E
N
T
RÉE
D’
E
AU
ENTRADA
DE A
GUA
Clear
Water
Hose
Blue
Water
Hose
Blue
Water
Hose
Clear
Water
Hose
Water Hose
Fittings
Water Hose
Fittings

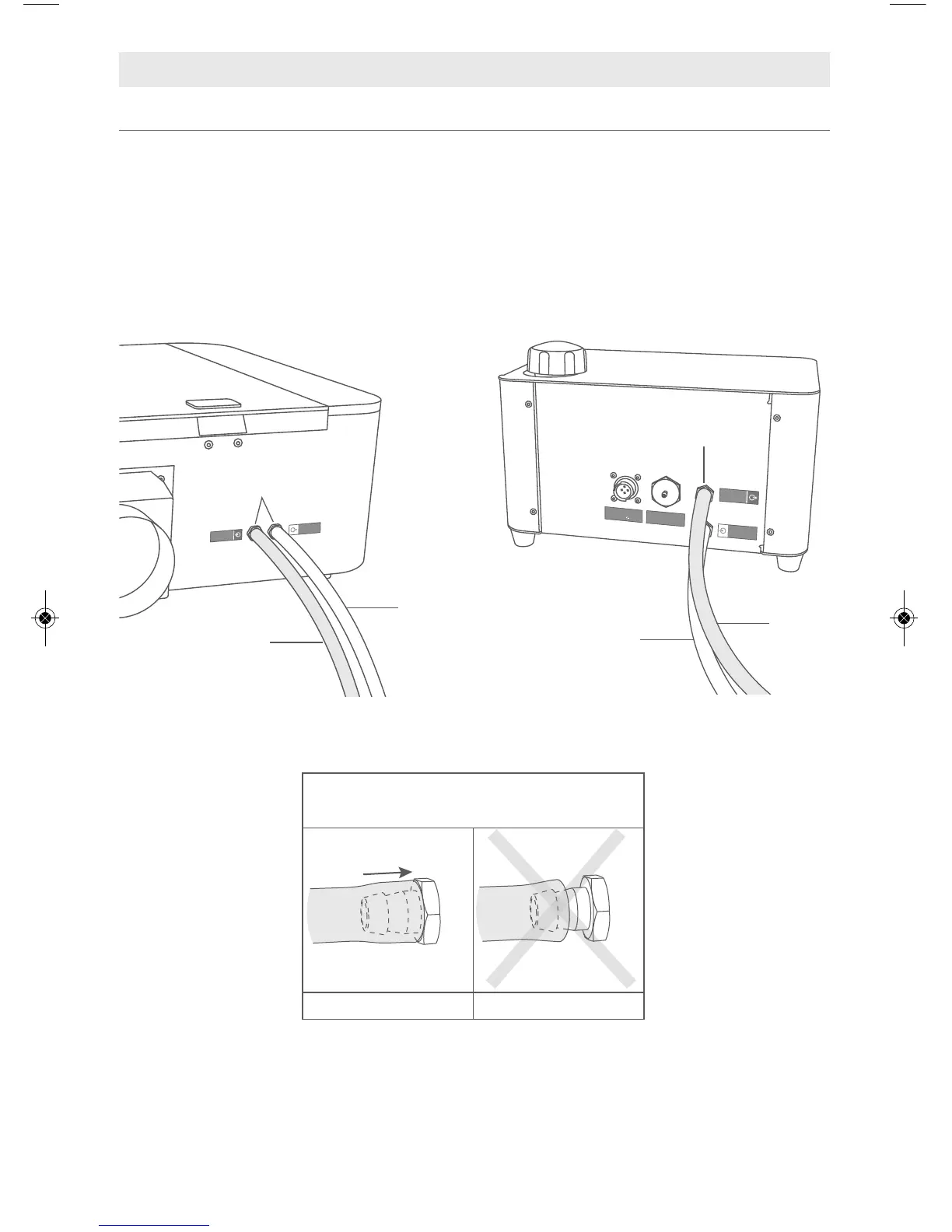

Fig. 8 — Rear of Dremel LC40 Laser Cutter
Fig. 9 — Rear of Hex Box™
SETUP
Push the ends of the tubing onto the
fittings until they are snug.
Correct Incorrect
