Identifying Basic Drill Bits
The Drill Doctor® is most ecient when used to resharpen a drill
bit’s original point angle. With its standard Diamond Sharpening
Wheel it will sharpen high-speed steel, cobalt, TiN-coated, carbide
and masonry drill bits. It has been designed and engineered to
sharpen three of the most common drill bit types:

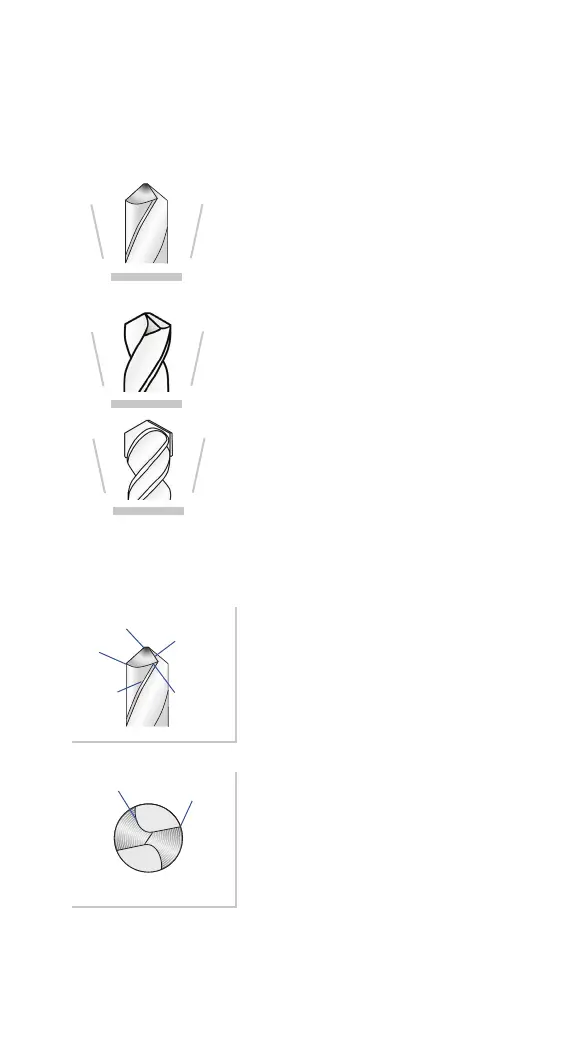

Standard Point
This general-purpose point (normally
118°) is used for drilling softer
materials like cold rolled steel,
aluminum, and wood.
Split Point
Split-point bits are self-centering and
are generally used for tempered steels,
hard alloys or hard cast materials.
Masonry Bits
Masonry bits have a carbide insert
at the point and are used for drilling
materials like cement, brick, and
ceramic.
Anatomy of a Drill Bit
When viewing a well-sharpened bit
from the side, the Heel will always be
lower than the Cutting Edge; this is
called “positive relief”.
When viewing a well-sharpened bit
from the end, the entire surface from
the Cutting Edge to the Heel will have
a nely ground surface without ridges
or indentations.
Chisel Edge
Cutting
Edge
Relief
Angle
Leading
Edge
Heel
Cutting Edge
Heel
