XT SERIES INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
MOUNTING XT STEAM BLOWER ON TOP OF HUMIDIFIER
The condensate tee kit shipped with the XT steam blower returns condensate
from a top-mounted XT steam blower to the humidifi er's cylinder fi ll hose. See
Figure 42-1. Install the kit as follows:
1. If humidifier is not already mounted to wall, see “Wall mounting
humidifier” on Page 10.
2. Remove steam cylinder (see “Removing steam cylinder”on Page 10).
3. Assemble condensate hose from kit to condensate outlet at base of steam
box, and install both plastic ties (included) on hose to ensure secure
connection to steam box condensate outlet.
4. Assemble hose cuff and clamp to steam port on steam box.
5. Remove middle-rear knockout on top of humidifier cabinet, and mount XT
steam blower to wall as noted on Page 43.
6. Feed condensate hose into humidifier cabinet through knockout hole
created in Step 5, place XT humidifier below XT steam blower on wall,
and secure humidifier to wall.
7. Push small burr of tee into loose end of condensate hose that was fed into
cabinet in Step 6.
8. Cut midpoint of 5/8" fill hose that connects center port on fill cup to fill
connection on floor of humidifier cabinet. Avoid kinks by leaving slack in
fill hose for cylinder installation.
9. Install tee in 5/8" fill hose that was cut in Step 8.
10. Install steam cylinder (see “Installing steam cylinder” on Page 12).
Two plastic ties*
Condensate
hose*
Tee*
* Supplied with
condensate
tee kit
Steam box
Steam port
For remote-mounting the XT steam blower, see
Page 43.
OM-7983-XT

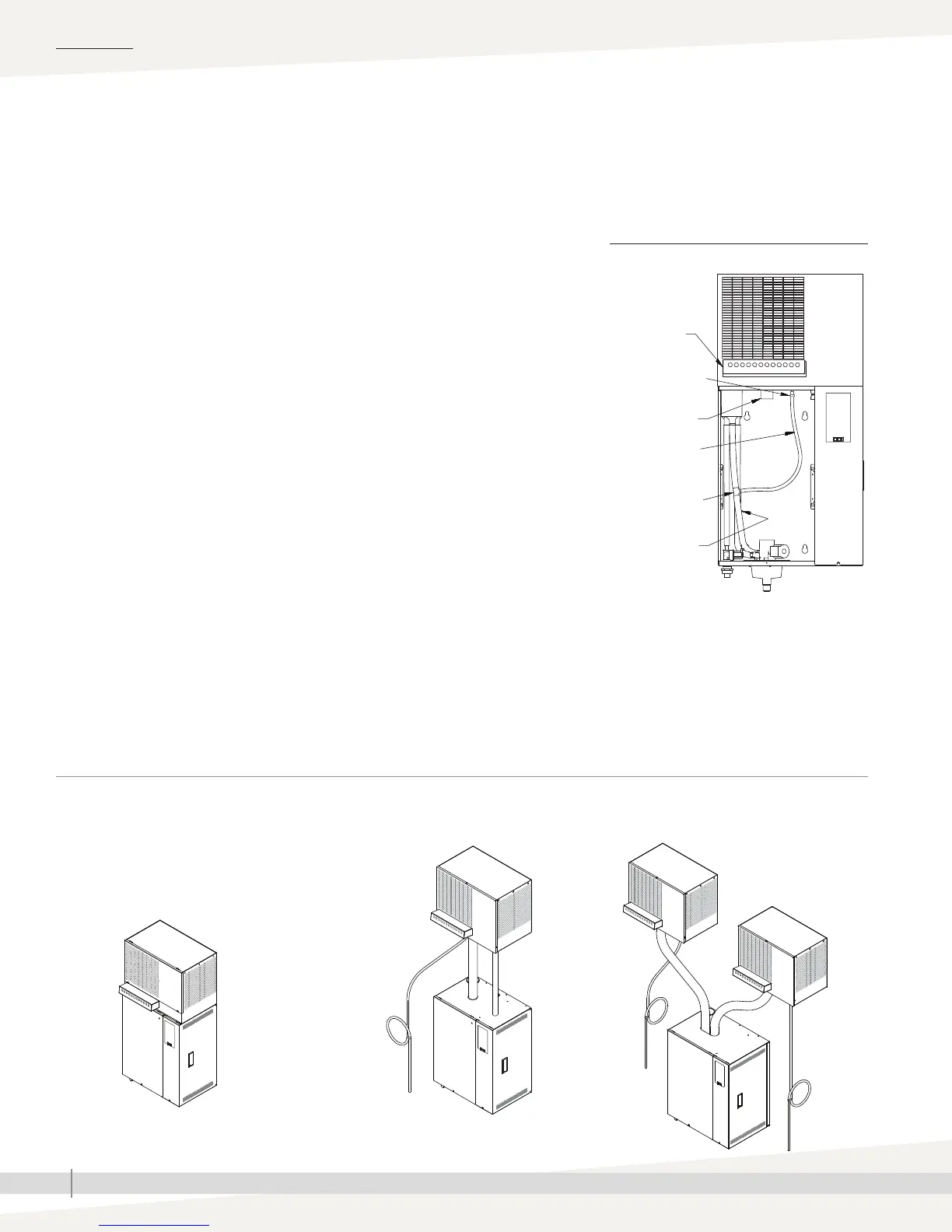

FIGURE 42-1: CONDENSATE TEE KIT FOR
TOP-MOUNTED XT STEAM BLOWER
INSTALLATION
XT steam blowersDispersion:
5/8" fi ll hose
Mounted on top of humidifi er Mounted remotely from humidifi er
OM-7698
OM-7670
One XT Series humidifi er with
two XT steam blowers
Condensate
returned to
open drain
(condensate can
also be returned to
humidifi er fi ll cup)
Condensate returned to
steam cylinder fi ll hose
OM-7699
FIGURE 42-2: TOP- AND REMOTE-MOUNTED XT STEAM BLOWER
