Drive 15005L - Connecting Bed Sections

3
Assembly Instructions (Continued)

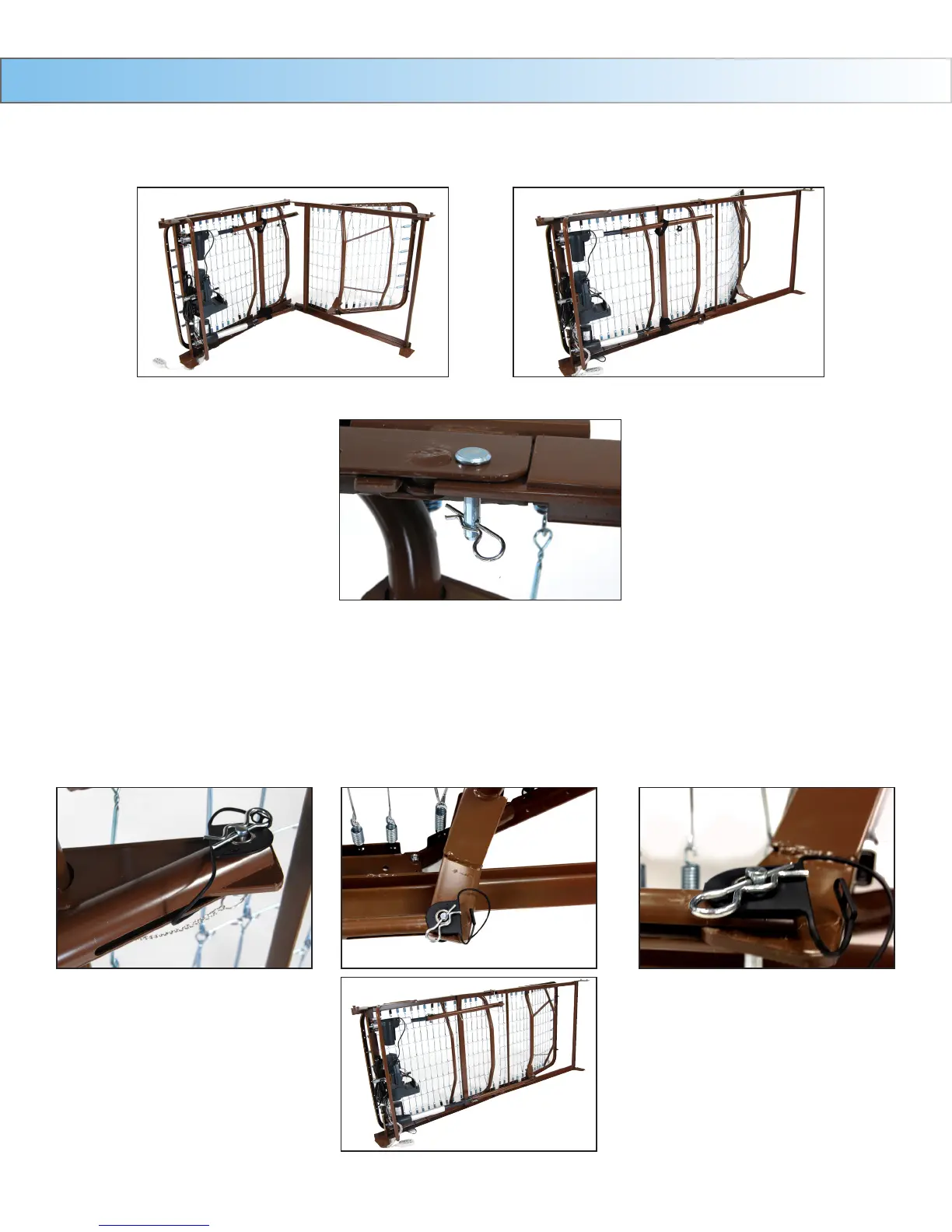

2. With the Head and Foot Spring positioned upright, connect Head Spring by aligning with foot spring and
swinging both ends away from each other.
3. Optional: Insert lock pin through connected sleep surface and secure with spring clip.
4. Connect Head Spring and Foot Spring Pull Tube to provide the up/down motion/adjustment of the Head
and Foot Spring Sections:
A. Extend the Head Spring Pull Tube and connect to the Head Spring Lift Arm. Secure in place with the
tethered locking pin and clip
B. Extend the Foot Spring Pull Tube and connect to the Foot Spring Lift Arm.
Secure in place with the tethered locking pin and clip
