Main bold for autocap
6.5
Autocap protection

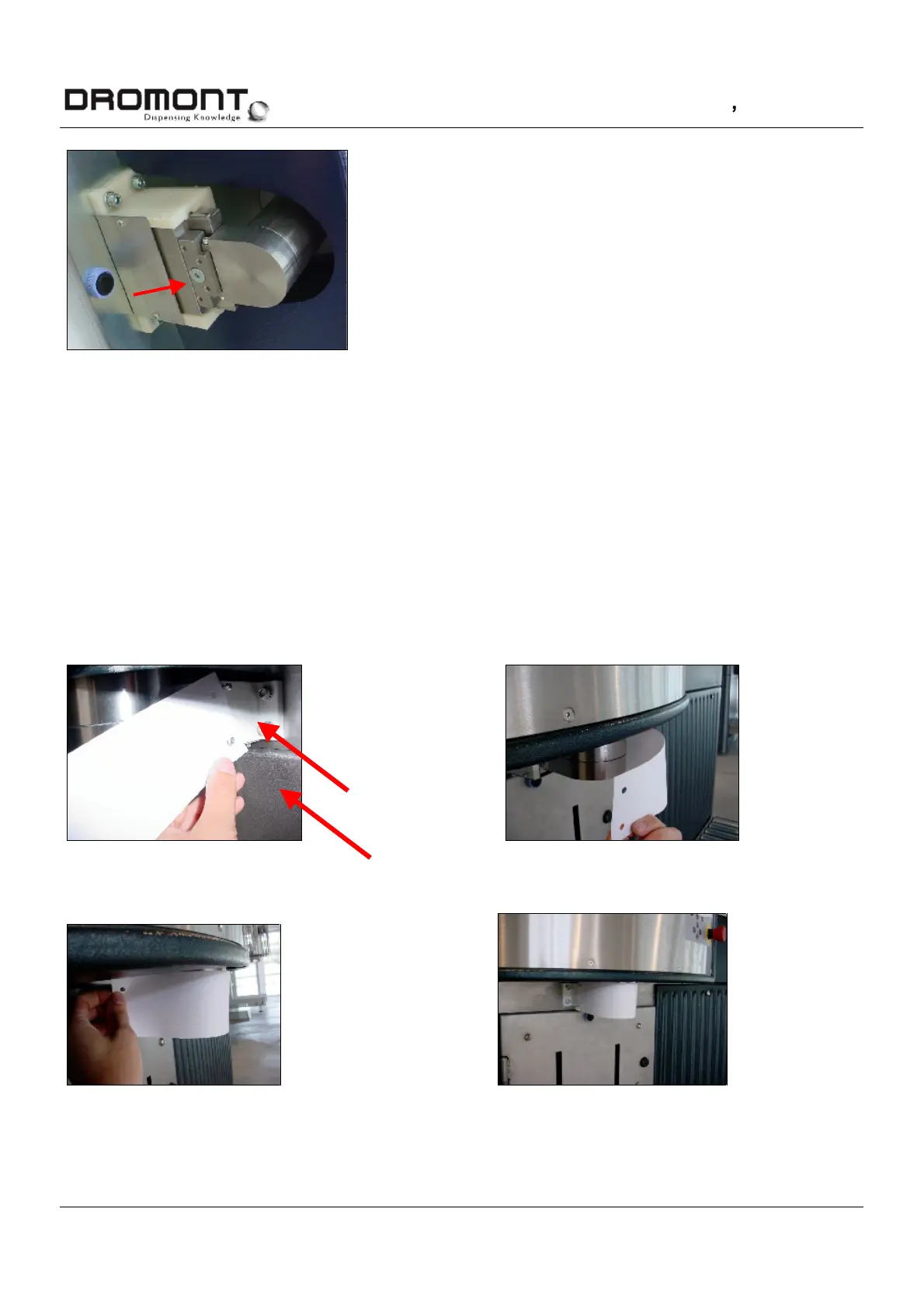

The protection for the autocap is developed to protect the operator for being trapped with their
hand between the autocap and the dosing head.
The protection is made of a P.V.C. film with 4 holes for assembling. Push the 2 holes over the
bolds on one side of the autocap (fig. 6.3a).
Then bend the film around the dosing head (fig 6.3b) and attach the other side on the remaining
two bolds (see
6-4
6-6)
6-4
6-5
6-6
6-7
