6.8 Exchanging electro valves:
a) Disconnect the tube from the canister and start a recirculation cycle.
b) Press the emergency button on the piston lowest position.
c) Disconnect the power and take out the power cable from the net.
d) Disconnect the three-way valve unscrewing the two screws indicated by the arrow.
e) Take out the valve and disconnect the two tubes by pressing the outside ring and tearing the
tube.
f) Exchange the valve and assemble the unit using the procedure in reverse..
REMARKS
NUMBER THE PIPES IN ORDER TO REMEMBER THE CORRECT
ASSEMBLING.
A WRONG ASSEMBLING CAN CAUSE A BLOW-UP OF THE PIPES .

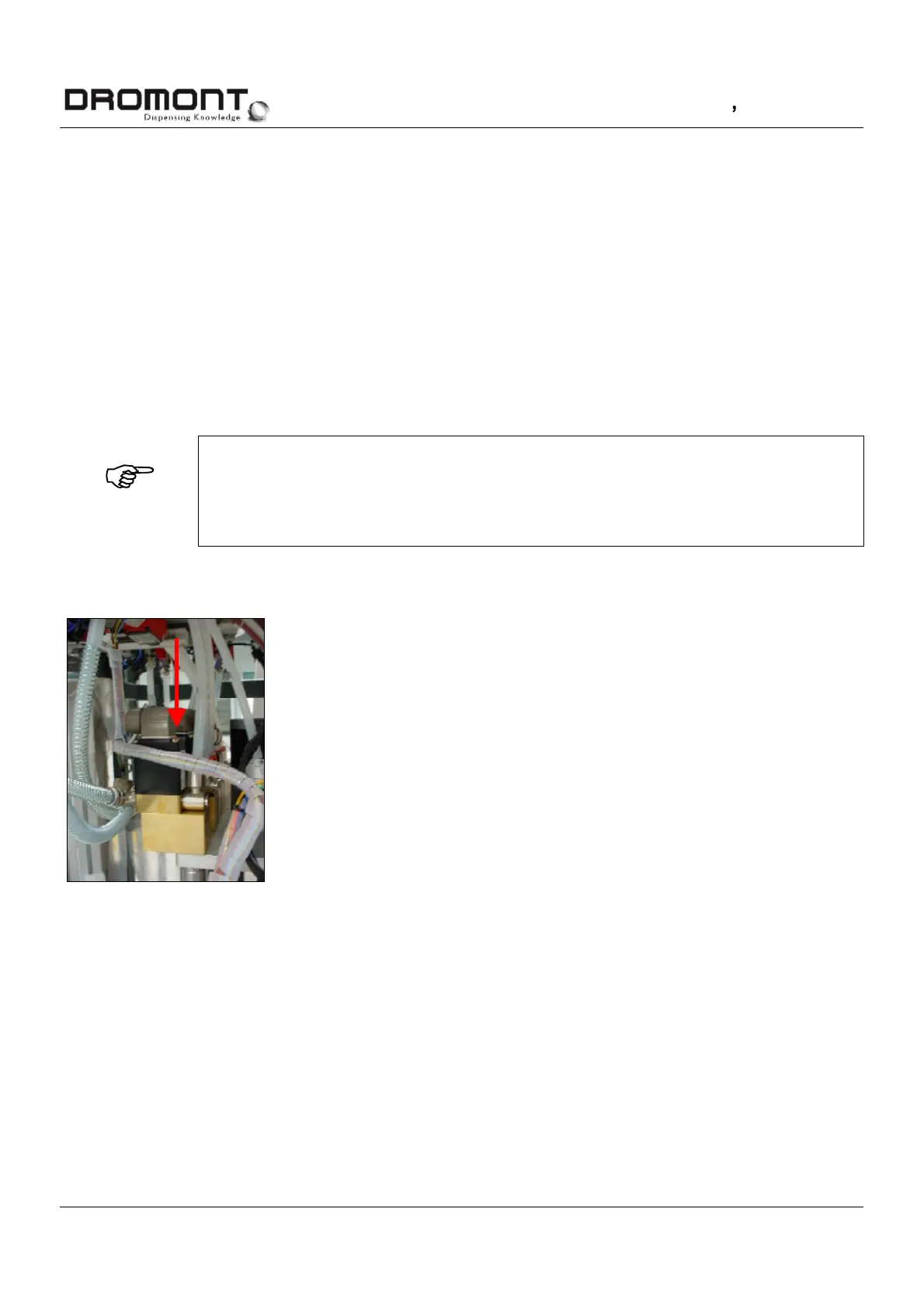

picture 6- 10 Exchanging the electro valve
