DSC Classic PC1565 - Wiring 24-Hr Devices

5
Wiring
Wiring 24-hr Devices

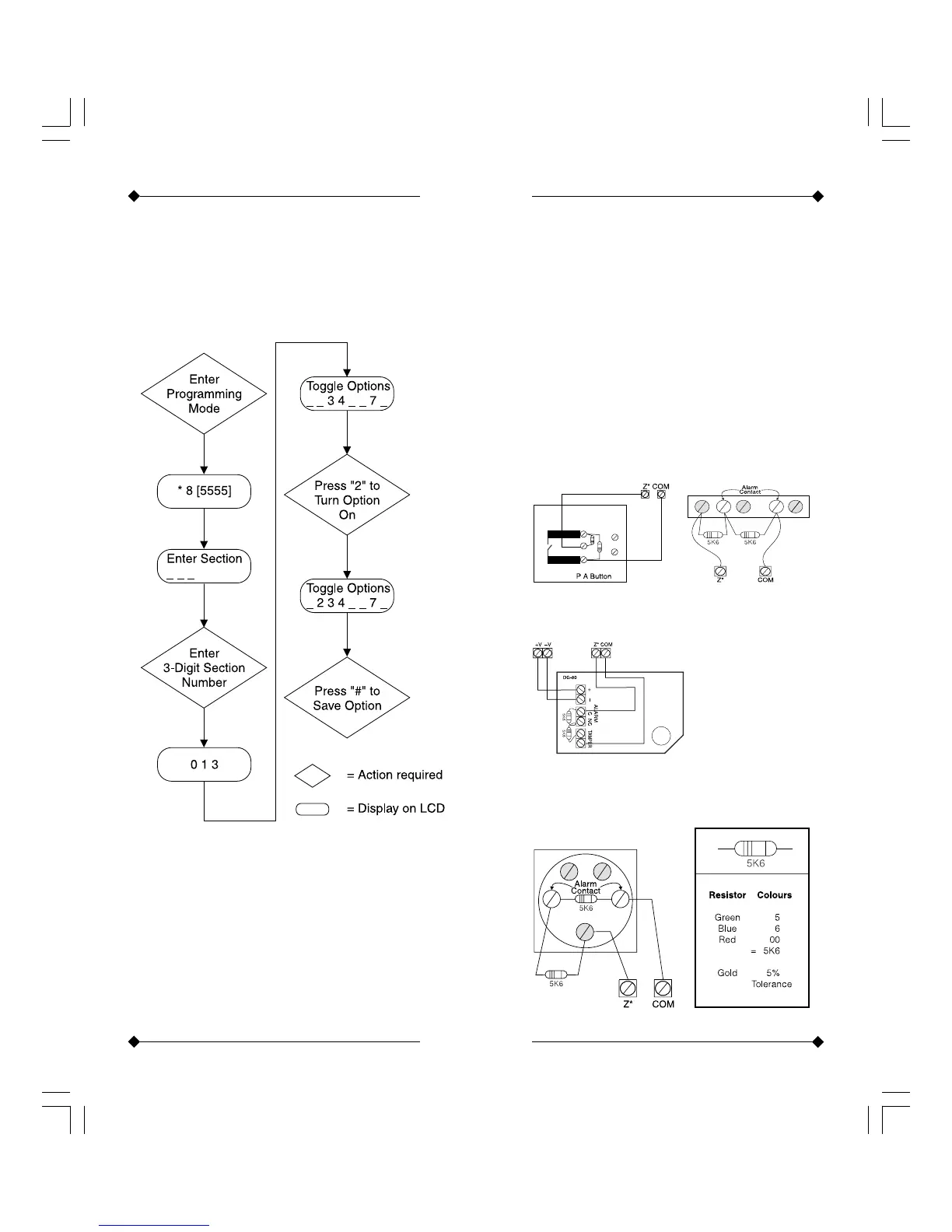

The diagram below shows how to
connect door contacts, break glass
detectors and panic attack buttons to
the Classic PC1565 using double end
of line resistors (DEOL).
Always follow the manufacturer’s
instructions when installing such
devices.
Panic Button Door Contact (surface)
Break Glass Detector
Door Contact (flush) 5K6 Resistor Used in
All DEOL Connections
Wiring 24-hr Devices28
Basic Programming
Programming Examples:
Using a LCD Keypad
Programming Using a LCD Keypad
