Keypad Display Symbols

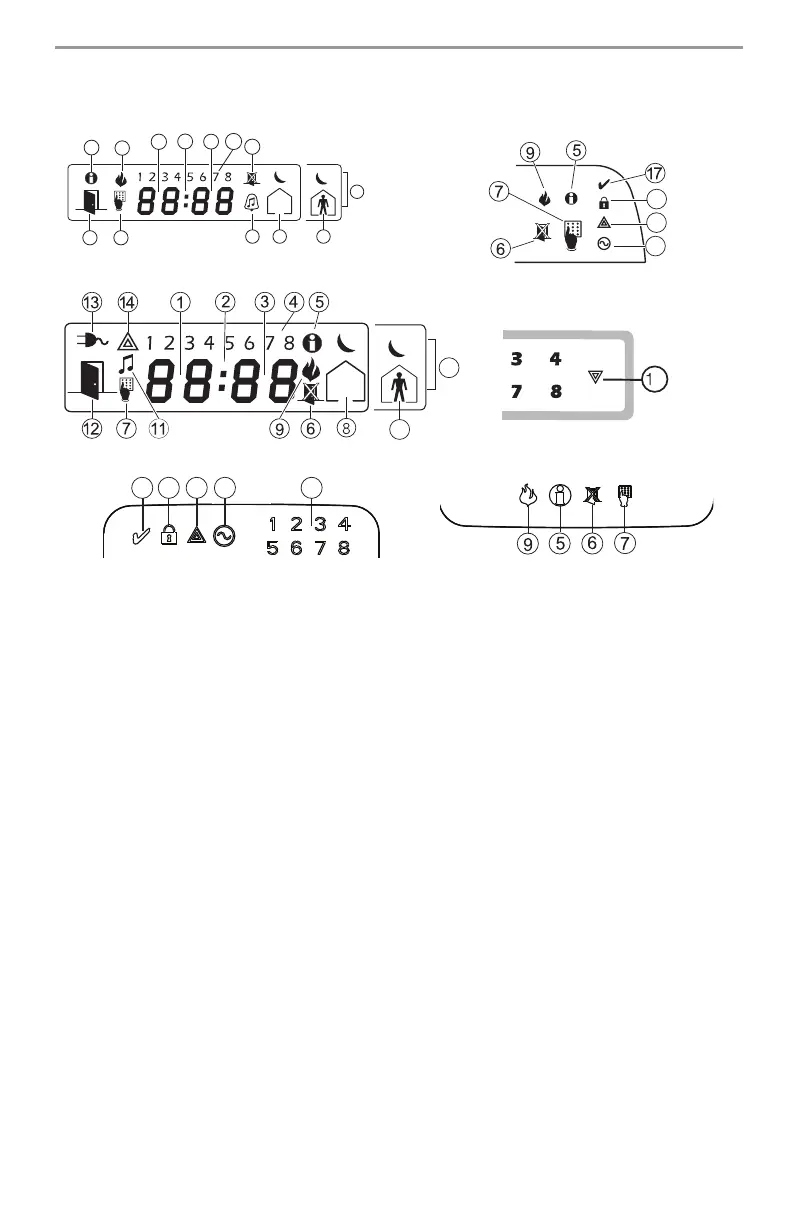

1 Clock Digits 1, 2 – These two digits indicate the hour digits when the local clock is active, and
identify the zone when the OPEN or ALARM icons are active. These two digits scroll one zone
per second from the lowest zone number to the highest when scrolling through zones.
2 : (Colon) – This icon is the hours/minutes divider and will flash once a second when the local
clock is active.
3 Clock Digits 3, 4 – These are the minute digits when the local clock is active.
4
1 to 8 – These numbers identify troubles when
[][2] is pressed.
5 Memory – Indicates that there are alarms in memory.
6 Bypass – Indicates that there are zones automatically or manually bypassed.
7 Program – Indicates that the system is in Installer’s Programming or the keypad is busy.
8 Away – Indicates that the panel is armed in the Away Mode.
9 Fire – Indicates that there are fire alarms in memory.
10 Stay – Indicates that the panel is armed in the Stay Mode.
11
Chime – This icon turns on when the Chime function key is pressed to enable Door Chime on
the system. It will turn off when the chime function key is pressed again to disable Door Chime.
12 OPEN – This icon is used with clock digits 1 and 2 to indicate violated zones (not alarm) on the
system. When zones are opened, the OPEN icon will turn on, and 7 segment displays 1 and 2
will scroll through the violated zones.
13 AC – Indicates that AC is present at the main panel.
14 System Trouble – Indicates that a system trouble is active.
15 Night – Indicates that the panel is armed in the Night Mode.
16 System - Indicates one or more of the following:
Memory – Indicates that there are alarms in memory.
Bypass – Indicates that there are zones automatically or manually bypassed.
System Trouble – This icon is displayed when a system trouble is active.
17 Ready Light (green) – If the Ready light is on, the system is ready for arming.
18 Armed Light (red) – If the Armed light is on, the system has been armed successfully.
