DEEP SEA ELECTRONICS
7210 INSTALLATION INSTRUCTIONS
053-026
ISSUE 8

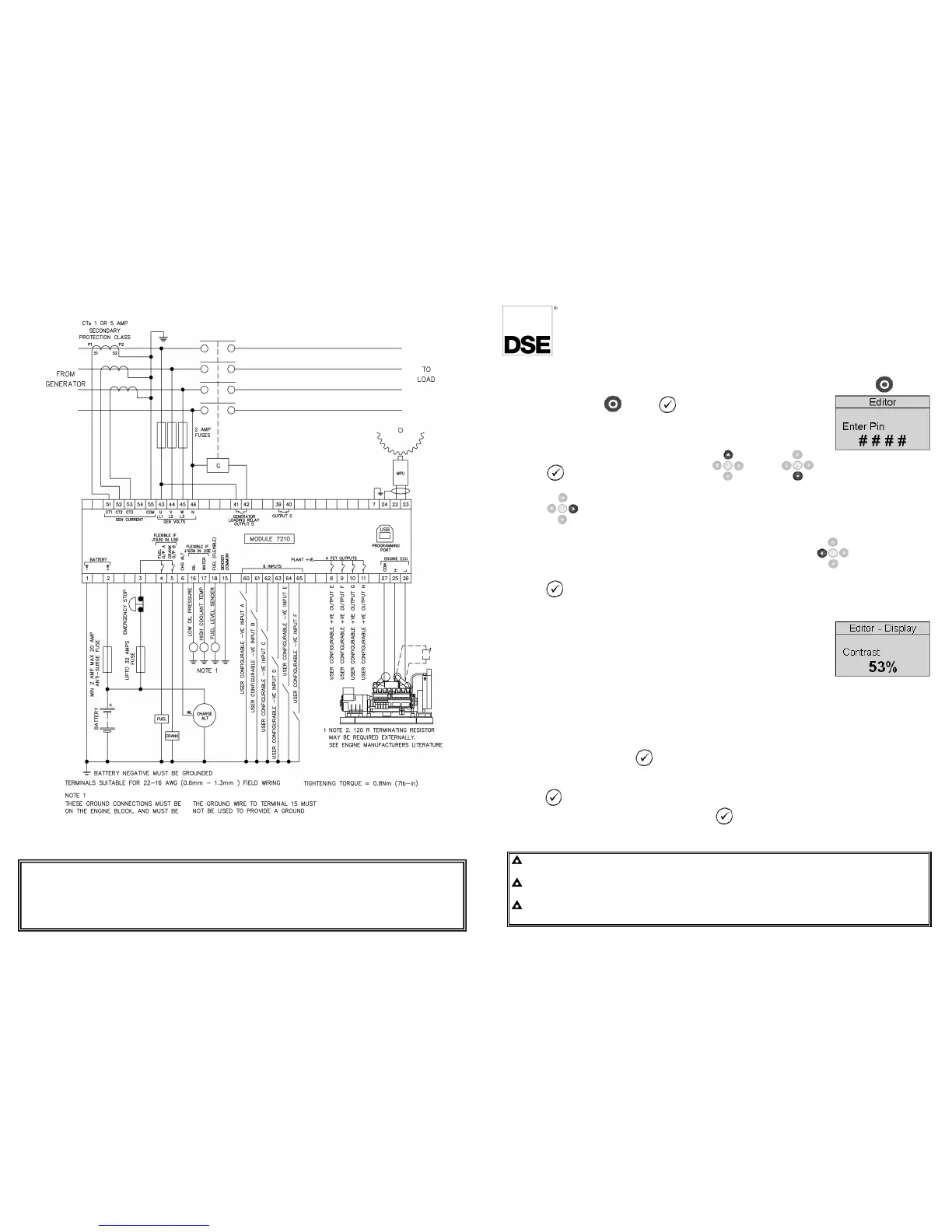

ACCESSING T HE FRONT PANEL CONFIGURATION EDITOR
Ensure the engine is at rest and the module is in STOP mode by pressing the Stop/Reset button.
• Press the Stop/Reset and Info buttons simultaneously.
• If a module security PIN has been set, the PIN number request is then
shown :
• Press , the first ‘#’ changes to ‘0’. Press
(up) or
(down) to adjust it to the
correct value.
• Press (right) when the first digit is correctly entered. The digit you have just entered will now
show ‘#’ for security.
•
Repeat this process for the other digits of the PIN number. You can press
(left) if you need to
move back to adjust one of the previous digits.
•
When is pressed after editing the final PIN digit, the PIN is checked for validity. If the number is
not correct, you must re-enter the PIN.
If the PIN has been successfully entered (or the module PIN has not been
enabled), the editor is displayed :
EDITING A PARAMETER
• Enter the editor as described above.
•
Press the left or right buttons to cycle to the section you wish to view/change.
•
Press the up
or down
buttons to select the parameter you wish to view/change within the currently
selected section.
• To edit the parameter, press to enter edit mode. The parameter begins to flash to indicate that
you are editing the value.
• Press the up
or down
buttons to change the parameter to the required value.
• Press to save the value. The parameter ceases flashing to indicate that it has been saved.
• To exit the editor at any time, press and hold the button.
Deep Sea Electronics Plc.
Tel :+ 44 (0)1723 890099
Fax: +44 (0)1723 893303
Email: support@deepseaplc.com
Web: www.deepseaplc.com
Deep Sea Electronics inc.
Phone: +1 (815) 316-8706
Fax: +1 (815) 316- 8708
TOLL FREE (USA only) : Tel: 1 866 636 9703
Email: dsesales@deepseausa.com
Web: www.deepseausa.com
NOTE: When the editor is visible, it is automatically exited after 5 minutes of inactivity to ensure
security.
NOTE: The PIN number is automatically reset when the editor is exited (manually or automatically) to
ensure security.
NOTE: More comprehensive module configuration is possible using the 7xxx series PC configuration
software. Please contact us for further details
