DSE7200 / 7300 Series Operators Manual
24
3.15 DIMENSIONS AND MOUNTING

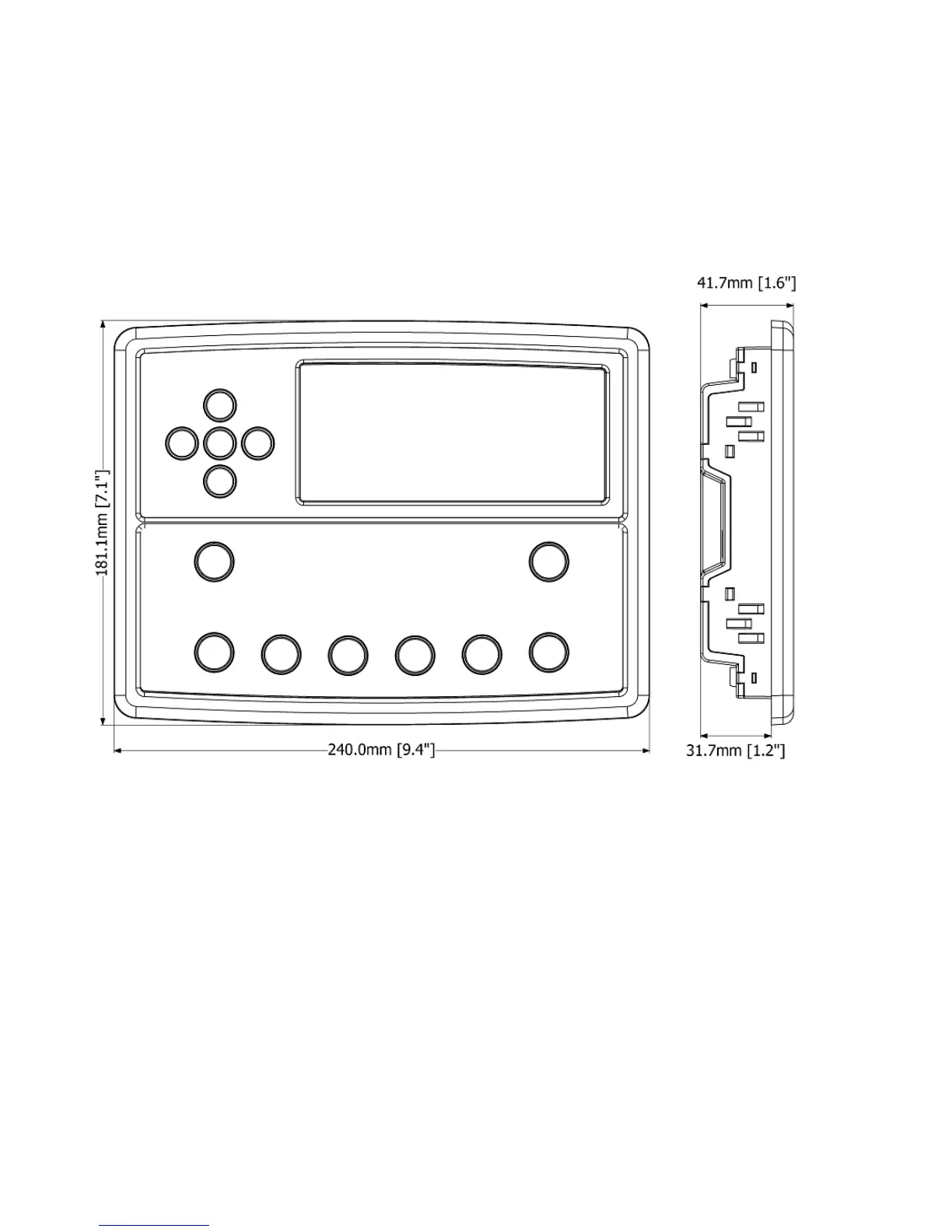

DIMENSIONS
240.0mm x 181.1mm x 41.7mm
(9.4” x 7.1” x 1.6”)
PANEL CUTOUT
220mm x 160mm
(8.7” x 6.3”)
WEIGHT
0.7kg (1.4lb)
