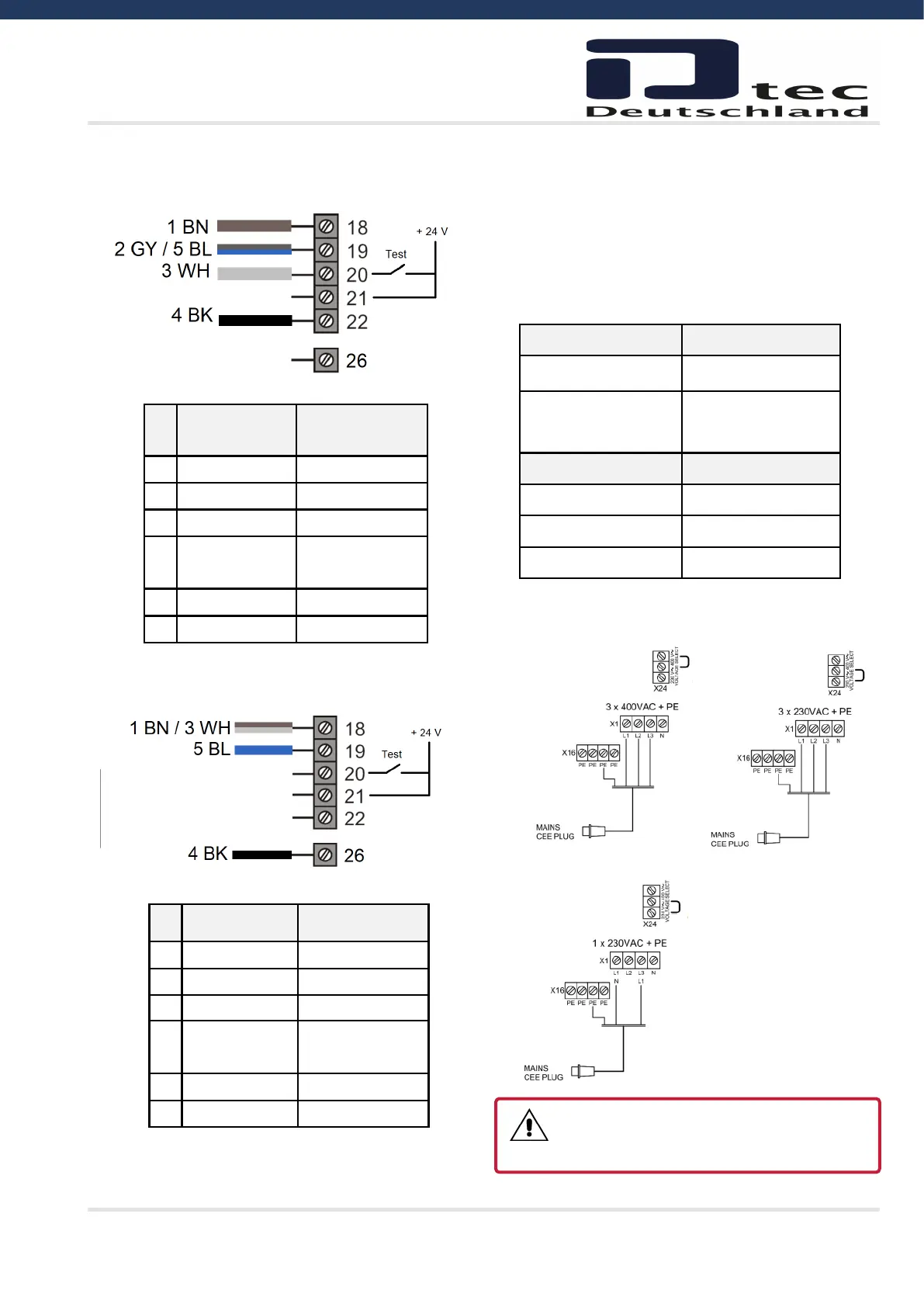

10.14 Plug-in modules
• X7 RCM434A03 RADIO RECEIVER
Plug-in module radio receiver
• X8 TRAFFIC LIGHT LAMP PCB V.1
Plug-in module traffic lights
10.15 Single phase motor
10.16 Power supply
Supply 1x230V V7E terminals
N X1: L1
L X1: L3 + N
(linked with a wire)
Motor connecon
Phase open direcon X2: U
Phase close direcon X2: V
Common N X2: W
10.13 Light curtain
P-N-P transistor
OSE connection
No
Semiconduc-
tor output
Colour
1
USP Brown
2
LO / DO Grey
3
Test input White
4
Output (PNP /
NPN)
Black
5
Ground (0 V) Blue
6
Not in use Green
No OSE output Colour
1
USP Brown
2
Not in use Grey
3
Test Input White
4
Output (OSE) Black
5
Ground (0 V) Blue
6
Not in use Green
DANGER !
It must be an insulated wire mounted in terminal X24.
