DTS XR7 WASH User Manual

11- HIDDEN MENU
For technical personnel only.
To operate this menu:
-Connect the projector to the DMX controller (DMX SIGNAL MUST BE CORRECTLY
RECEIVED)
-Reset the Xr7 Wash (reset from the display projector, not from the DMX controller!).
-While reset is working, press the MENU and ENTER keys at the same time.
Electronic calibration of the motors.
Reset EEPROM (Reset all settings. ATTENTION: by pressing this key
you must repeat all previous calibrations)
Exit from hidden menu.
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTER
Up-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTERUp-Down
ES.
ENTER
Up-DownENTER
ES.
ENTER
Up-DownENTER
ES.
ENTER
Up-Down
Up-Down
ENTER
12
Up-DownENTERUp-Down
ES.
ENTER

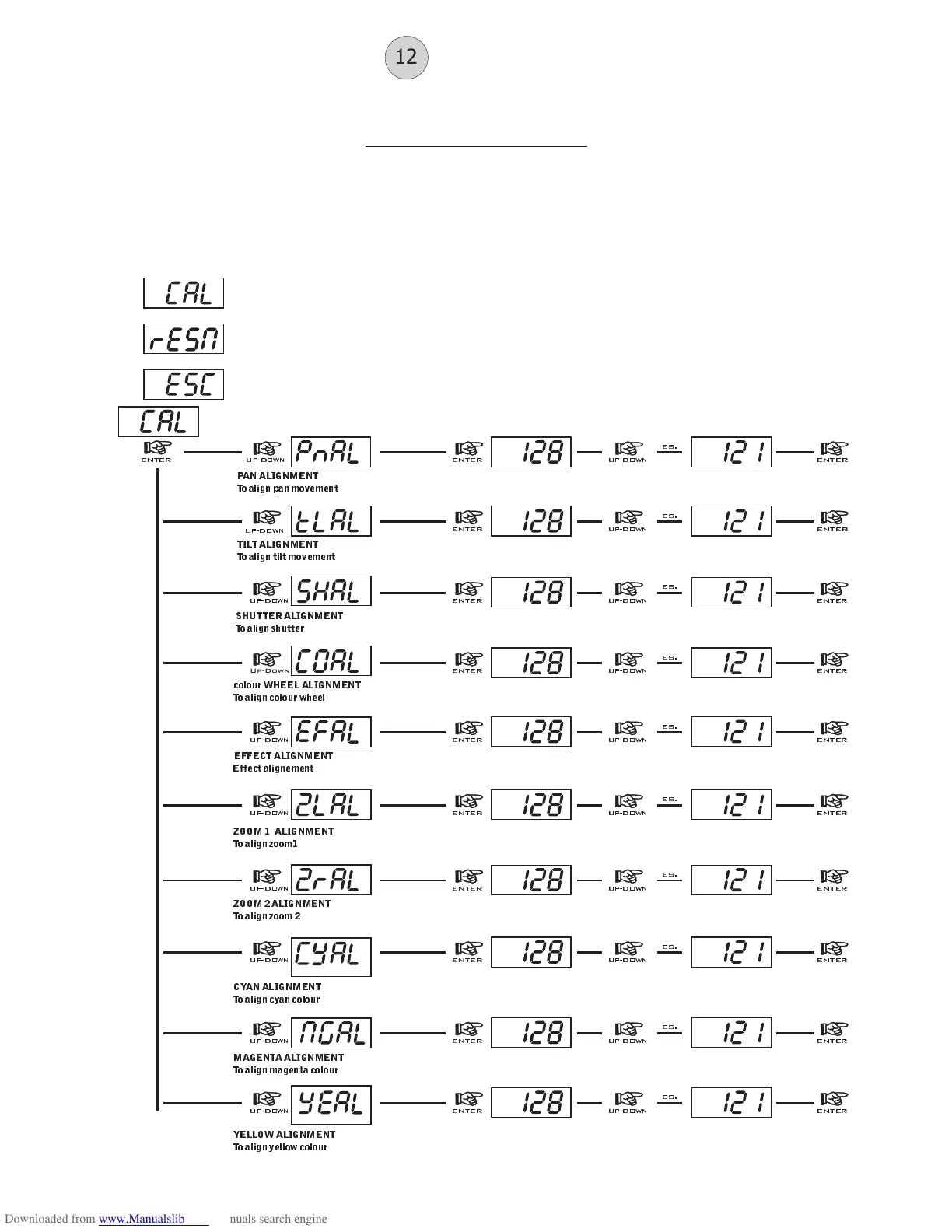

PAN ALIGNMENT
To align pan movement
TILT ALIGNMENT
To align tilt movement
SHUTTER ALIGNMENT
To align shutter
EFFECT ALIGNMENT
Effect alignement
ZOOM 1 ALIGNMENT
To align zoom1
colour WHEEL ALIGNMENT
To align colour wheel
CYAN ALIGNMENT
To align cyan colour
MAGENTAALIGNMENT
To align magenta colour
YELLOWALIGNMENT
To align yellow colour
Up-DownENTERUp-Down
ES.
ENTER
ZOOM 2 ALIGNMENT
To align zoom 2

DTS XR7 WASH Specifications

General

Brand	DTS
Model	XR7 WASH
Category	Flood Light
Language	English
