Alignment is carried out using the 3 adjusters A, B and C (white screws).
During this operation you must bring the hot-spot to the centre of the beam and flatten
it as much as possible.
The projector can operate at 230V voltage, at 50 or 60 Hz. D.T.S. default presets a
voltage of 230V at a frequency of 50Hz (barring specific requests).
XR7 may be either floor or ceiling mounted.
For floor mounting installations, the XR7 is supplied with four rubber mounting feet (B)
on the base.
For ceiling mounted installations, we suggest the use of appropriate clamps or fixings to
attach the fixture to the mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the
weight of the unit, as should any clamps used to hang it. The structure should also be
sufficiently rigid so as not to move or shake whilst the XR7 moves during its operation.
Four quarter turn fast locks placed on the base of the units allow for the fixing of
brackets that can then be fixed on to the rails with the use of C clamps or Aliscaf type
clamps.
We recommend the use of a safety cable or chain connected to the Xr7 Wash and to the
suspension truss in order to avoid the fixture accidentally falling should the main fixing
point fail. Make sure that the iron cable or chain can bear the weight of the entire unit.

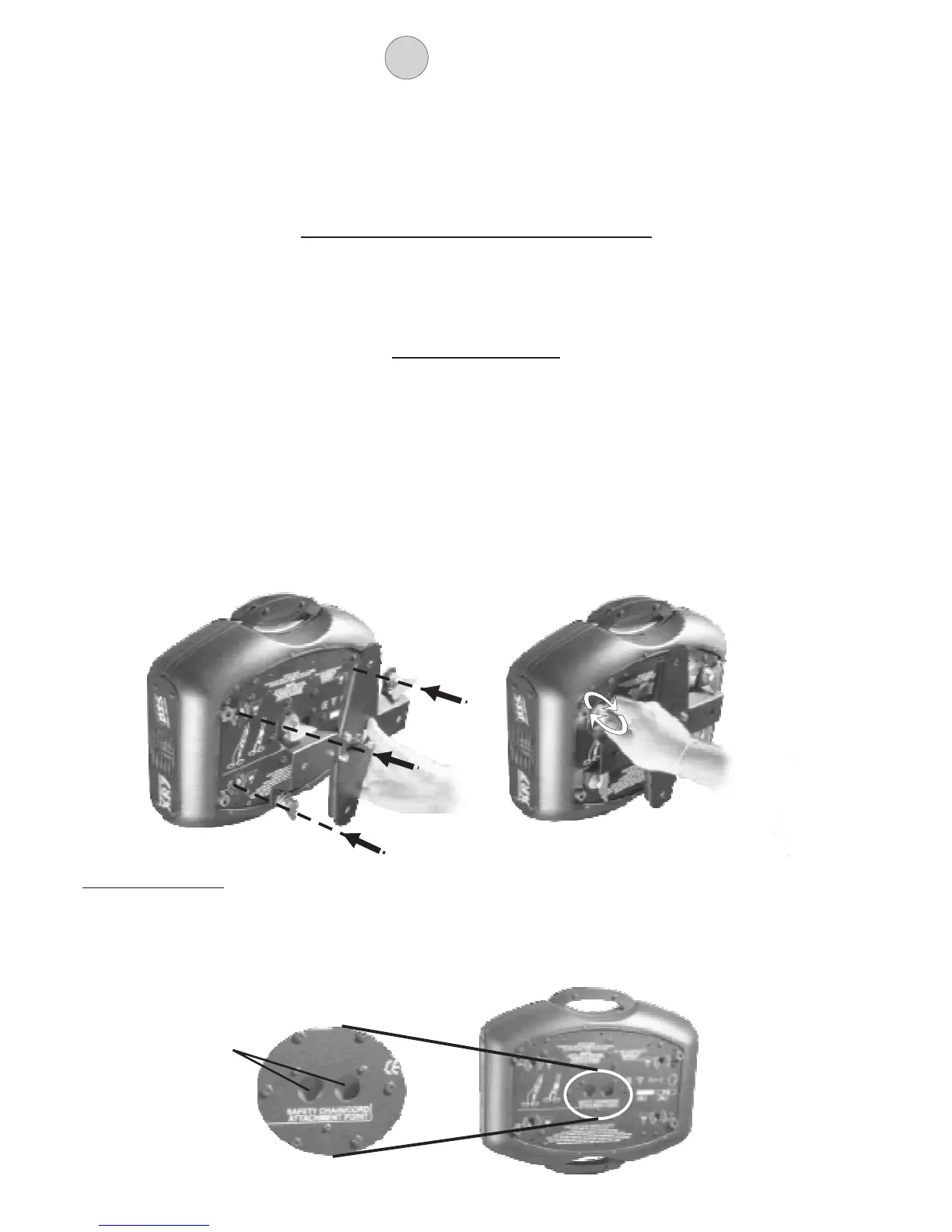

You may attach the safety chain to the two holes (A) located on the base of the fixture,
as shown in the diagram below.
