Dual ALB12 - Typical Wire Routing

6
Main Power Connections
ConnectBAT+,GNDandREMwiresaccordingly.AsuitablefuseMUSTbeinstalledonthe
BAT+leadwithin18"ofthebatteryforprotectionofthevehicle’selectricalsystem.
BATTERY
Fuse Rating
Whenreplacingthefuse,make
sure new fuse is the correct type
andamperage.Usinganincorrect
fuse could damage the amplifier.
TheALB12uses(1)15 amp ATO
style fuse.
Power/Ground Wire Size
Foroptimumperformance,useonly
12 gaugewireorlarger.Makesure
to use the same size power and
ground wire.

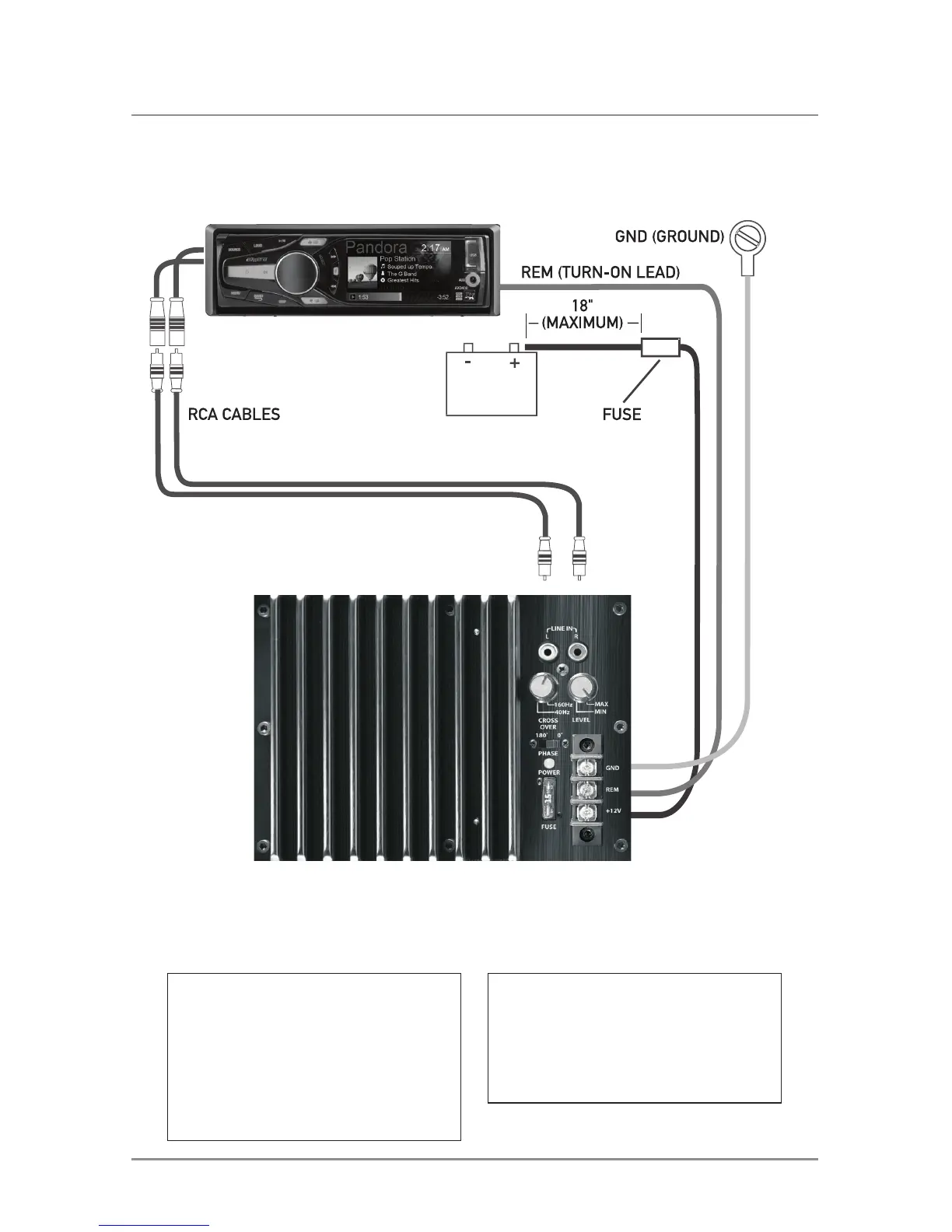

Typical Wire Routing
INSTALLATION
