DC426BT INSTALLATION 

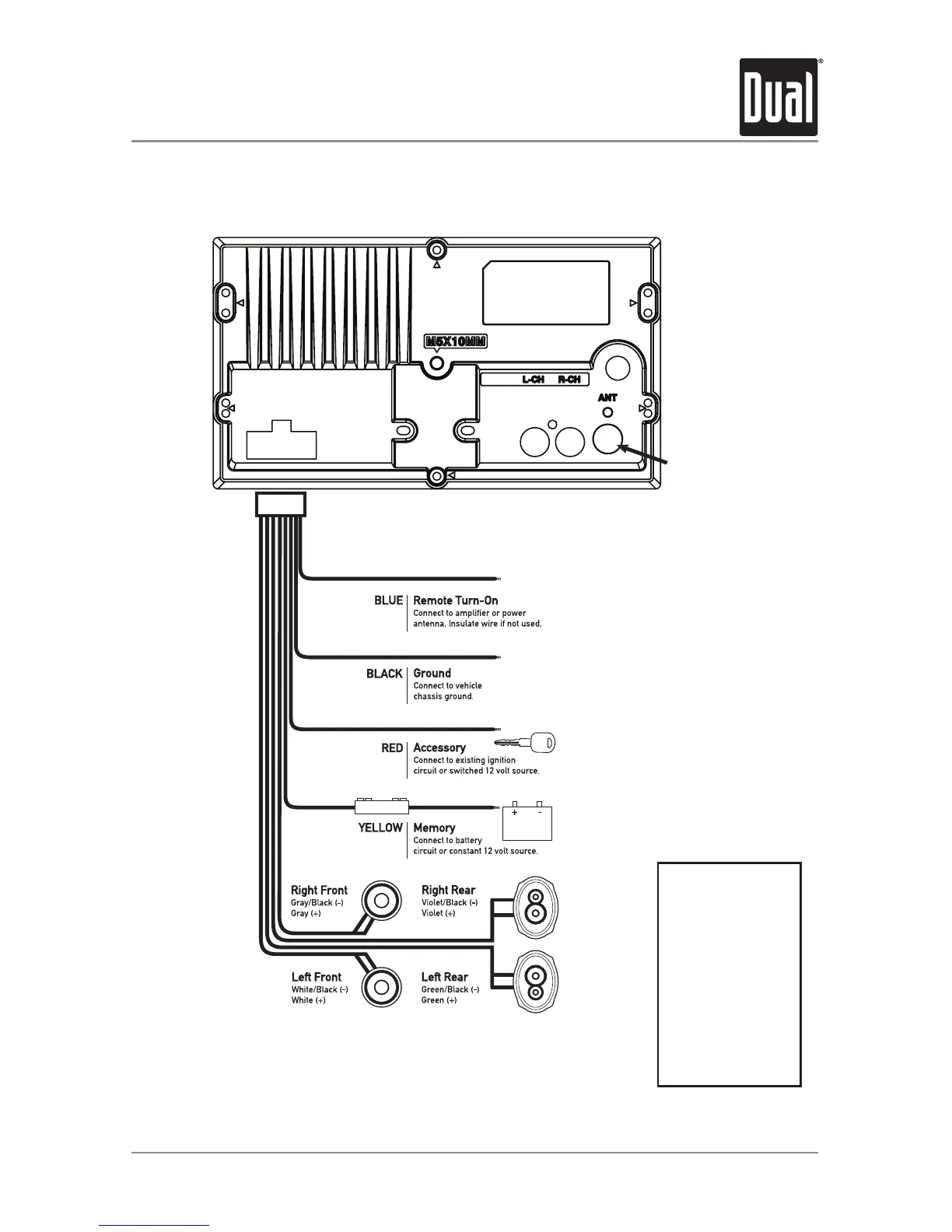

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The DC525Bi uses
one 10 amp ATM fuse
located beside the wiring
connector.
10 AMP
AGC Fuse
Antenna
Connector
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The DC426BT uses
one 10 amp ATM fuse
located beside the wiring
connector.
