Dual DV622 - Wiring Diagram; Inputs and Outputs Overview

5

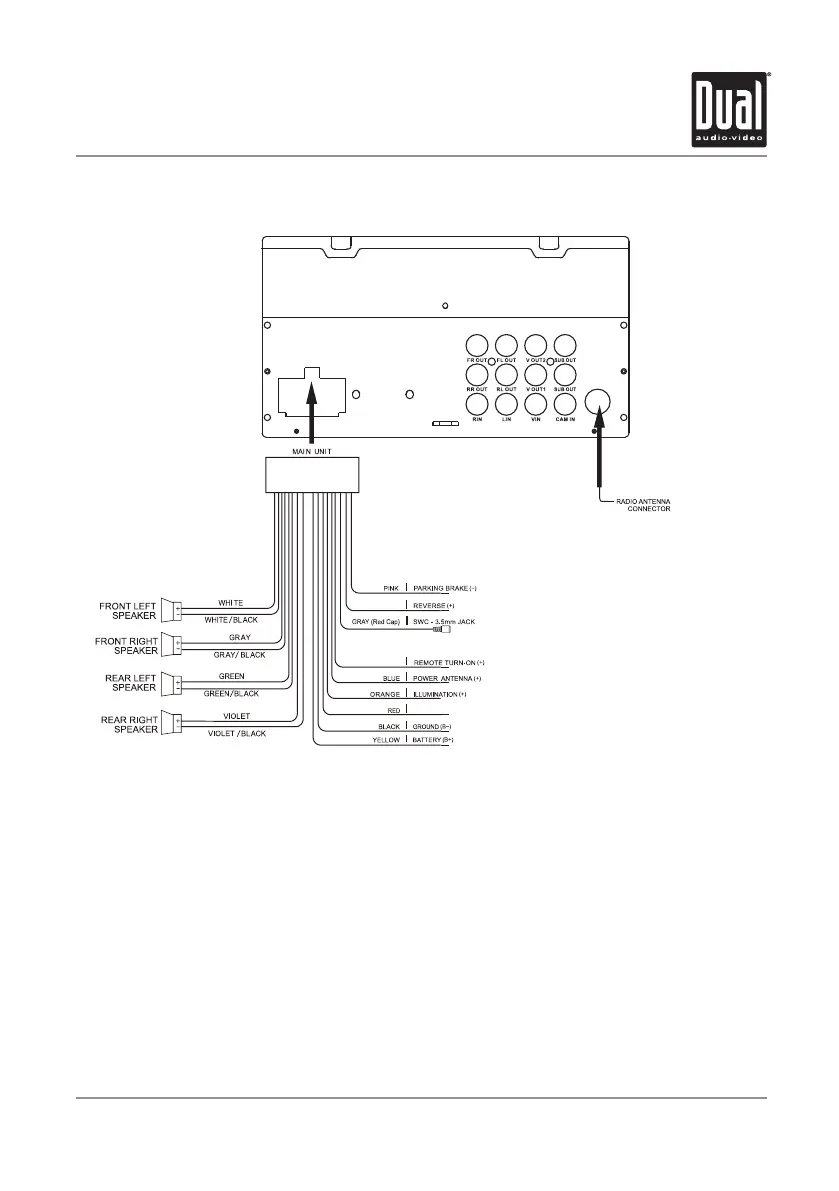

Wiring Diagram - Inputs/Outputs
DV622 INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Rear camera input
A rear view camera (not included) can be used with the Camera input.
Steering Wheel Control (SWC) Inpu
Violet/White
Blue/White
t
(Compatible with most SWC adapters)
IGNITION / ACC 12V(+)
