3
MXD136BT INSTALLATION

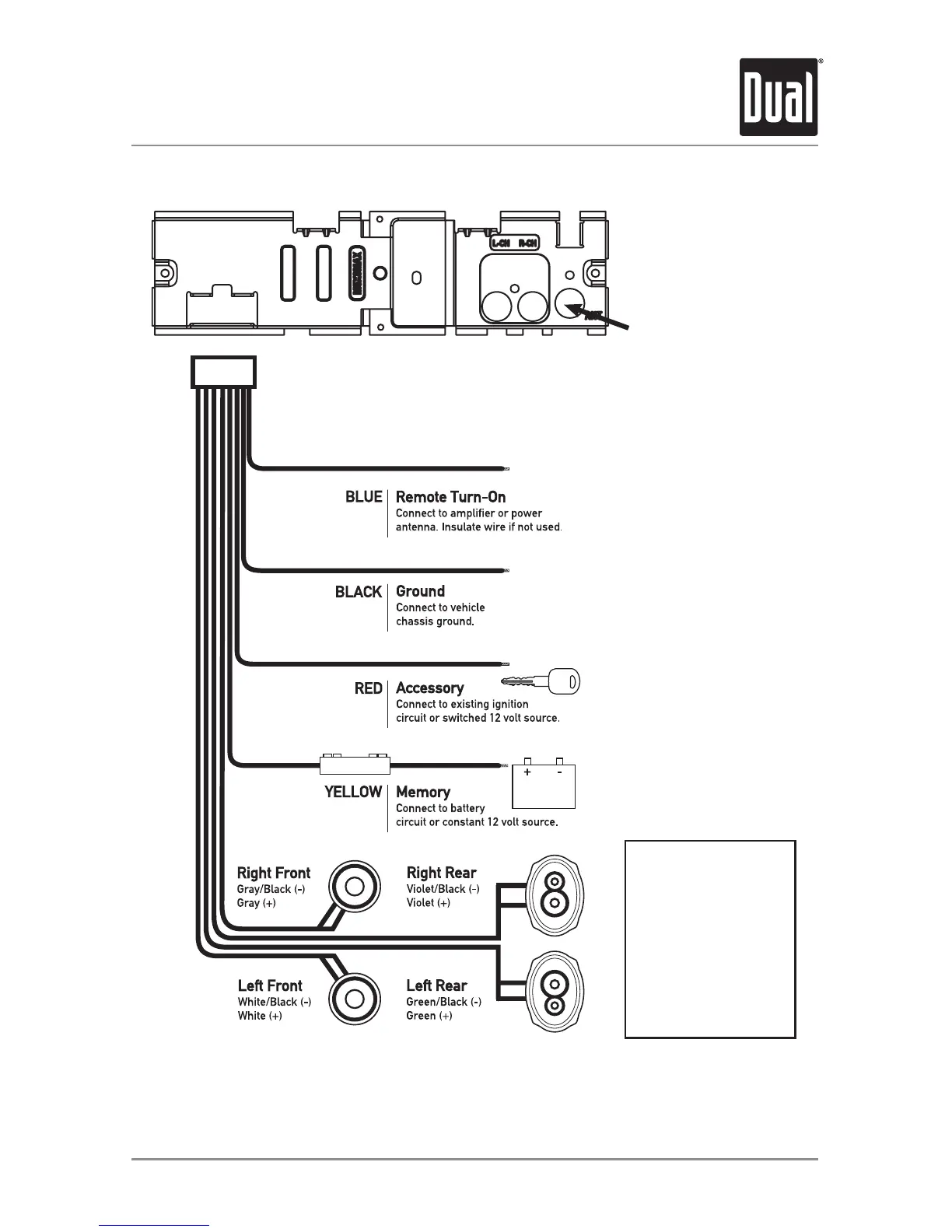

Wiring Diagram
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse could
damage the radio.
The unit uses one
10 amp AGC fuse located
in-line.
Antenna
Connector
10 AMP
AGC Fuse
