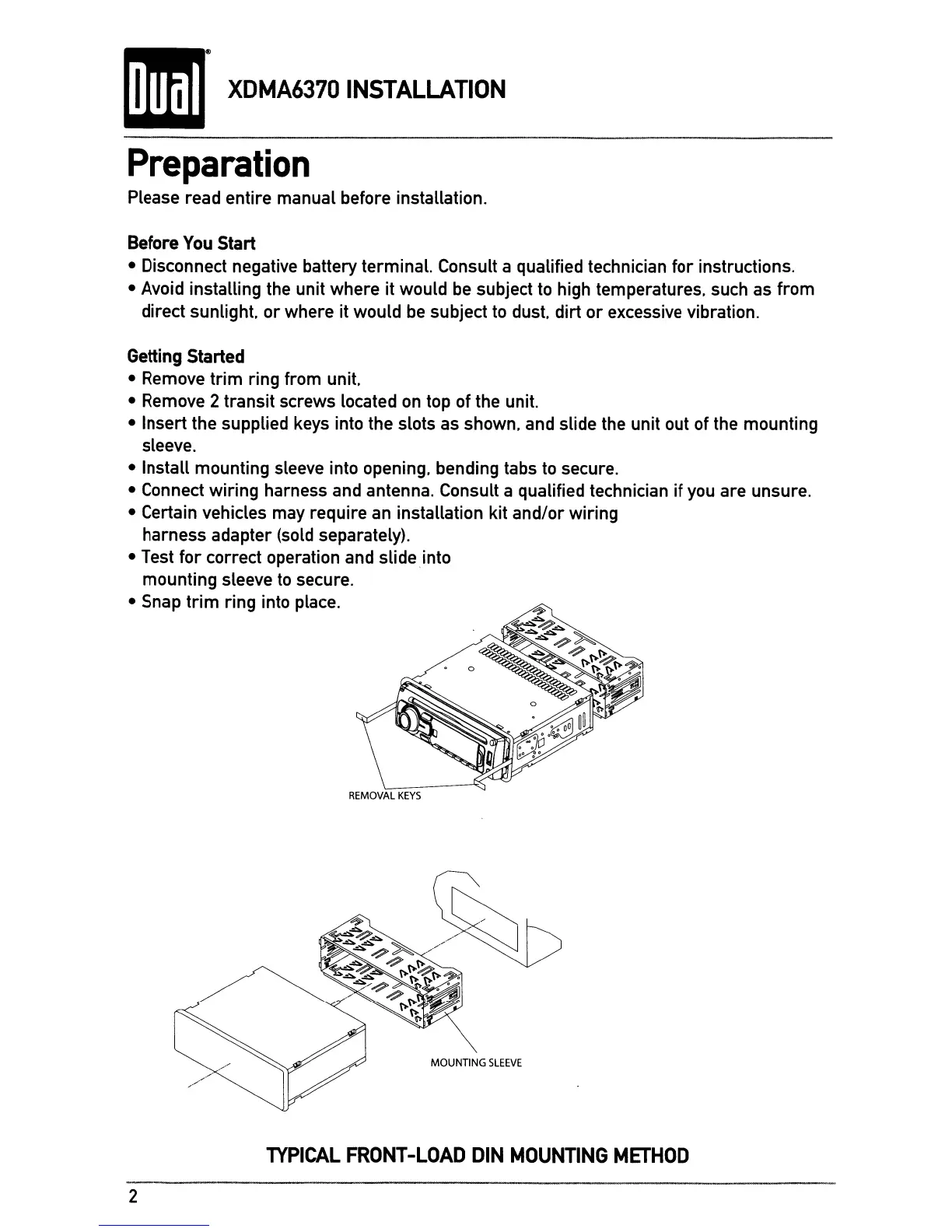

XDMA6370
INSTALLATION
Preparation
Please read entire manual before installation.
Before
You
Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would
be
subject to high temperatures. such as from
direct sunlight. or where it would
be
subject
to
dust. dirt
or
excessive vibration.
Getting Started
• Remove
trim
ring from unit.
• Remove 2 transit screws located
on
top of the unit.
• Insert the supplied keys into the slots as shown. and slide the unit out of the mounting
sleeve.
• Install mounting sleeve into opening. bending tabs
to
secure.
• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation kit and/or wiring
harness adapter (sold separately).
• Test for correct operation and slide into
mounting sleeve
to
secure.
• Snap
trim
ring into place.
REMOVAL
KEYS
MOUNTING
SLEEVE
TYPICAL
FRONT-LOAD
DIN
MOUNTING
METHOD
2
