XIA SERIES INSTALLATION
Fuse Rating
When replacing fuses, make sure new fuse
is the correct type and amperage. Using an
incorrect fuse could damage the amplifier.
XIA2340 30 amp & 2 amp ATO x 1 each
XIA2460 40 amp & 2 amp ATO x 1 each
Power/Ground Wire Size
For optimum performance, use only the wire
size listed below (minimum) or larger.
XIA2340 10 gauge
XIA2460 8 gauge
illuminite Circuitry 18 gauge
Main Power Connections
Connect +12V, GND and REM wires accordingly. A suitable fuse MUST be installed on the
+12V lead within 18" of the battery for amplifier power wire protection.

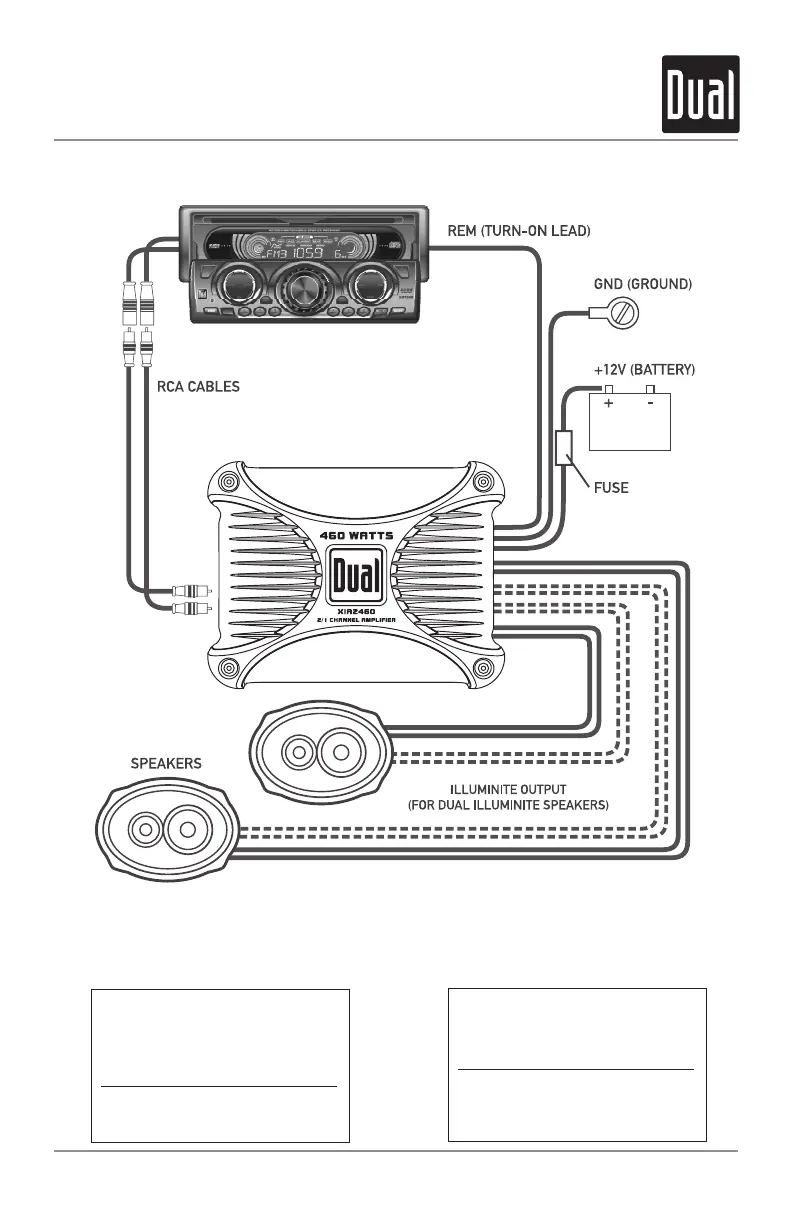

Typical Wire Routing
