Dual XPR540 User Manual

6
Fuse Rating
Whenreplacingfuses,makesurenewfuse
is the correct type and amperage. Using an
incorrect fuse could damage the amplifier.
XPR52230ampATOx1
XPR54025ampATOx2
Main Power Connections
Connect+12V,GNDandREMwiresaccordingly.AsuitablefuseMUSTbeinstalledonthe
+12Vleadwithin18"ofthebatteryforprotectionofthevehicle’selectricalsystem.

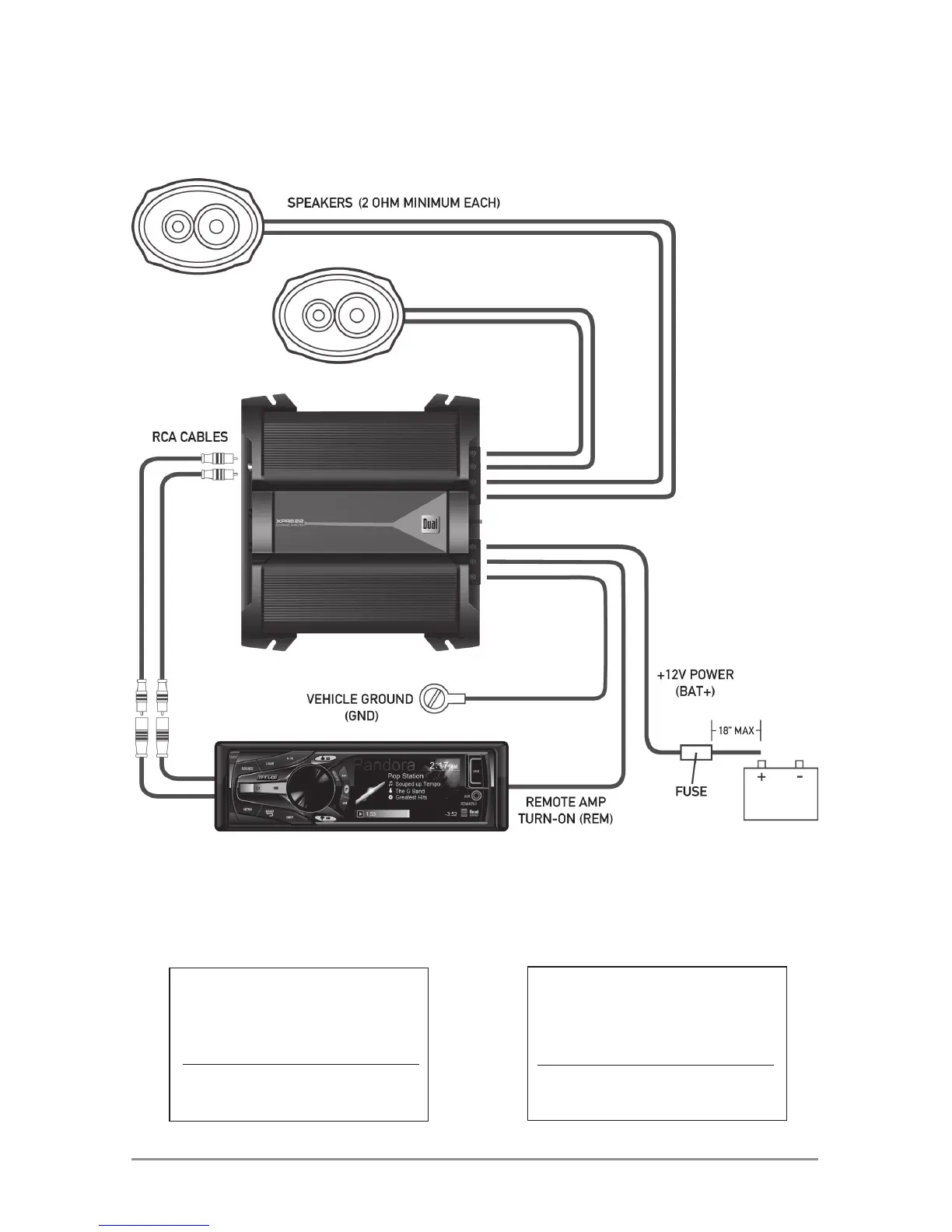

Typical Wire Routing
Power/Ground Wire Size
Foroptimumperformance,useonlythewire
sizelistedbeloworlarger.Makesuretouse
thesamesizepowerandgroundwire.
XPR52210awg
XPR5408awg

Dual XPR540 Specifications

General

RMS Power Output (2 Ohms)	75W x 4
Bridged Power Output (4 Ohms)	150W x 2
Frequency Response	20 Hz - 20 kHz
Signal to Noise Ratio	>90 dB
THD at Rated Power	<0.05%
Bass Boost	0-12 dB
Crossover Slope	12 dB/octave
Input Sensitivity	200mV to 6V
RMS Power Output (4 Ohms)	50W x 4
RMS Power @ 4 Ohms	50W x 4
