Dual XVM279NAV - Wiring Diagram - Inputs;Outputs

4

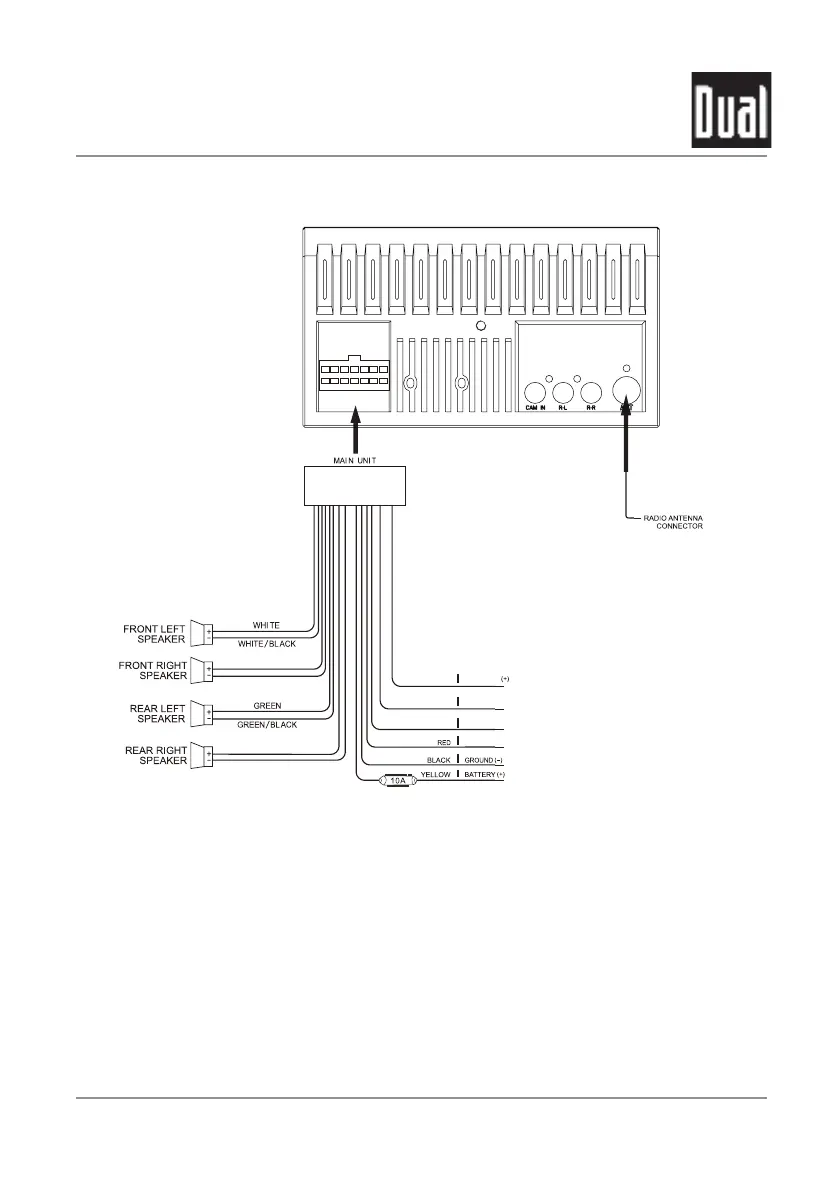

Wiring Diagram - Inputs/Outputs
XVM279NAV INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
REVERSE
GRAY
GRAY/BLACK
ACC 12V (+)
TFT DIMMER (+)
VIOLET
VIOLET/BLACK
AMP/ANT(+)BLUE
ORANGE
GREEN/WHITE
