06. Operation & Usage

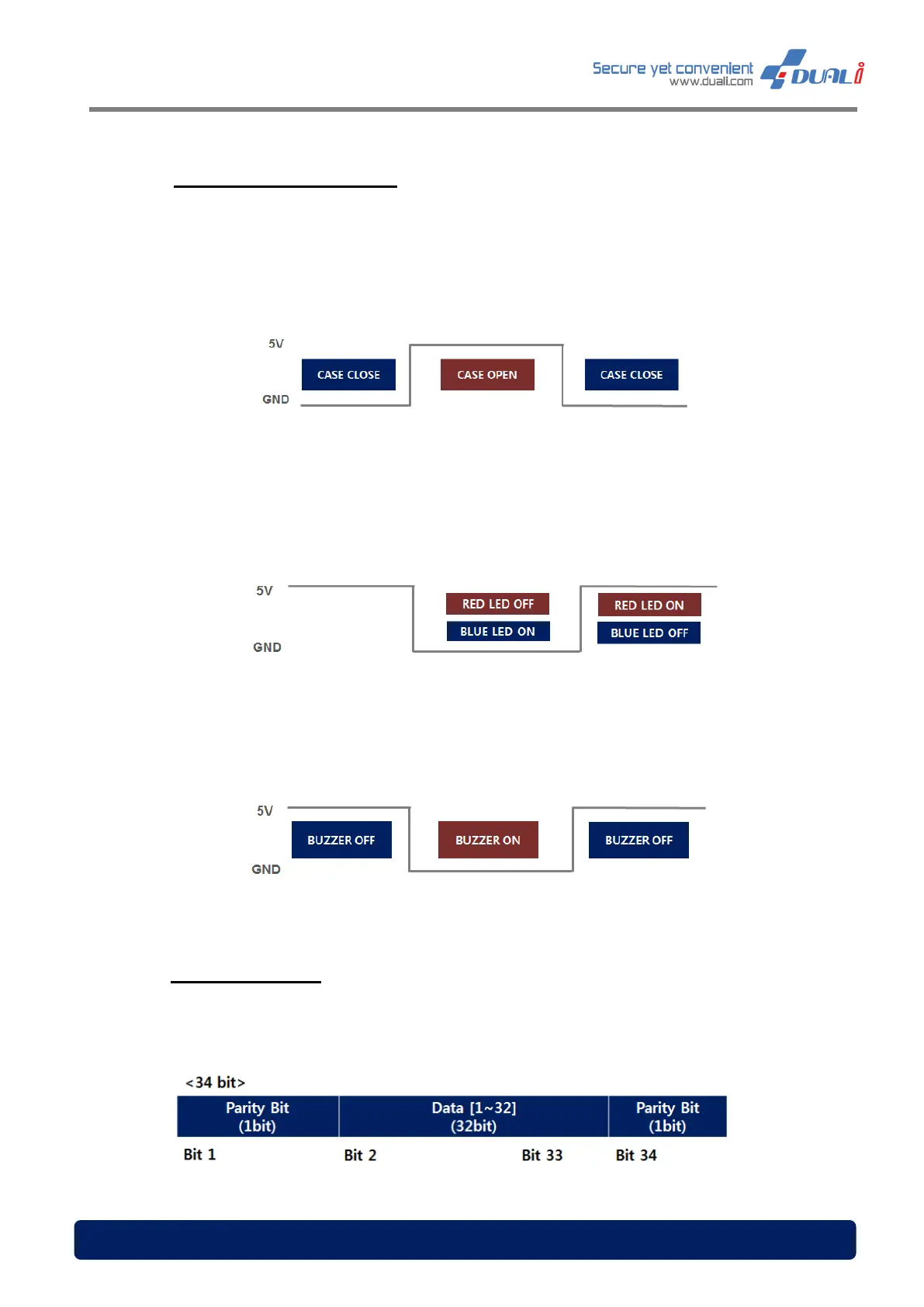

Tamper (TAMP):
Reader makes alarm when its CASE is forced to open. It also makes TAMPER signal
to access controller. In case of closed CASE, TAMPER line (VIOLET) shows 0V and
otherwise (open) shows 5V.
LED Control:
Reader turns on RED LED when LED Signal (BROWN) with 0V. In case of 5V, BLUE
LED will be on.
Buzzer Control:
Reader makes beep sound when BEEP Signal (YELLOW) with 0V.
07. Output Format
[Data format]
- Data format can be decided by setting. (Refer to chapter 10)
-
