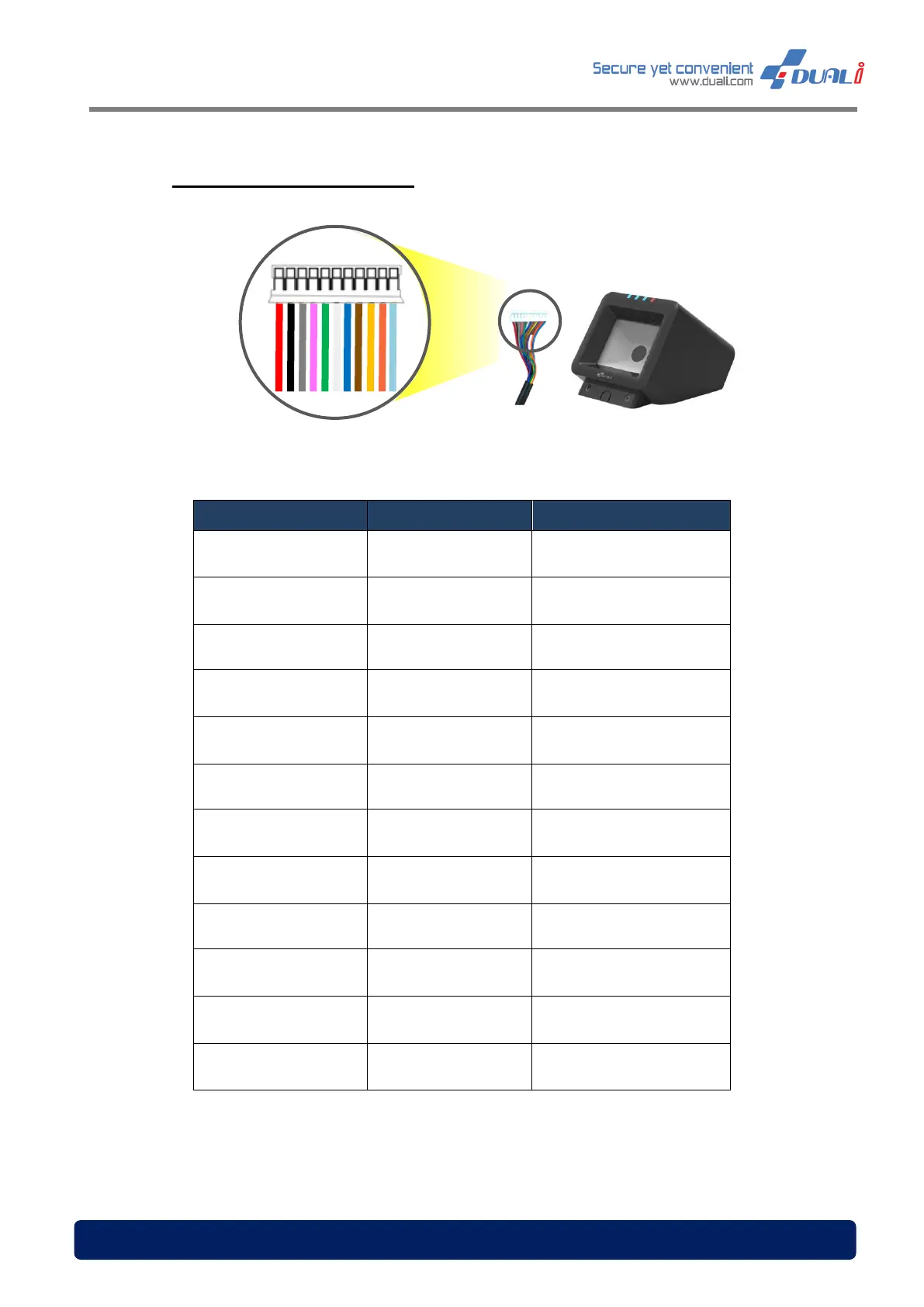

05. Connection Diagram
PIN NAME
COLOR
PIN NUMBER
PWR_IN
RED
1
PWR_GND
BLACK
2
RS232_RX
GRAY
3
RS232_TX
PINK or JADE
4
WGD_D0
GREEN
5
WGD_D1
WHITE
6
PWR_GND
BLUE
7
LED
BROWN
8
BEEP
YELLOW
9
TAMPER
VIOLET
10
RS485+
ORANGE
11
RS485-
SKYBLUE
12
