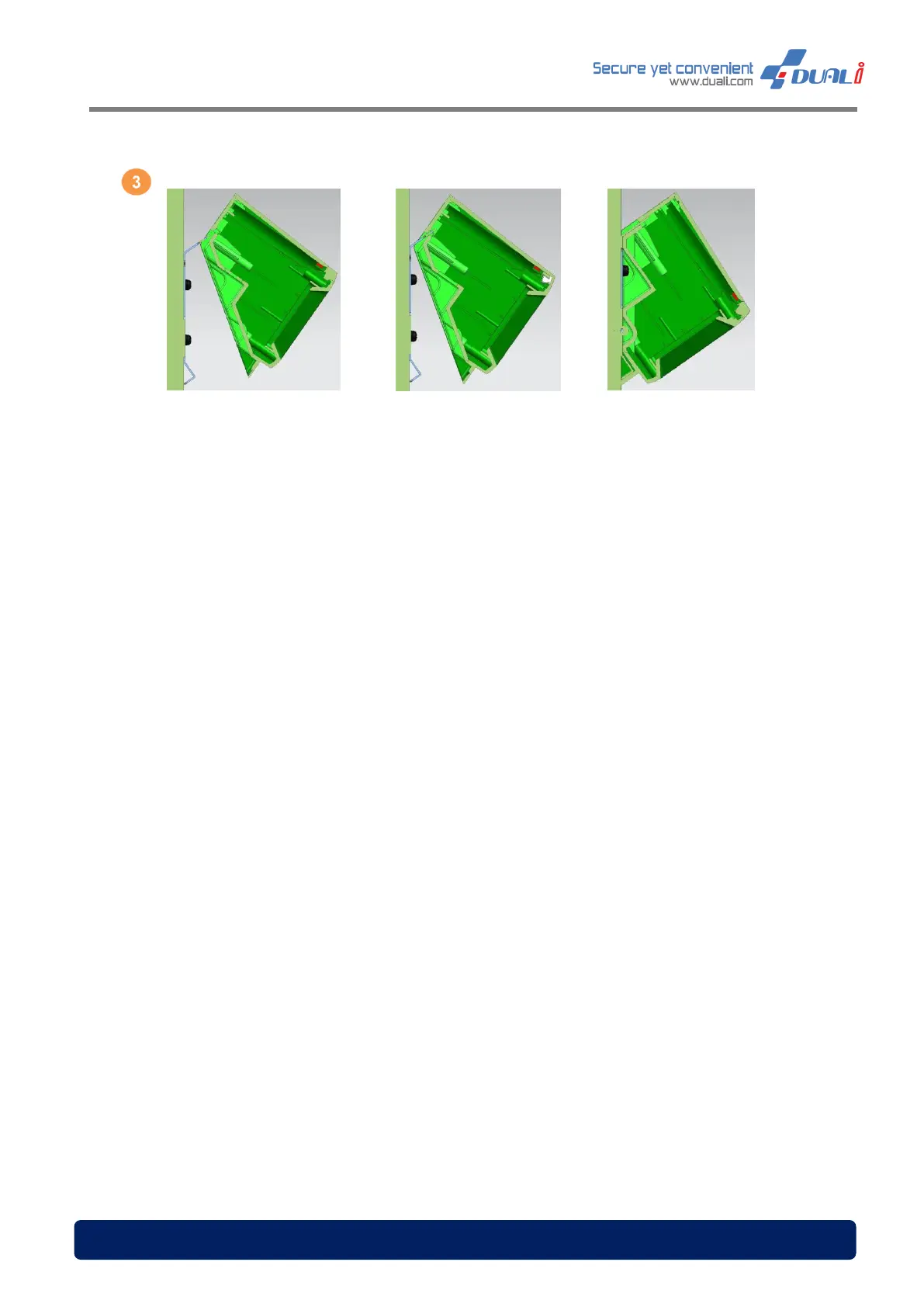

< Side View>
Tilt the device slightly and insert to the wall mount from the top as above step. Fix it
tightly with 3*4 flat head machine screw.
※ Caution
- Do not push the bracket too hard when fixing it to the wall.
- Screw has to be selected depending on the wall’s material and condition
- Place the reader to flat panel between the wall mount bracket and the wall.
It could cause a problem to assemble the device if the bracket is bent.
- Card reading distance can be short if the wall is made of steel or metal.
