08.2 LED option setting

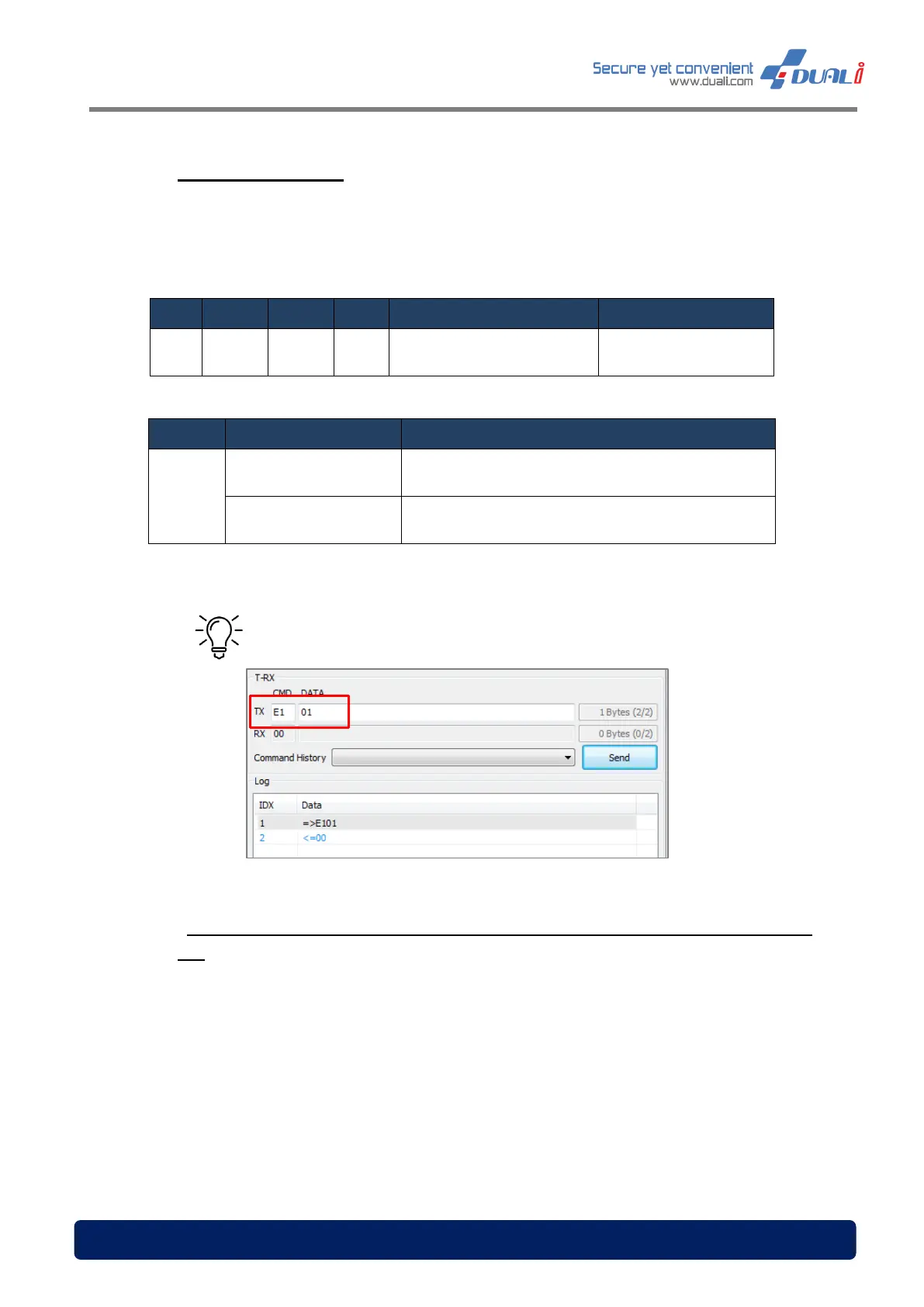

Following is the communication frame for LED color setting. Since it is saved in flash memory
after the first setting, the reader does not need to be set again.
(115,200bps, 8 data, no parity, 1 stop bit)
08.3 Mifare KEY type, Block number, ID position, Wiegand format option
set
Following is the communication frame for Mifare KEY type, Mifare block number, Mifare ID
position, Wiegand format option set. Since it is saved in flash memory after the first setting,
the reader does not need to be set again.
(115,200bps, 8 data, no parity, 1 stop bit)
STX
LENH
LENL
CMD
DATA[0]
LRC
0x02
0x00
0x02
0xE1
0x00 > BLUE LED Default
0x01 > RED LED Default
LENH^LENL ^ CMD ^
DATA[0]
DATA[0]
State
Description
Bit0
00
Default LED BLUE
01
Default LED RED
Tip – To change the LED option to RED LED
