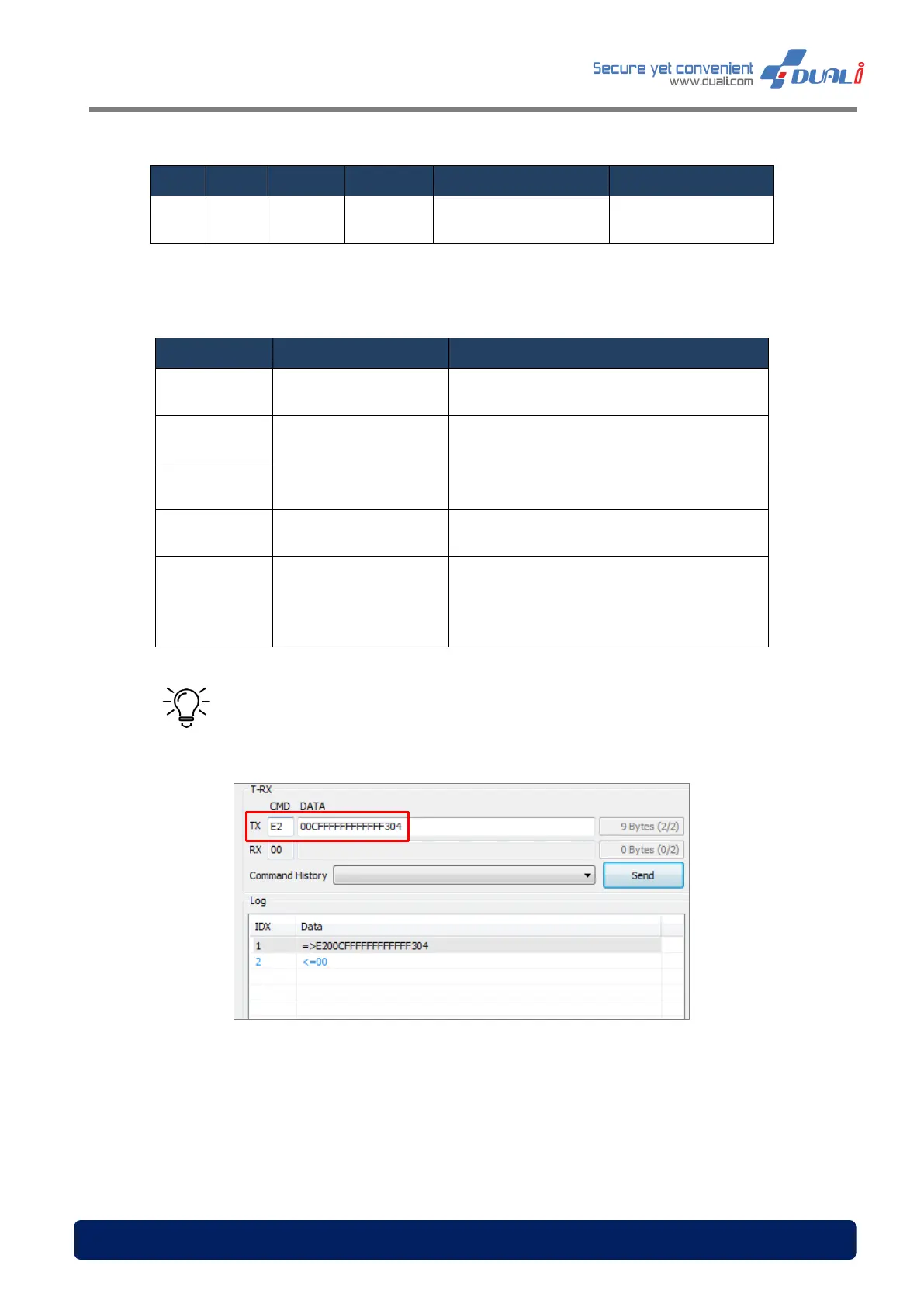

DQ-MINI User Manual, Version: 1.00
www.duali.com 15
※ Wiegand 34 Bit, 48 Bit, 66Bit is following wiegand parity option of command 0xE0 bit2
STX
LENH
LENL
CMD
DATA[0..9]
LRC
0x02
0x00
0x0B
0xE2
DATA[0] ~ DATA[9]
LENH^LENL ^ CMD
^ DATA[0]^..^DATA[9]
DATA[x]
State
Description
DATA[0]
Mifare KEY type
0: A KEY
1: B KEY
DATA[1]
Mifare Block Number
Mifare Block Number: 0 ~ 0xFF
(0 = UID)
DATA[2..7]
Mifare Key
Default Key is 0xFFFFFFFFFFFF
DATA[8]
Mifare ID Position
ID Position
DATA[9]
Wiegand Length
Wiegand Data length:
0x04  Wiegand 32bit
0x07  Wiegand 56bit
Else anything: Wiegand 64bit
(Refer to 9.1 to set Parity option)
(^: exclusive oring)
Tip- To set Mifare Reading condition as
1) A KEY 2) 12 3) FFFFFFFFFFFF 4) 3 5) Wiegand 32 bit
