Duali DQ-MINI - Wiegand Option Set (Parity, Reverse)

DQ-MINI User Manual, Version: 1.00
www.duali.com 13

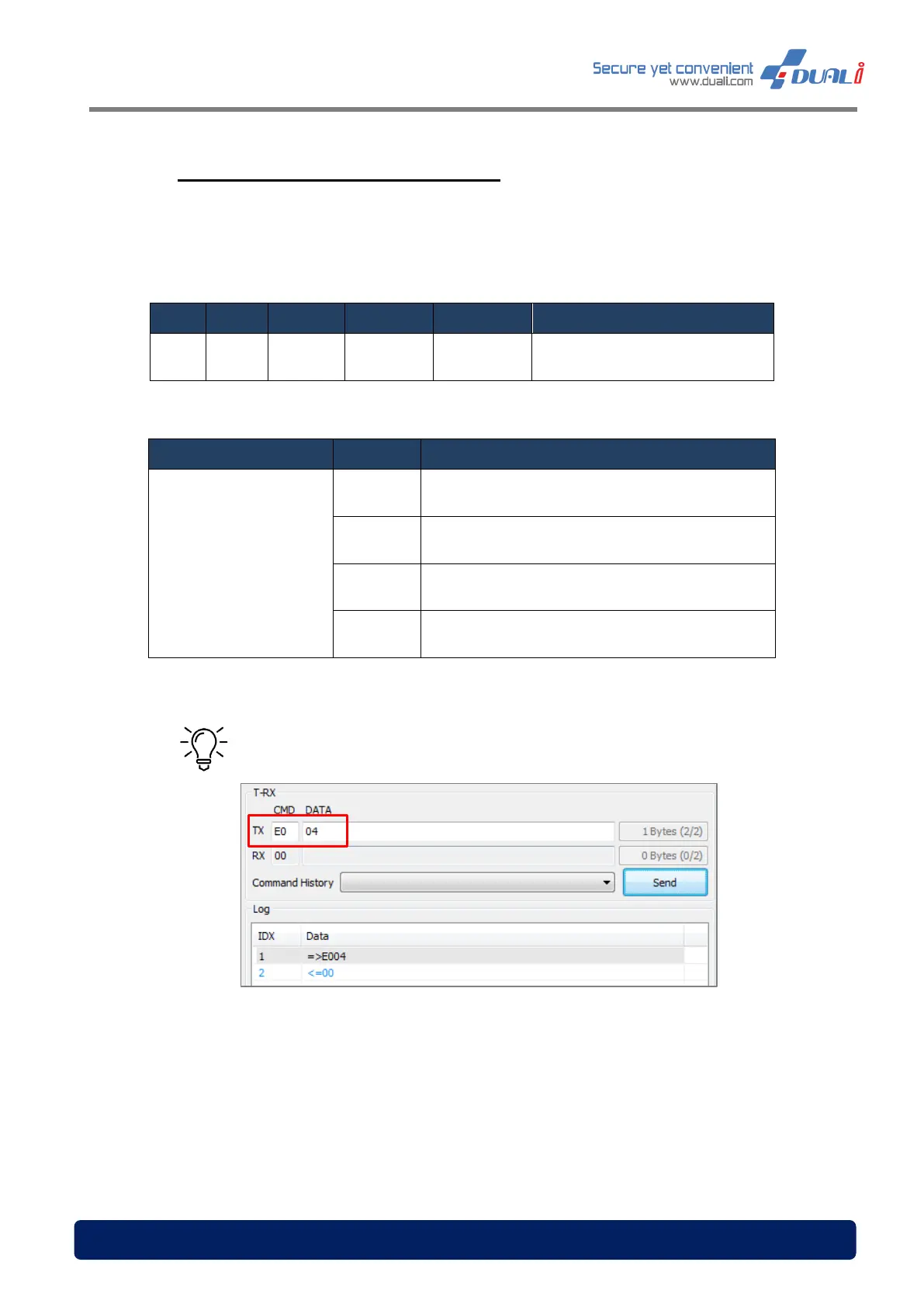

08.1 Wiegand option set (Parity, Reverse)
Following is the communication frame for wiegand option setting. Since it is saved in flash
memory after the first setting, the reader does not need to be set again.
(115,200bps, 8 data, no parity, 1 stop bit)
STX
LENH
LENL
CMD
DATA
LRC
0x02
0x00
0x02
0xE0
DATA[0]
LENH^LENL ^ CMD ^ DATA[0]
DATA[0]
State
Description
Bit0 - RFU
Bit1(0x02)- Reverse ON
Bit2(0x04)- Parity OFF
Bit3..7 – RFU
00
Parity OFF / Reverse OFF
02
Parity OFF / Reverse ON
04
Parity ON / Reverse OFF
06
Parity ON / Reverse ON
(^: exclusive oring)
Tip – To change the Wiegand option to Parity ON / Reverse OFF
