Ducati 999R User Manual

E
73

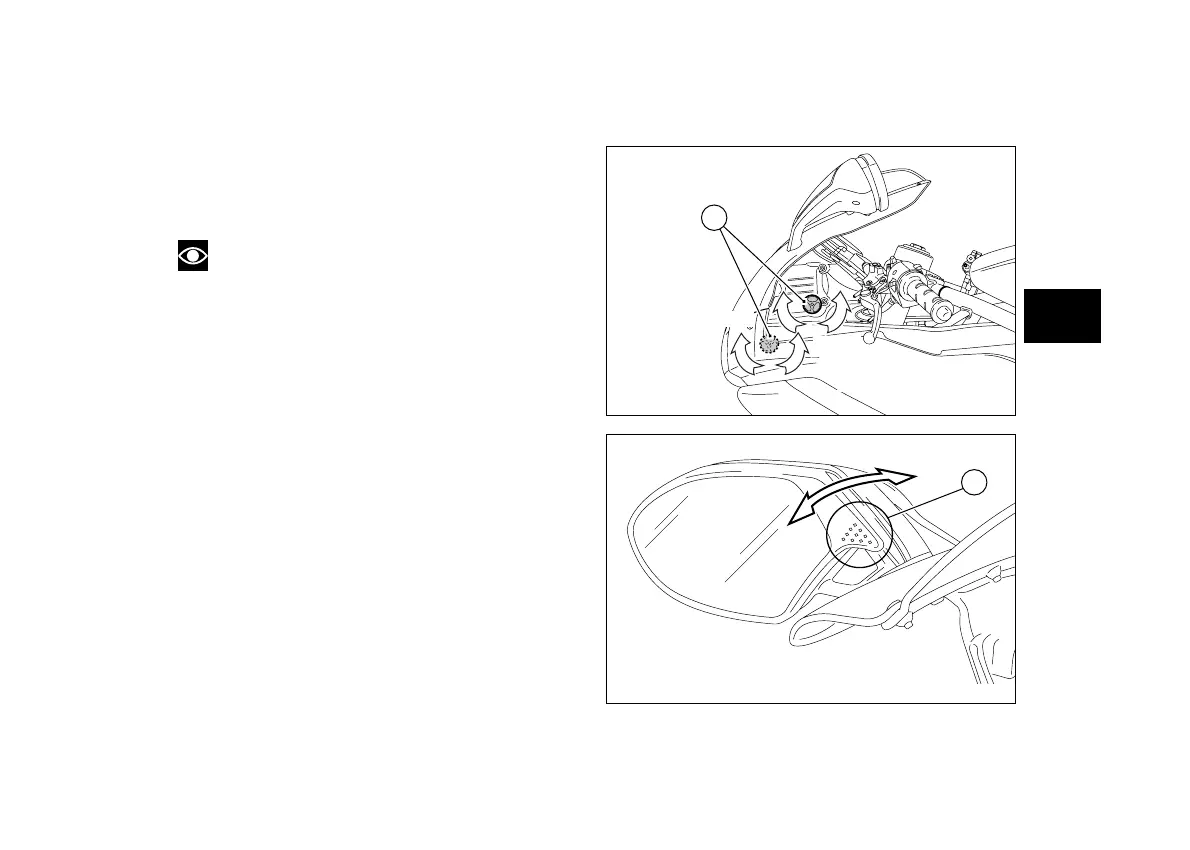

The vertical position of the headlamp is set by means of
the adjusting knobs (1, fig. 75) on the left side of the
headlamp. Rotate the knobs clockwise to lower the beam
or anti-clockwise to raise it.
Note
To gain access to the lower knob, you must first
remove the headlamp fairing as described on page 56.
Rear view mirror adjustment (fig. 76)
The rear view mirror is adjusted manually by pressing at
position (A).
DOWN
UP
1
fig. 75
A
fig. 76

Ducati 999R Specifications

General

Transmission	6-speed
Frame	Tubular steel trellis
Bore x Stroke	104 x 58.8 mm
Power	140 hp (104 kW) @ 9750 rpm
Torque	108 Nm @ 8, 000 rpm
Rear Suspension	Öhlins fully adjustable monoshock
Front Brakes	Dual 320mm discs, 4-piston calipers
Rear Brakes	240 mm disc, 2-piston caliper
Fuel Capacity	15.5 liters
Fuel Injection	Electronic fuel injection
Front Suspension	Öhlins 43 mm fully adjustable upside-down fork
